QTY4-15
ZCJK
20set / Month
20Days
57600pcs/8hours
4T
15-25sec
1 set
| Quantity: | |
|---|---|

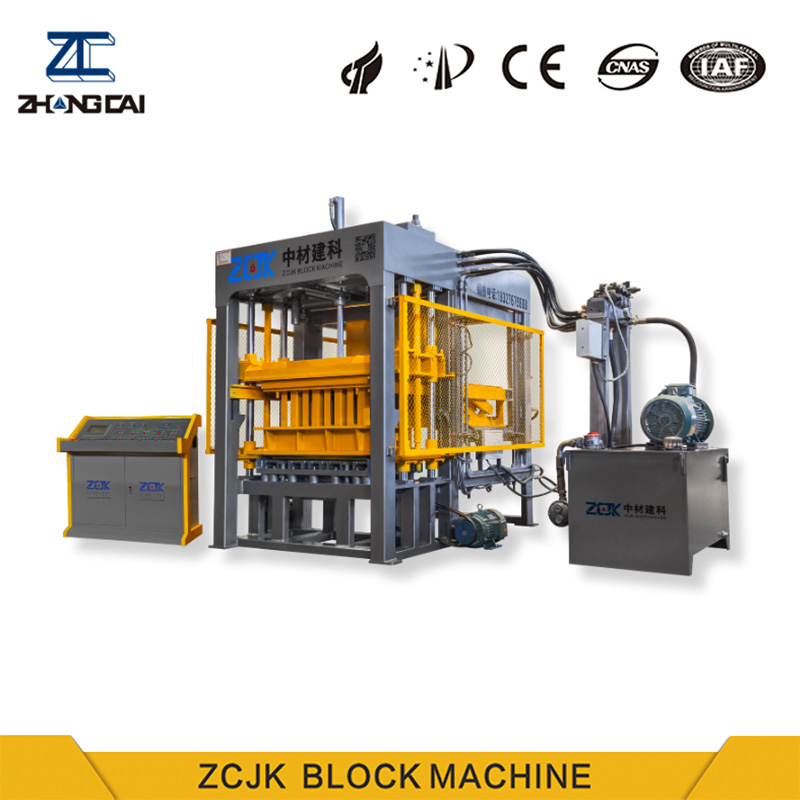

QTY4-15 is one of our company hot-selling automatic hydraulic block making machine. The hydraulic power system of this machine is very reliable and can produce a variety of bricks. The bricks produced have beautiful appearance, excellent quality, high density, more wear resistance, long life and high strength.
Main Parameter:
Pallet size | 1020x550mm | Pallet maxmum forming area | 970x500mm |
Forming height | 50-200mm | Cycle time | 15-25sec |
Type of vibration | Dynamic-static table | Excitation force | 68KN |
Total power | 28kw | Total weight | 4T |
Detail Items:
Item | Quantity | Item | Quantity |
QTY4-15 brick making machine | 1 | Automatic Brick conveyor | 1 |
Automatic pallet feeder | 1 | Hydraulic unit | 1 |
PLC Control system | 1 | Belt Conveyor | 1 |
JS500 Mixer | 1 | Free Mould | 1 |
Product Advantages
The electronic system uses PLC program control and display from Siemens,and it can be operated automatically,semi-automatically and manually.It can work automatically round and round,the control system is also equipped with input devices and output devices,safe work control equipment,fault diagnosis device and remote monitoring system.
The main hydraulic elements and seals are imported from Taiwan and Japan. The hydraulic elements use high-performance dynamic proportional valve, which can regulate the oil and pressure according to different requirements, so it can control the process operation with exact precision.
The frame steel of this block making machine is cast with high manganese steel, the frame has high precision, high strength and a service life of more than 10 years. In addition, the frame of this machine is welded with a special welding process. Overall, this block making machine has good rigidity, durability and strong earthquake resistance.
The cycle time of QTY4-15 block making machine is very short (within 15 seconds), that is, this block making machine is with high efficiency.
This block making machine-machine applies table vibration plus pressing when making blocks. The material feeding machine works reciprocatingly in a oriented dirction to shorten the cycle time.
QTY4-15 block making machineintegrates the technology of electronic, hydraulic and mechanical, each process is interlocked.
The platform feeder of this machine which makes the machine apllies crank-slide structure which transfers the crank-turning motion of circular plate into a straight line which reciprocates the motion of platform feeder, so the machine will run smoothly.
Capacity list:
Block/Brick Type | Brick Dimensions | Pcs/pallet | Capacity/8-hour shift |
Standard brick size | 240x115x53mm | 30pcs | 57600pcs/58m3 |
Paving Brick size | 200x100x60mm | 16pcs | 23040pcs/461m3 |
Muliti hole brick size | 240x115x90mm | 14pcs | 23520pcs/84m3 |
Hollow block size | 400x200x200mm | 4pcs | 6720pcs/95m3 |
The machine produces high quality bricks with low waste rate. The machine employs integrated electronic technology, hydraulic system. And each program can be locked together, so the whole process is connected smoothly.
The overall cast steel is durable and beautiful in appearance.
The upper and lower slider are made of thick plates. The column sleeve and slider are connected by screw, which makes it easy to change the copper bushing.
1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.
2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.
3. ZCJK Group has 3 dedicated after-sales teamscomposed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.
4. We have two factories in China, the Quanzhou production base and the Wuhan headquarters. We also have a branch in Hong Kong.
5. Our R&D base is in Beijing, and free training is available.
6. Our brick making machines have been exported to more than 103 countries.
7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.
8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
