QTY4-18
ZCJK
20set / Month
20Day
41600pcs/8hours
4.5T
20-25sec
1 set
| Quantity: | |
|---|---|

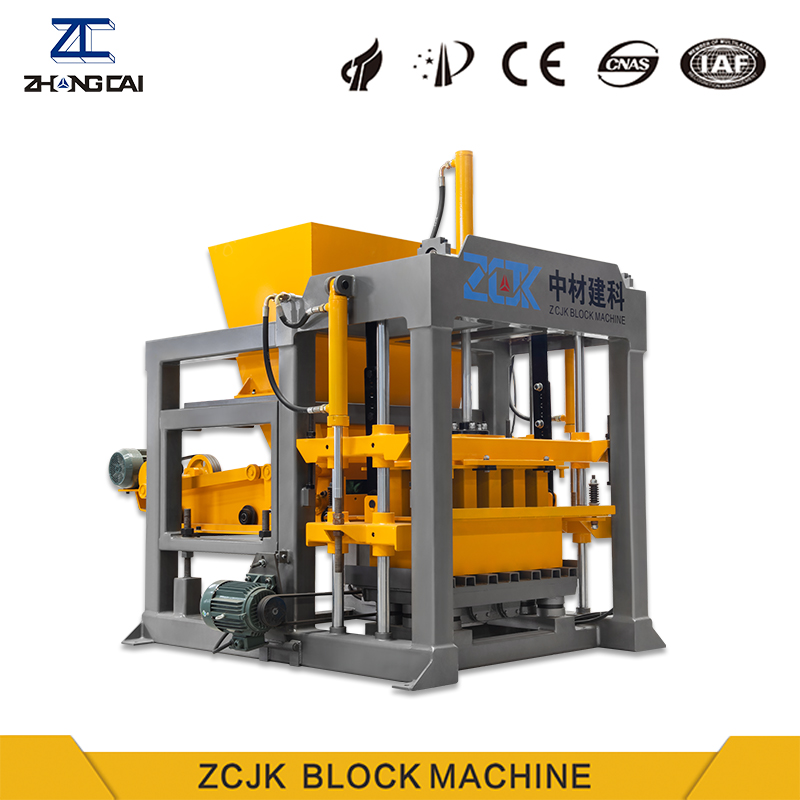

Looking for a cost-effective solution to boost your brick production? Our affordable interlocking brick machine for sale is designed to meet the needs of small and medium-sized enterprises. With advanced features like a JW500 mixer, automatic brick stacking, and a powerful vibration system, this machine offers unmatched efficiency and versatility.
Technical Parameter:
Pallet size | 880x550mm | Pallet maxmum forming area | 820x510mm |
Forming height | 50-200mm | Cycle time | 20-25sec |
Type of vibration | Vibration | Excitation force | 60KN |
Total power | 32kw | Total weight | 4.5T |
Detail Items:
Item | Quantity | Item | Quantity |
QTY4-18 Brick Machine | 1 | Brick conveyor | 1 |
Pallet feeder | 1 | Belt Conveyor | 1 |
JW500 Mixer | 1 | Control system | 1 |
Automatic stacker | 1 | Free Mold one set | 1 |
Free Mold one set | 2 |
Complete Production Line for Maximum Efficiency:Our interlocking brick machine comes equipped with a complete production line, starting from the JW500 mixer. The belt conveyor seamlessly transports the mixed materials to the brick machine, ensuring a smooth and efficient production process. The automatic brick stacker then neatly arranges the finished bricks, saving you time and labor.
Enhanced Capacity and Power:The QTY4-18 interlocking brick machine is specifically designed to handle increased production demands. It features an upgraded capacity that allows you to produce more bricks simultaneously. The machine's vibration system has also been enhanced, offering stronger force and higher vibration frequency, resulting in superior brick quality.
Versatility for Various Brick Types:One of the standout features of our interlocking brick machine is its ability to produce different types of bricks by simply changing the molds. This versatility makes it an ideal choice for businesses looking to diversify their product offerings without investing in multiple machines.
Energy-Efficient Design:With a power requirement of only 38kw, our interlocking brick machine is energy-efficient, helping you reduce operational costs. Despite its low power consumption, the machine delivers a powerful vibration force of up to 60kn, ensuring that each brick is perfectly compacted and shaped.
Productivity:
Block/Brick Type | Brick Dimensions | Pieces/Mould | Pieces/8Hours |
Standard brick size | 240x115x53mm | 26pcs | 41600pcs |
Paving Brick size | 200x100x60mm | 14pcs | 20160pcs |
6 Inch Hollow size | 400x150x200mm | 5pcs | 8000pcs |
8 Inch Hollow size | 400x200x200mm | 4pcs | 6400pcs |
1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.
2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.
3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.
4. We have two factories in China, the Quanzhou production base and the Wuhan headquarters. We also have a branch in Hong Kong.
5. Our R&D base is in Beijing, and free training is available.
6. Our brick making machines have been exported to more than 103 countries.
7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.
8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
