ZC1200
ZCJK
8474802000
20set / Month
20Day
140400pcs
20T
12-22sec
1 set
| Quantity: | |
|---|---|

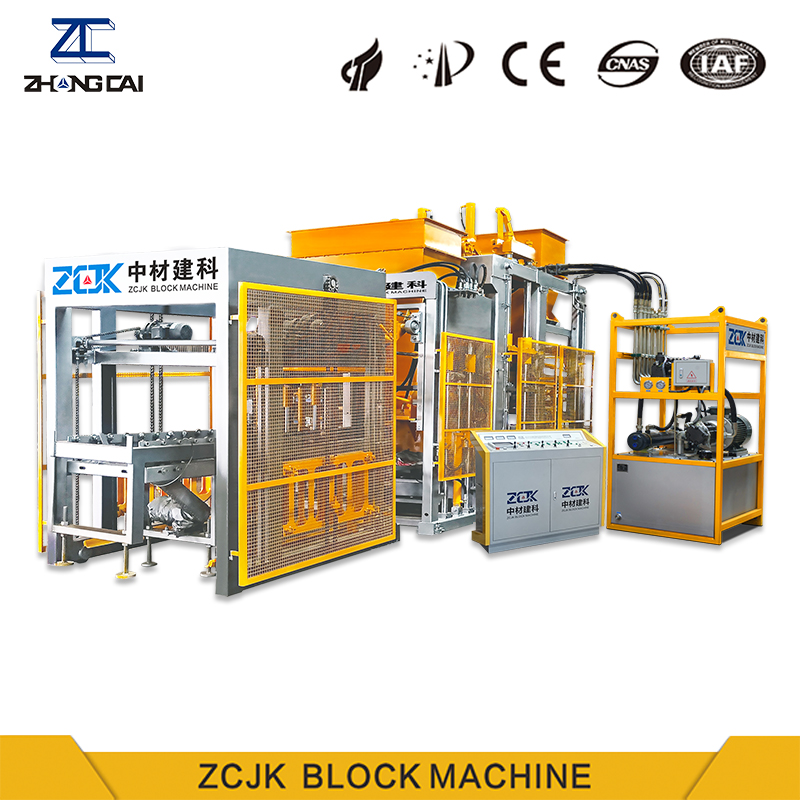

The ZC1200 Fully Automatic Hollow Block Machine stands out as a larger, more powerful alternative to the ZC1000, offering significantly higher brick output. Designed for optimal efficiency, the ZC1200 can produce up to 23,040 hollow blocks (400*200*200mm) in an 8-hour shift. This is achieved through an advanced vibrating system that accelerates aggregate settling into the mold, shortens the cycle time, and enhances machine stability, making it a superior choice for large-scale block production.
Main Parameter:
Pallet size | 1350x900mmm | Pallet maximum forming area | 1300x850mm |
Forming height | 50-200(350/500)mm | Cycle time | 12-22sec |
Type of vibration table | Dynamic-static table | Excitation force | 130KN |
Total power | 110kw | Total weight | 20T |
Detail Items:
Item | Quantity | Item | Quantity |
ZC1200 brick making machine | 1 | Automatic Brick conveyor | 1 |
Automatic pallet feeder | 1 | Hydraulic unit | 1 |
PLC Control system | 1 | Belt Conveyor | 1 |
JS750 Mixer | 1 | Double pallet stacker | 1 |
Three-stage batching system | 1 | Manual hydraulic forklift | 2 |
Free Mould | 1 |
The ZC1200 is equipped with a fully automatic working mode controlled by a PLC system, ensuring a seamless and controlled operation from start to finish. The entire production line—from mixing to loading, block forming, and finished block stacking—is fully automated, which significantly reduces the need for manual intervention and increases overall efficiency.
One of the key features of the ZC1200 is its short molding time, with cycles as quick as 12-22 seconds. This rapid cycle time not only boosts production speed but also ensures a smooth, continuous workflow.
The machine's large molding area, which accommodates sizes up to 1300*850mm and pallet sizes of 1350*900mm, allows for the production of a wide variety of blocks and bricks.
Furthermore, the versatility of the ZC1200 is evident in its ability to produce different shapes and sizes of blocks by simply changing the mold. Custom molds can also be designed to meet specific customer requirements, further enhancing the machine's flexibility.
Capacity list:
Block/Brick Type | Brick Dimensions | pcs/pallet | Capacity(8-hour shift) |
Standard brick size | 240x115x53mm | 65 | 140400pcs |
Paving Brick size | 200x100x60mm | 42 | 60480pcs |
Paving brick size | 240x115x90mm | 30 | 56700pcs |
Hollow block size | 400x200x200mm | 12 | 23040pcs |
The ZC1200 Fully Automatic Hollow Block Machine is not just about high production efficiency; it is also designed with sustainability in mind. The machine supports the recycling of discarded concrete bricks, which increases resource utilization and reduces waste. This feature is particularly beneficial for construction sites looking to minimize environmental impact and reduce the costs associated with waste disposal.
Additionally, the ZC1200 offers an efficient solution for utilizing fly ash, a byproduct of coal combustion, in brick production. The machine can incorporate a high proportion of fly ash, which not only reduces the need for virgin raw materials but also helps in managing industrial waste. The ZC1200 also provides a comprehensive plan for recycling metallurgical solid waste and chemical waste, turning these materials into environmentally friendly building products like hollow bricks and square bricks. This capability not only promotes resource conservation but also helps in reducing pollution associated with waste treatment.
