QTY6-15
ZCJK
20set / Month
20Day
74800pcs/8-hour shift
6.5T
15-25sec
1 set
| Quantity: | |
|---|---|

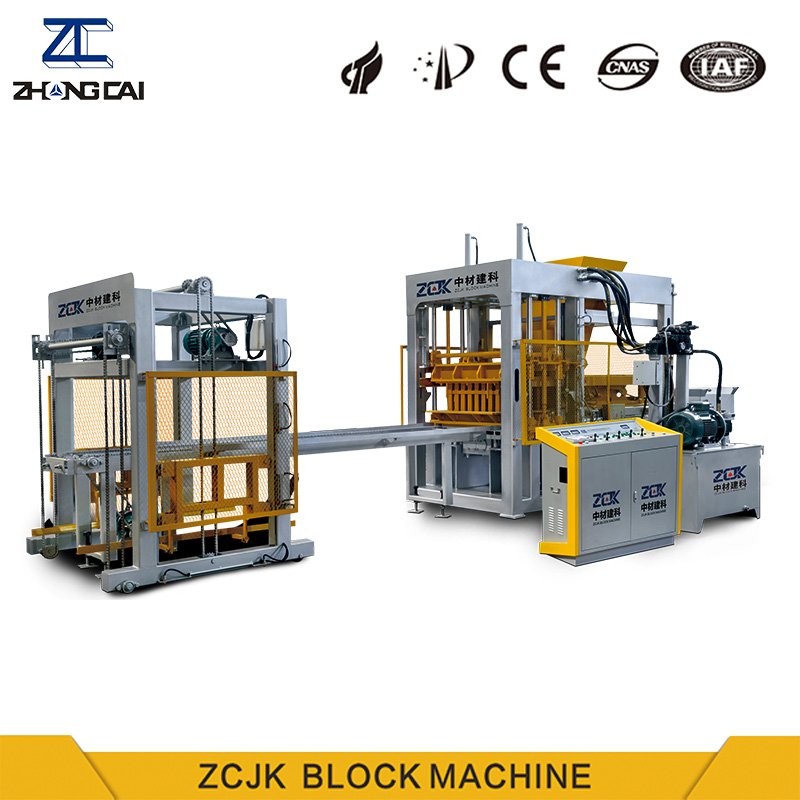

The QTY6-15 cement block making machine is designed to meet the demands of modern construction, offering a blend of precision, efficiency, and versatility. The QTY6-15 is ideal for producing a variety of high-quality blocks, including hollow, solid, and interlocking blocks, catering to diverse construction needs.It is a fully automatic brick making machine. The plate feeder is equipped with a worm gear reducer, and the left and right sides of the plate bin are equipped with rollers for placing pallets. This makes the machine run smoothly, easy to maintain, and has a longer service life. The motor has a self-protection function, and the machine can operate safely and with excellent performance.
Main Parameter:
Pallet size | 940x830mm | Pallet maximum forming area | 890x780mm |
Forming height | 50-200mm | Cycle time | 15-25sec |
Type of vibration table | Dynamic-static table | Excitation force | 70KN |
Total power | 40kw | Total weight | 6.5T |
Detail Items:
Item | Quantity | Item | Quantity |
QTY6-15 brick making machine | 1 | Automatic Brick conveyor | 1 |
Automatic pallet feeder | 1 | Hydraulic unit | 1 |
PLC Control system | 1 | Belt Conveyor | 1 |
JS500 Mixer | 1 | Double pallet stacker | 1 |
Manual hydraulic forklift | 2 | Free Mould | 1 |
The QTY6-15 cement block making machine is engineered for high efficiency, allowing for the rapid production of cement blocks without compromising on quality. Its advanced automation features streamline the entire production process, from material feeding to block output, significantly reducing the need for manual labor.
Enhanced Production Speed: The QTY6-15 can produce a large number of blocks in a short period, thanks to its efficient feeding system and powerful compression mechanism. This high-speed production is ideal for meeting the demands of large-scale construction projects.
Consistent Block Quality: Each block produced by the QTY6-15 cement block making machine maintains uniform dimensions and compression strength, ensuring that they meet the rigorous standards required for modern construction. This consistency reduces waste and enhances the overall reliability of the building materials.
Cost-Effective Operation: By automating key aspects of the block-making process, the QTY6-15 minimizes operational costs. The reduction in manual labor not only lowers expenses but also reduces the potential for human error, further ensuring the quality and durability of the blocks produced.
The QTY6-15 is built to last, with robust construction and high-quality components that ensure reliable performance even under demanding conditions. Its design minimizes maintenance requirements, reducing downtime and associated costs.
Sturdy Construction: Made from high-strength materials, the QTY6-15 cement block making machine is designed to withstand the rigors of continuous operation. This durability ensures a long service life, making the machine a cost-effective investment for any production facility.
Low Maintenance Needs: The machine's quality components and thoughtful design minimize the need for frequent maintenance. This not only reduces downtime but also lowers the long-term operational costs, ensuring that the machine remains a productive part of your operation for years to come.
Capacity list:
Block/Brick Type | Brick Dimensions | pcs/pallet | Capacity(8-hour shift) |
Standard brick size | 240x115x53mm | 39 | 74800pcs |
Paving Brick size | 200x100x60mm | 24 | 34560pcs |
Multi hole brick size | 240x115x90mm | 14 | 23520pcs |
Hollow block size | 400x200x200mm | 6 | 10080pcs |
1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.
2. ZCJK Grouphas passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.
3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.
4. We have two factories in China, the Quanzhou production base and the Wuhan headquarters. We also have a branch in Hong Kong.
5. Our R&D base is in Beijing, and free training is available.
6. Our brick making machines have been exported to more than 103 countries.
7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.
8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
