PF
ZCJK
| Quantity: | |
|---|---|

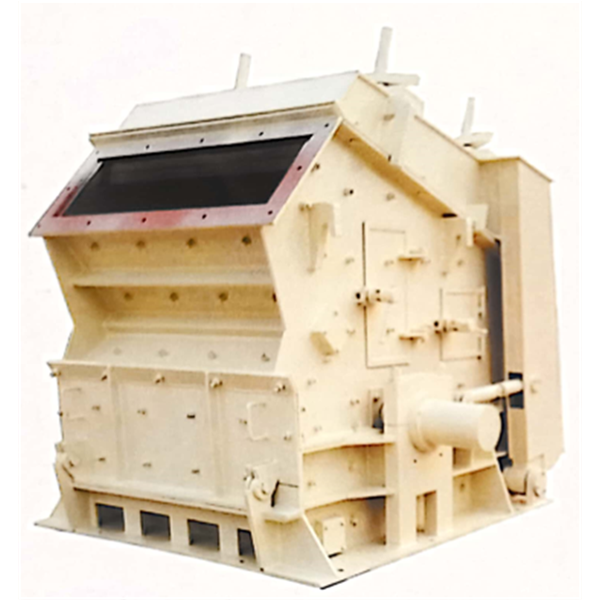

| ZCJK PF Impact crusher |
| Equipment introduction | |||||||||
| The counter-type crusher absorrrrbs the advanced technolgy at home and adroad, and combines the foundation of the specific sand and ravel industry to develop the latest generation of impact crusher. It adopts the latest manufacturing technology, unique structure design, the finished product is cubic, no tension and crack, good grain shape, can crush all kinds of caorse, medium and fine materials(granite, limestone, concrete, ect.), widely used in various ore crushing, railway, highways, energy, cement, chemicals, construction and other industries. The size of the discharge material can be adjusted, and the crushing specifications are diversified. | |||||||||
| Performace characteristics | |||||||||
| 1 | The feeding inlet is large, the crushing chamber is high, the material hardness is high, the block size is large, amd the product stone power is small | ||||||||
| 2 | The backlash plate and the plate hammer gap can be easily adjusted, and the discharge granulatrity and particle shape are well controlled | ||||||||
| 3 | Compact structure, strong machine rigidity, the motor has a large moment of inertia. | ||||||||
| 4 | High chorme plate hammer, impact resistance, ani-wear, impact force. | ||||||||
| 5 | No key connection, convenient maintenance, economical and reliable. | ||||||||
| 6 | Full crushing function, high productivity, small wear and tear, and high comprehensive efficiency. | ||||||||
| Working principle | |||||||||
| The stone material falls directly from the upper part of the high-speed totating turntable; under the action of high-speed centrifugal force, high-speed collision and high-density pulverization are generated by the flying stone surrounding the turntable with another part of umbrella type, and the stone are hit each othe, a vortex motion is formed between the turntable and the casing to cause muiltiple blows, friction, and pulverization, and is discharged straight from the lower portion. A closed loop is formed multiple times, controlled by a screening device to achieve the desired particle size. | |||||||||
