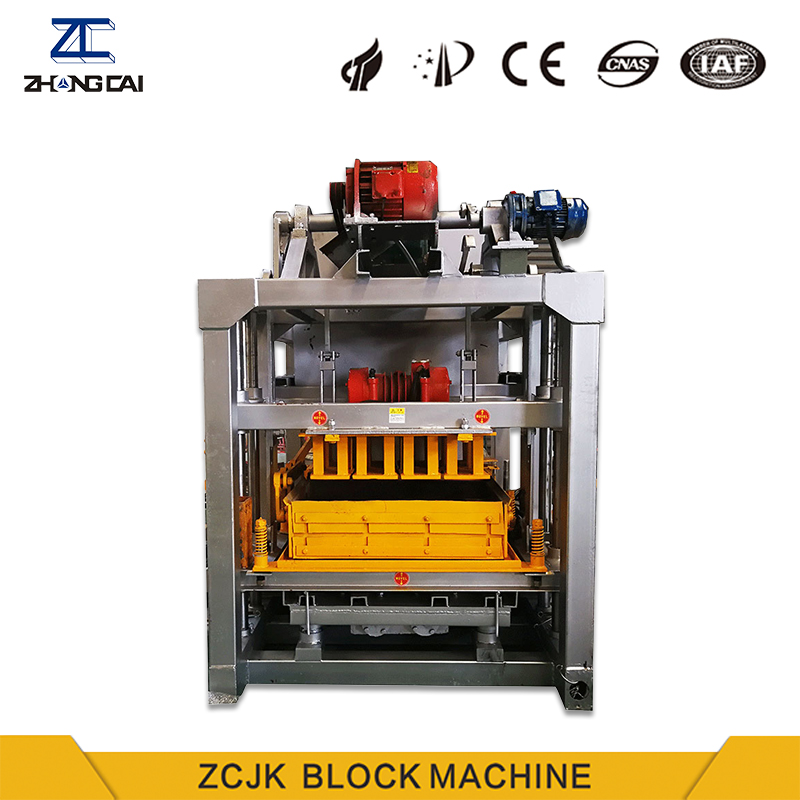

The QTJ4-20A concrete block machine is based on the QTJ4-40A and adds an automatic pallet feeder. The hopper is located at the rear of the main machine and can automatically and easily feed pallets, saving manpower. Bricks can be stacked in multiple layers. Save more labor, save more effort, and produce more bricks.
Technical Parameter:
Brand | ZCJK | Total power | 20KW |
Model | QTY4-20A | Power Supply | 3Phase |
Method of Moulding | Vibrason | Cycle time | 20-25sec |
Mode of Vibration | Table Vibrating | Pallet size | 880x550mm |
Vibration Force | 50KN | Overall Dimensions | 3380x1560x2300mm |
Vibration Frequency | 4850rpm | Moulding Machine Weight | 3.5T |
Detail Items:
Item | Quantity | Item | Quantity |
QTJ4-20A block making machine | 1 | Free mould | 1 |
Brick conveyer | 1 | Belt conveyor | 1 |
JW350 concrete mixer | 1 | Automatic stacker | 1 |
Control box | 1 | Trolley | 2 |
The crank connecting rod mechanism is adopted to ensure the smooth movement of the pallet and the stable transmission of the product.
The upper and lower slides are made of solid thick plates. The connection between the column sleeve and the slider uses screws, which facilitates the replacement of the copper bushing.
Special feeding system, the hopper spindle runs asynchronously, and the feeding is fast and even.
Siemens of Germany provides PLC and touch screen components. Managing the block machine and stacker from a single electronic control cabinet simplifies operation and fault diagnosis.
The movement mechanism of the stacker adopts a swing bar, so the pallet accelerates evenly and moves smoothly.
This machine adopts hydraulic main parts and sealing components imported from Taiwan ASHUN. The hydraulic system uses a high dynamic performance proportional valve to accurately control oil volume and pressure to achieve precise operation of key components.
The frame is constructed using professional thick-walled rectangular welding method. The transmission shaft and gears are made of alloy steel, which greatly improves their strength and durability.
It is a small fully automatic paver making machine. It is a mechanical brick making machine with a complete production line. It is equipped with an automatic pallet feeder, which can automatically feed pallets, easily saving manpower and increasing output.
Productivity:
Block/Brick Type | Brick Dimensions | Pieces/Mould | Pieces/8Hours |
Standard brick size | 240x115x53mm | 26 | 30000pcs |
6 Inch Hollow brick size | 400x150x200mm | 5 | 5760pcs |
8 Inch Hollow brick size | 400x200x200mm | 4 | 4608pcs |
Paving Brick size | 200x100x60mm | 14 | 13440pcs |
