PXJ
ZCJK
| Quantity: | |
|---|---|

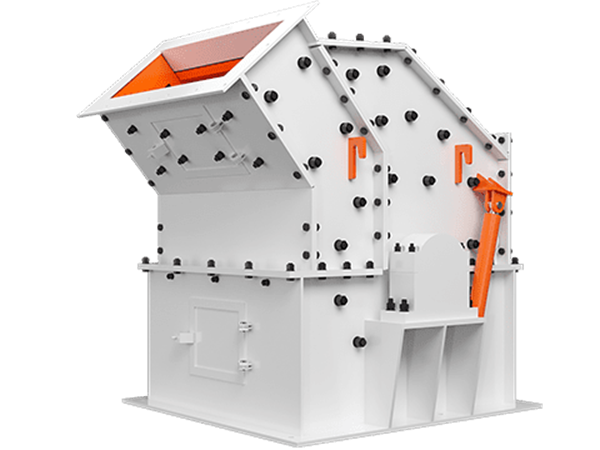

| ZCJK PXJ High Efficiency Fine Crusher |
| Production capacity: 20-310t/h Feed size: ≤190mm Motor power: 37-315KW Finished product specifications: 0-5, 2-4, 13-20, 30-40, 40-60... Various specifications and standards can be reached |
| Specification |
| No. | Feeding size | Feeding size | Feed opeing size | Discharging size | Adjustable size of discharge opening | Capacity | Power |
| 1 | PXJ 800 x 400 | ≤ 120 mm | 400 x 185 mm | ≤ 5mm | 5-20 mm | 20-45 t/h | 37-45 kw |
| 2 | PXJ 800 x 600 | ≤ 180 mm | 500 x 250 mm | ≤ 5mm | 5-20 mm | 35-55 t/h | 45-55 kw |
| 3 | PXJ 800 x 800 | ≤ 180 mm | 550 x 330 mm | ≤ 5mm | 5-20 mm | 35-65 t/h | 45-55 kw |
| 4 | PXJ 1010 x 1010 | ≤ 180 mm | 1000 x 350 mm | ≤ 5mm | 5-20 mm | 45-75 t/h | 55-75 kw |
| Product Introduction |
| PXJ high efficiency fine crusher is medium and fine material crusher combining domestic and international stone and sand industry specific situationm and it adsorbs latest techonology. It adopts advanced production technique and unique structure design. Fine crusher combines the advantages of hammer crusher and impact crusher, and greatly improve work efficiency and reduce energy consumption. High-efficiency Fine Crusher has stable working performance and simple technique and structure, high capacity and longer service life. |
| Performance characteristics |
| 1 | Reliable operation |
| 2 | Stable discharge |
| 3 | Low investment, high return |
| 4 | high degree of automation |

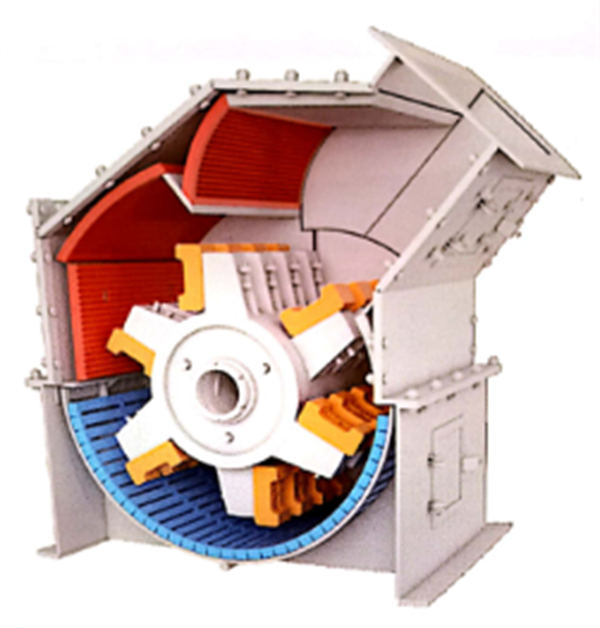

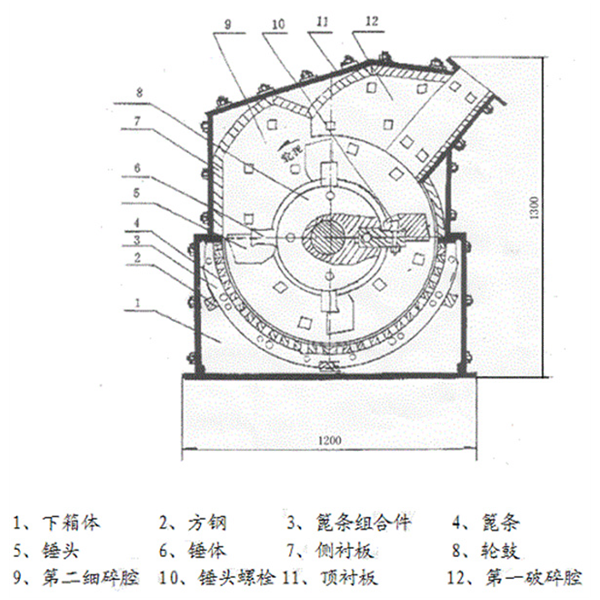

| Working principle |
| When the PXJ fine crusher is working, the materials enter the cavity from the feed port in turn, and fall on the high-speed rotating movable hammer head. After the impact between the hammer and the counterattack plate, the materials are initially crushed. After the material has been repeatedly hammered and counterattacked with high frequency for many times, it forms accumulation on the middle partition, produces a slip, and falls on the throwing plate of the lower rotor rotating at a high speed. The movable plate hammer is forced to counterattack, crush and grind. After the material has undergone multiple compound crushing, scouring and grinding, the ultra-fine effect is achieved, and then it is discharged through the discharge port. |
| Customer case |
| ZCJK PXJ High Efficiency Fine Crusher |
| Production capacity: 20-310t/h Feed size: ≤190mm Motor power: 37-315KW Finished product specifications: 0-5, 2-4, 13-20, 30-40, 40-60... Various specifications and standards can be reached |
| Specification |
| No. | Feeding size | Feeding size | Feed opeing size | Discharging size | Adjustable size of discharge opening | Capacity | Power |
| 1 | PXJ 800 x 400 | ≤ 120 mm | 400 x 185 mm | ≤ 5mm | 5-20 mm | 20-45 t/h | 37-45 kw |
| 2 | PXJ 800 x 600 | ≤ 180 mm | 500 x 250 mm | ≤ 5mm | 5-20 mm | 35-55 t/h | 45-55 kw |
| 3 | PXJ 800 x 800 | ≤ 180 mm | 550 x 330 mm | ≤ 5mm | 5-20 mm | 35-65 t/h | 45-55 kw |
| 4 | PXJ 1010 x 1010 | ≤ 180 mm | 1000 x 350 mm | ≤ 5mm | 5-20 mm | 45-75 t/h | 55-75 kw |
| Product Introduction |
| PXJ high efficiency fine crusher is medium and fine material crusher combining domestic and international stone and sand industry specific situationm and it adsorbs latest techonology. It adopts advanced production technique and unique structure design. Fine crusher combines the advantages of hammer crusher and impact crusher, and greatly improve work efficiency and reduce energy consumption. High-efficiency Fine Crusher has stable working performance and simple technique and structure, high capacity and longer service life. |
| Performance characteristics |
| 1 | Reliable operation |
| 2 | Stable discharge |
| 3 | Low investment, high return |
| 4 | high degree of automation |

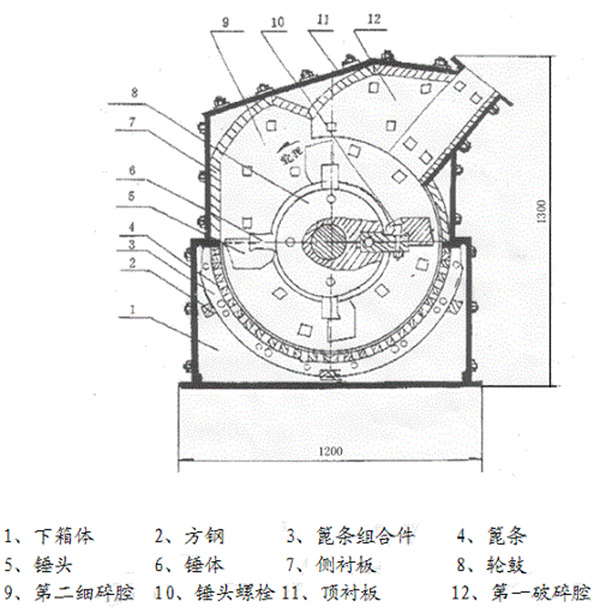

| Working principle |
