ZC1000
ZCJK
20set / Month
20Days
118800pcs/8-hour shift
16T
12-22sec
1 set
| Quantity: | |
|---|---|

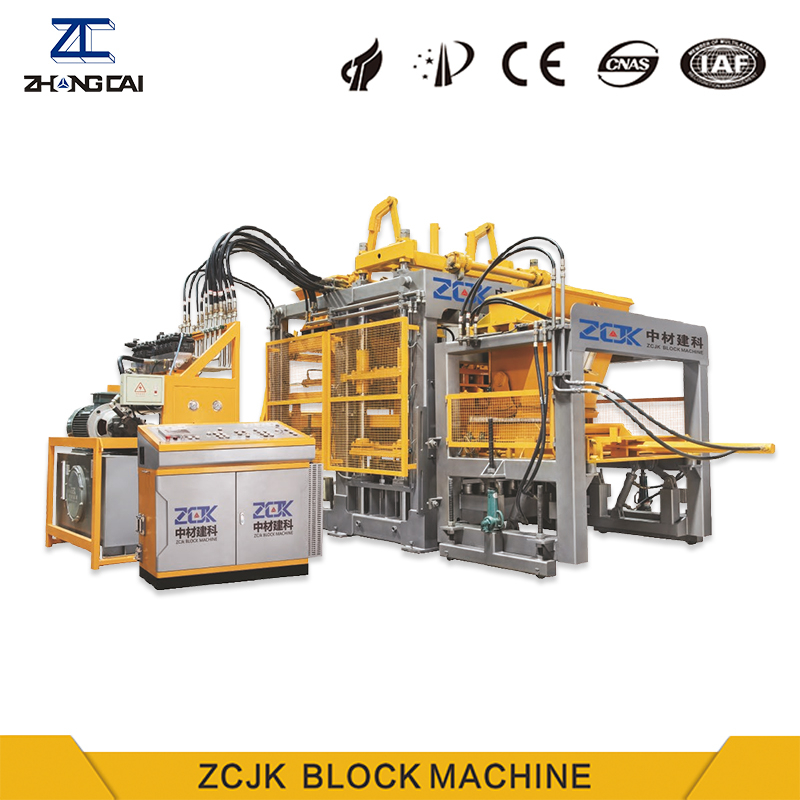

The ZC1000 Fully Automatic Brick Making Machine is a versatile and efficient solution tailored for markets requiring the production of square bricks, such as Bangladesh and Kenya. With its square design, the machine is particularly suited for producing high-quality bricks in large quantities. Equipped with advanced features like a three-stage batching system, JW750 mixer, and double pallet stacker, the ZC1000 offers automation, efficiency, and significant labor savings. This machine is an ideal choice for medium to large-scale construction industry investors aiming to optimize their production processes.
Main Parameter:
Pallet size | 1150x900mm | Pallet maximum forming area | 1100x850mm |
Forming height | 50-200(350/500)mm | Cycle time | 12-22sec |
Type of vibration table | Dynamic-static table | Excitation force | 110KN |
Total power | 130kw | Total weight | 16T |
Detail Items:
Item | Quantity | Item | Quantity |
ZC1000 brick making machine | 1 | Automatic Brick conveyor | 1 |
Automatic pallet feeder | 1 | Hydraulic unit | 1 |
PLC Control system | 1 | Belt Conveyor | 1 |
JS750 Mixer | 1 | Double pallet stacker | 1 |
Three-stage batching system | 1 | Manual hydraulic forklift | 2 |
Free Mould | 1 |
The ZC1000 is engineered to maximize productivity while minimizing labor requirements. The machine's fully automated operation, managed by a PLC control system, allows for seamless production with minimal human intervention. This results in significant time savings and reduces the need for manual labor, making the ZC1000 an efficient choice for high-demand production environments.
High-Power Vibrator:The machine features a high-power vibrator that significantly reduces the solidification time of blocks and bricks, enabling faster production cycles and higher output rates.
Double-Arm Aggregate Feeder:The double-arm aggregate feeder ensures smooth and rapid feeding of materials into the bottom mold, enhancing the efficiency of the brick-making process.
Reinforced Extrusion Head:Equipped with two reinforced oil cylinders, the extrusion head provides additional compaction, resulting in stronger and more durable bricks and blocks.
The ZC1000 boasts a range of technical features designed to enhance its performance and durability. These innovations ensure that the machine delivers consistent quality and high productivity over its long service life.
Dynamic Hydraulic System:The hydraulic system features a high-efficiency double vane pump that enables multiple simultaneous operations, significantly boosting the machine's productivity. The touch-screen interface allows for easy adjustments and real-time monitoring of the production process.
Intelligent Control System:The machine is equipped with an advanced PLC touch-screen control system, which simplifies operation and reduces the likelihood of errors. The system also allows for permanent storage of formula data and provides real-time fault diagnosis, ensuring smooth and uninterrupted production.
Durable Vibration Table:The ZC1000’s dynamic and static worktable design, combined with impact vibration technology, ensures strong vibration force, resulting in high-density products with consistent quality.
The machine is controlled by the internationally renowned Siemens PLC, and other electronic components are also imported from world-renowned manufacturers. It can work automatically, semi-automatically and manually according to your preference. The whole machine adopts a unique welding process to weld extra-thick rectangular steel pipes, which has a longer service life.
Capacity list:
Block/Brick Type | Brick Dimensions | Pcs/pallet | Capacity(8-hour shift) |
Standard brick size | 240x115x53mm | 55 | 118800pcs |
Paving Brick size | 200x100x60mm | 35 | 50400pcs |
Multi hole brick size | 240x115x90mm | 24 | 46080pcs |
Hollow block size | 400x200x200mm | 10 | 19200pcs |
1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.
2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.
3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.
4. We have two factories in China, the Quanzhou production base and the Wuhan headquarters. We also have a branch in Hong Kong.
5. Our R&D base is in Beijing, and free training is available.
6. Our brick making machines have been exported to more than 106 countries.
7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.
8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
