QTJ4-40
ZCJK
20set / Month
20Day
12480pcs/8hours
1.5T
60-70sec
1 set
| Quantity: | |
|---|---|

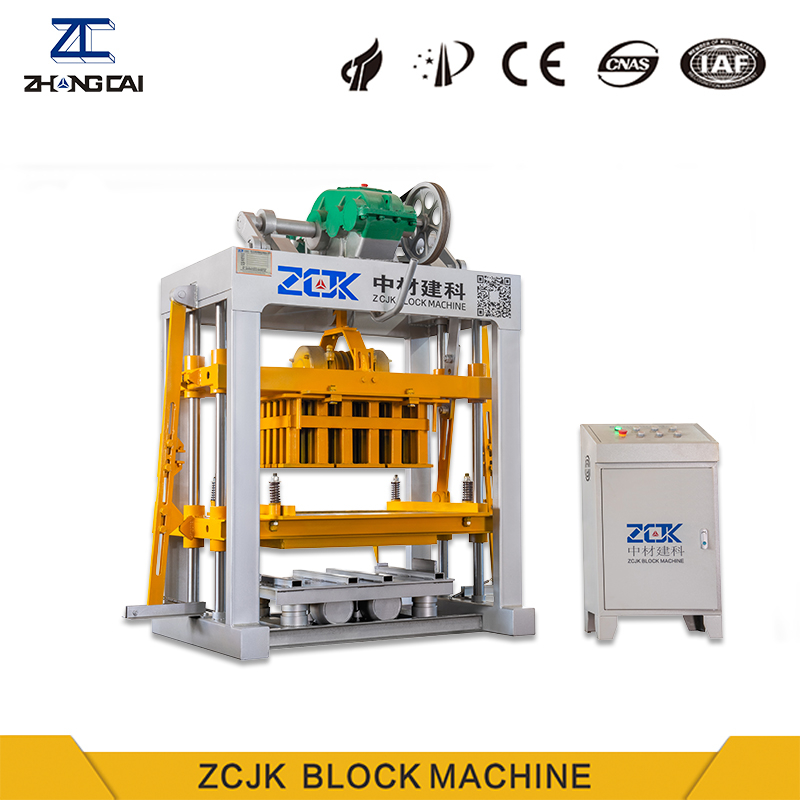

Searching for an affordable and reliable solution to kickstart your block production business? Our QTJ4-40 manual block making machine, known for its ease of use and cost-effectiveness, is the perfect block making equipment for small-scale enterprises. With minimal labor and investment required, this machine delivers high production capacity, quick returns, and superior block quality, making it a top choice for aspiring entrepreneurs.
Main Parameter:
Pallet size | 860x540mm | Pallet maximum forming area | 820x500mm |
Forming height | 50-200mm | Cycle time | 60-70sec |
Type of vibration | Vibration | Excitation force | 48KN |
Total power | 9.6kw | Total weight | 1.5T |
Detail Items:
Item | Quantity | Item | Quantity |
QTJ4-40 block making machine | 1 | Free mould | 1 |
| Control box | 1 | Trolley | 2 |
Simple and Compact Structure: The QTJ40-40 manual block making machine features a straightforward design, making it easy to operate and maintain. This machine's user-friendly structure reduces the need for technical expertise, making it ideal for businesses with minimal experience in block production.
Low Labor and Investment Needs: Unlike fully automated equipment, this manual block making machine requires minimal manpower and investment. It offers a high return on investment (ROI) with limited upfront costs, making it an accessible option for small-scale operations.
Produces Standard and High-Strength Bricks: With the ability to produce various types of blocks by changing molds, this machine ensures versatility. It is particularly efficient at producing high-strength blocks that outperform traditional clay bricks.
Energy-Efficient with Low Power Consumption: Operating with a general power of 9.6KW and an average output of 5KW/h, this machine consumes minimal energy. It keeps operational costs low while maintaining high production rates.
Environmentally Friendly Design: The manual block making machine complies with environmental protection standards. It generates no wastewater, slag, or harmful emissions during production, ensuring a sustainable and eco-friendly manufacturing process.
Capacity list:
Block/Brick Type | Brick Dimensions | Pieces/Mould | Pieces/8Hours |
Standard brick size | 240x115x53mm | 26pcs | 12480pcs |
Paving Brick size | 200x100x60mm | 14pcs | 6000pcs |
6 Inch Hollow size | 400x150x200mm | 5pcs | 2400pcs |
8 Inch Hollow size | 400x200x200mm | 4pcs | 1920pcs |
1. ZCJK is a group enterprise engaged in brick making machine R&D, production, sales and after-sales for 22 years.
2. ZCJK Group has passed ISO9001 quality management system certification and CE EU certification. It has 2 invention patents and 18 utility model patents.
3. ZCJK Group has 3 dedicated after-sales teams composed of local professionals overseas, who provide on-site installation guidance and training and speak the local language.
4. We have two factories in China, the Quanzhou production base and the Wuhan headquarters. We also have a branch in Hong Kong.
5. Our R&D base is in Beijing, and free training is available.
6. Our brick making machines have been exported to more than 103 countries.
7. We have 10 different types, with prices ranging from US$3,100 to US$350,000.
8. We can provide the best ratio to help customers reduce costs and ensure product quality. Unique in raw material technology.
