In the world of concrete block manufacturing, the quality of your final product isn't just decided by the press; it starts in the mixer.
A high-performance concrete mixer for block making machine applications is essential to ensure consistent quality.
The mixer is the heart of your production line—if the raw materials aren't blended into a perfectly homogeneous state, the bricks will suffer from internal voids, uneven density, and brittle edges.
When setting up a factory, many buyers face a critical dilemma: Should I invest in a Vertical Pan Mixer (JW Series) or a Twin-Shaft Compulsory Mixer (JS Series)?
This guide will break down the technical differences and help you find the perfect match for your ZCJK block making machine.
Choosing the right brick making machine mixer directly impacts efficiency, product strength, and long-term profitability.
The JW Series, also known as the vertical pan mixer, is a classic choice for small-to-medium-scale brick production. It operates with a vertical shaft and rotating mixing stars that "scour" the material against the pan.
Its simple mechanical design relies on gravity and vertical rotation to blend cement, sand, and water.
Low initial investment, minimal maintenance requirements, and extreme ease of cleaning. It is a practical industrial concrete mixer solution for entry-level production lines.

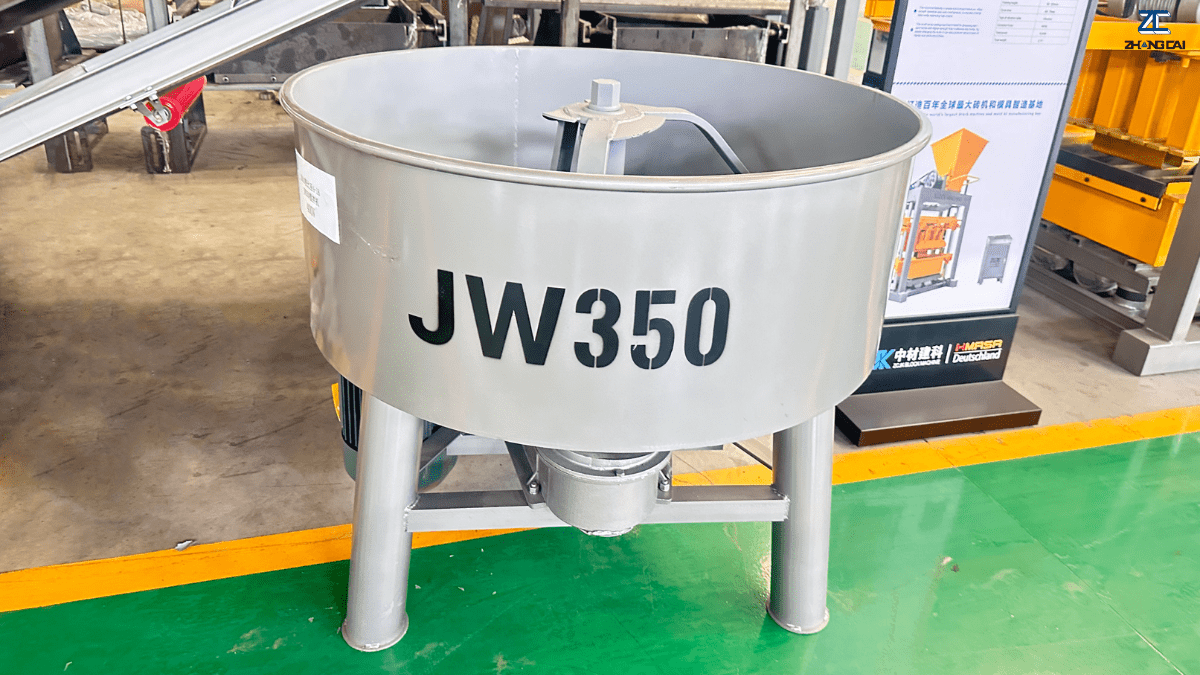

JW350: The entry-level champion for startups. It is the ideal companion for ZCJK's semi-automatic and automatic lines such as QTJ4-40, QTJ4-40A, and QTJ4-20A.
JW500: Offers increased capacity for mid-range efficiency. It is perfectly paired with the QTY4-18 automatic block machine for consistent daily output.
Entrepreneurs looking for high-quality, affordable solutions and a quick return on investment (ROI).
For industrial-scale operations, the JS Series twin-shaft mixer is the gold standard. As a highly efficient industrial concrete mixer, it is widely used in modern automated production lines. Unlike pan mixers, the JS series uses a "compulsory" mixing method with two horizontal shafts rotating in opposite directions.
The twin horizontal shafts create intense mixing action, ensuring uniform blending of dry or stiff concrete within a typical mixing cycle of 30–60 seconds.
Rapid mixing cycles, higher block density, and superior handling of high-strength concrete. This type of concrete mixer for block making machine setups is essential for high-capacity plants.

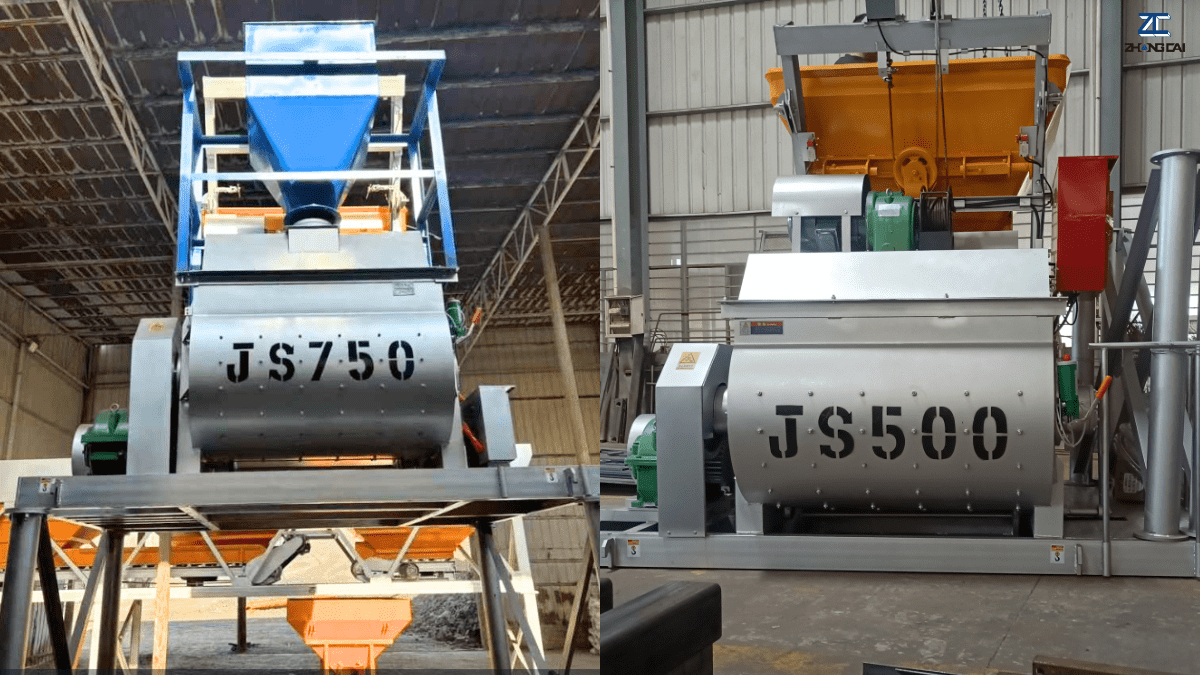

JS500: The powerhouse for high-output automatic plants. It is an essential requirement for the QTY4-15, QTY6-15, and QTY8-15 series.
JS750: A heavy-duty model designed for large-scale industrial lines like the ZC900, ZC1000, ZC1200, ZC1500 featuring an automated skip hoist and a reinforced structure for continuous production.
Large-scale factories and manufacturers of high-strength hollow blocks who prioritize speed, consistency, and industrial durability.
Understanding the difference between these two types of mixers is critical when selecting the right equipment for your production line.
JS mixers use a compulsory twin-shaft system, while JW mixers rely on vertical rotation and gravity.
JS mixers deliver faster and more uniform mixing, especially for low-slump or dry concrete. JW mixers are suitable for standard mixes with moderate requirements.
JS mixers support high-output, fully automatic block making machines, while JW mixers are better suited for small to medium production lines.
JS mixers are widely used in large-scale industrial projects, whereas JW mixers are commonly used in entry-level and semi-automatic brick production setups.
Choosing between them depends on your production scale, budget, and the type of blocks you plan to manufacture.
In this section, you can compare the detailed specifications of ZCJK’s mixer lineup. Choosing between a pan mixer and a twin-shaft mixer depends on your specific production capacity and material requirements.
Model | JW350 | JW500 | JS500 | JS750 |
|---|---|---|---|---|
Type | Pan Mixer | Pan Mixer | Twin Shaft | Twin Shaft |
Feeding volume | 450 L | 800 L | 800 L | 1200L |
Exceeding volume | 350 L | 500 L | 500 L | 750L |
Production Rate | 1.2 m³/h | 1.6 m³/h | ＞25m³/h | ＞37.5m³/h |
Stirring Speed | 35 R/ min | 32 R/ min | 35 R/ min | 30.5 R/ min |
Power | 5.5 KW | 7.5 KW | 25.3KW | 38.8KW |
Size | 1.15*1.15*1.2 m | 1.52*1.52*1.4 m | 3.05*2.53*2.68m | 3.65*2.6*2.88m |
Weight | 250kg | 550kg | 4000kg | 8700kg |
To make the right choice for your business, follow these three steps:
Reference compatibility requirements. For example, high-capacity models like ZC900 require a JS750 to maintain cycle efficiency.
If your target is 10,000 blocks per day or more, a JS twin-shaft mixer is necessary to avoid bottlenecks.
The JW series is easier for local technicians to maintain, while the JS series offers higher automation for advanced production environments.
All ZCJK mixers are pre-engineered to integrate seamlessly with block making machines, delivering a complete turnkey solution.
Investing in a modern block manufacturing machine is a major step, but don't let a poorly matched mixer limit your output.
Whether you choose a cost-effective pan mixer or a high-performance twin-shaft mixer, the goal remains the same: producing high-density, high-value blocks with every cycle.
By matching the right mixer to your production line, you ensure stable operations, lower rejection rates, and higher profitability.
Not sure which mixer fits your production line? Contact ZCJK for a customized solution and factory layout plan.
For high-output and fully automated plants, twin-shaft (JS) mixers are generally the better choice due to their speed and mixing quality. For smaller operations, JW pan mixers are more cost-effective.
A twin shaft concrete mixer uses two horizontal shafts with mixing blades rotating in opposite directions to create a powerful and uniform mixing effect, ideal for industrial applications.
Yes, pan mixers can produce hollow blocks effectively, especially in small to medium production lines. However, for higher strength and consistency, twin-shaft mixers are recommended.
