How Modern Block Making Machines Produce Premium Colored Pavers with Cost-Efficient Production

1. Introduction: The Hardscape Shift and the Color Dilemma

The global hardscape market is rapidly shifting toward interlocking concrete pavers. According to the Concrete Masonry & Hardscapes Association (CMHA), homeowners, developers, and municipal contractors increasingly prefer pavers over poured concrete because of their durability, lifecycle value, and design flexibility.

For block manufacturers, this creates a strong opportunity in premium colored paver production, which typically offers higher profit margins than standard gray blocks.

However, producing high-end colored pavers also creates a major challenge: material cost control. Using premium pigments and fine aggregates throughout the entire paver can significantly increase production costs.

To stay competitive, modern block making machines increasingly rely on dual-layer face mix technology, allowing manufacturers to achieve premium appearance with more cost-efficient production.

2. The Market Context: What Defines Premium Curb Appeal?

In its market analysis, “Pavers vs. Concrete: Myths, Facts, and What Homeowners Need to Know,” the Concrete Masonry & Hardscapes Association highlights how interlocking pavers continue gaining popularity because of their visual appeal, durability, and maintenance advantages.

Homeowners, commercial developers, and landscape architects increasingly demand:

• rich colors

• textured surfaces

• customized paving patterns

These are features that traditional poured concrete often struggles to deliver consistently.

At the same time, interlocking pavers must also meet strict physical performance standards. For example, ASTM C936 specifies physical performance requirements for solid concrete interlocking paving units used in pedestrian and vehicular applications.

To satisfy both structural requirements and aesthetic expectations, modern manufacturers increasingly rely on Face Mix Technology, also known as double-layer paver production.

3. Why Face Mix Technology Matters

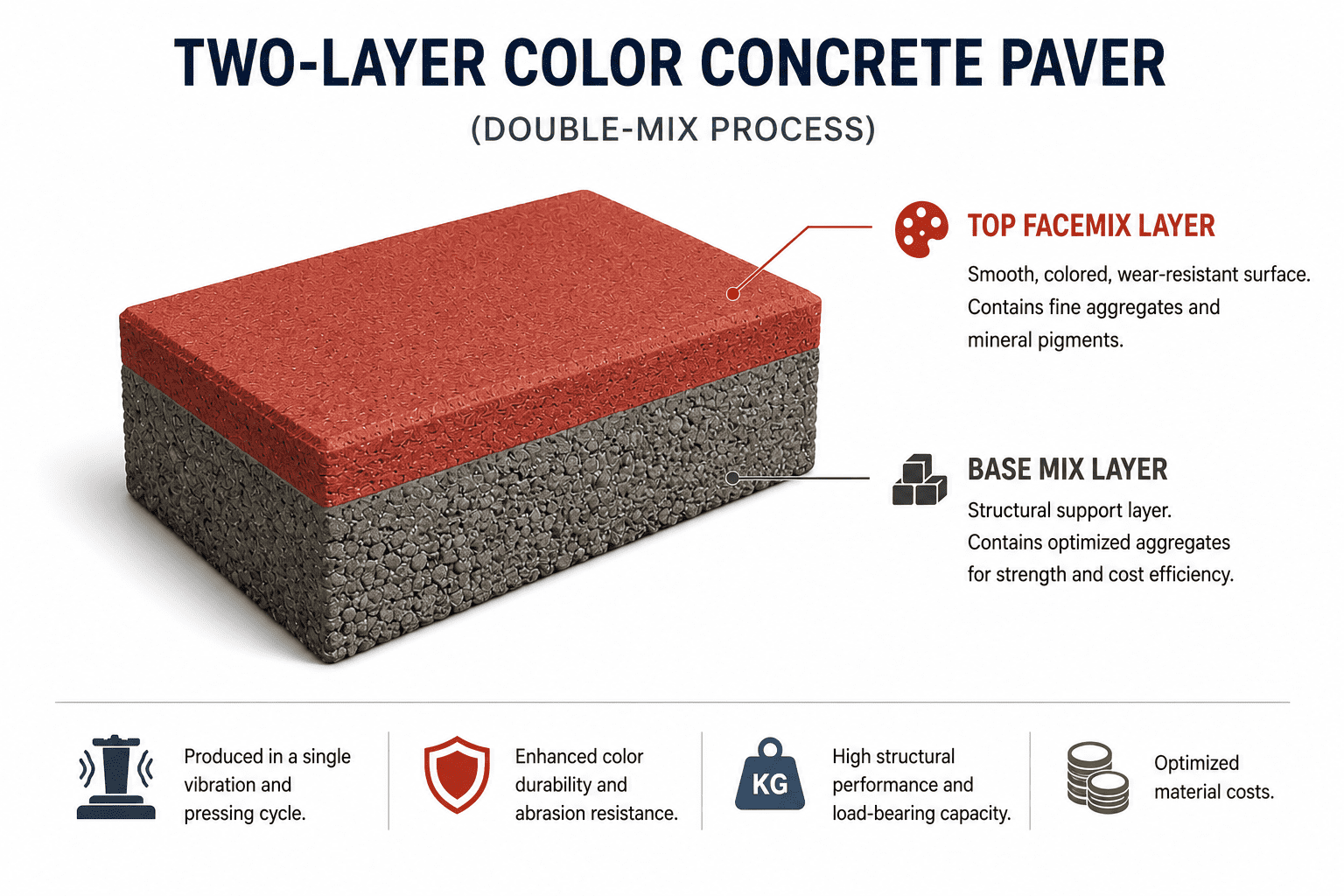

Modern industrial block making machines solve the cost challenge by dividing the paver into two functional layers during a single production cycle.

The Base Mix (85%–90% of the Paver)

The base mix forms the structural core of the paver.

It typically uses:

• coarser local aggregates

• crushed stone or gravel

• standard cement

This layer delivers the compressive strength and durability required for paving applications.

The Face Mix (10%–15% of the Paver)

The face mix forms the visible surface layer.

It usually contains:

• fine silica sand

• premium cement

• high-quality iron oxide pigments

By limiting expensive pigments and premium aggregates to only the top layer, manufacturers can significantly reduce coloring material consumption while still achieving a vibrant, high-end surface finish.

This is why double-layer block machines are becoming increasingly popular in modern colored paver production.

4. Why Vibration Precision Prevents Delamination

One of the most important technical concerns in colored paver manufacturing is delamination—the separation of the top colored layer from the structural base layer after long-term use.

This issue may occur under:

• heavy traffic loads

• freeze-thaw cycles

• poor compaction conditions

To help prevent delamination, the two layers must be compacted and bonded together with high structural consistency before curing.

This requires:

• high-frequency vibration

• stable hydraulic pressure

• accurate material distribution

• synchronized compaction control

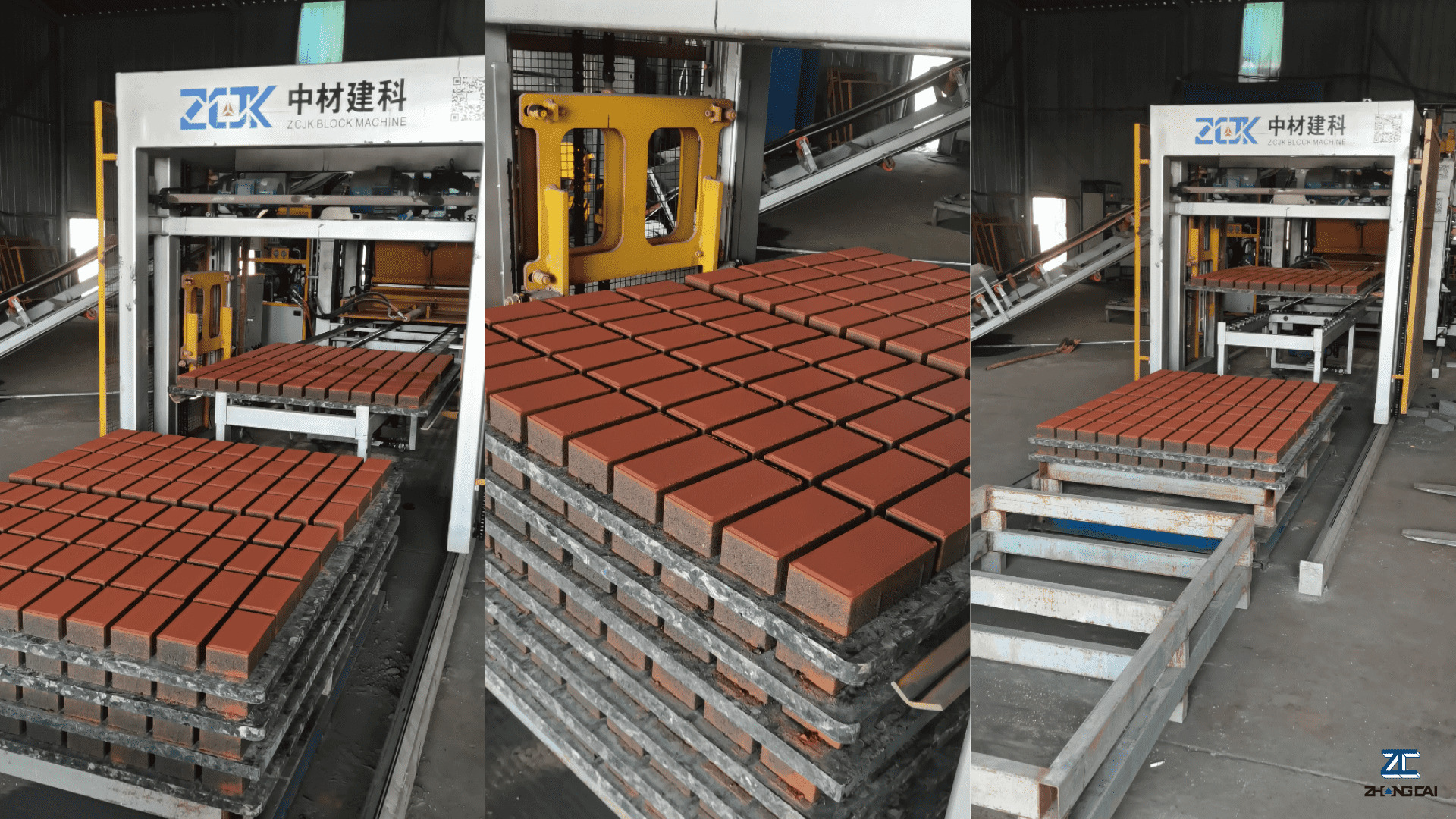

This is where advanced production systems such as the ZCJK ZC Series block making machines become especially important.

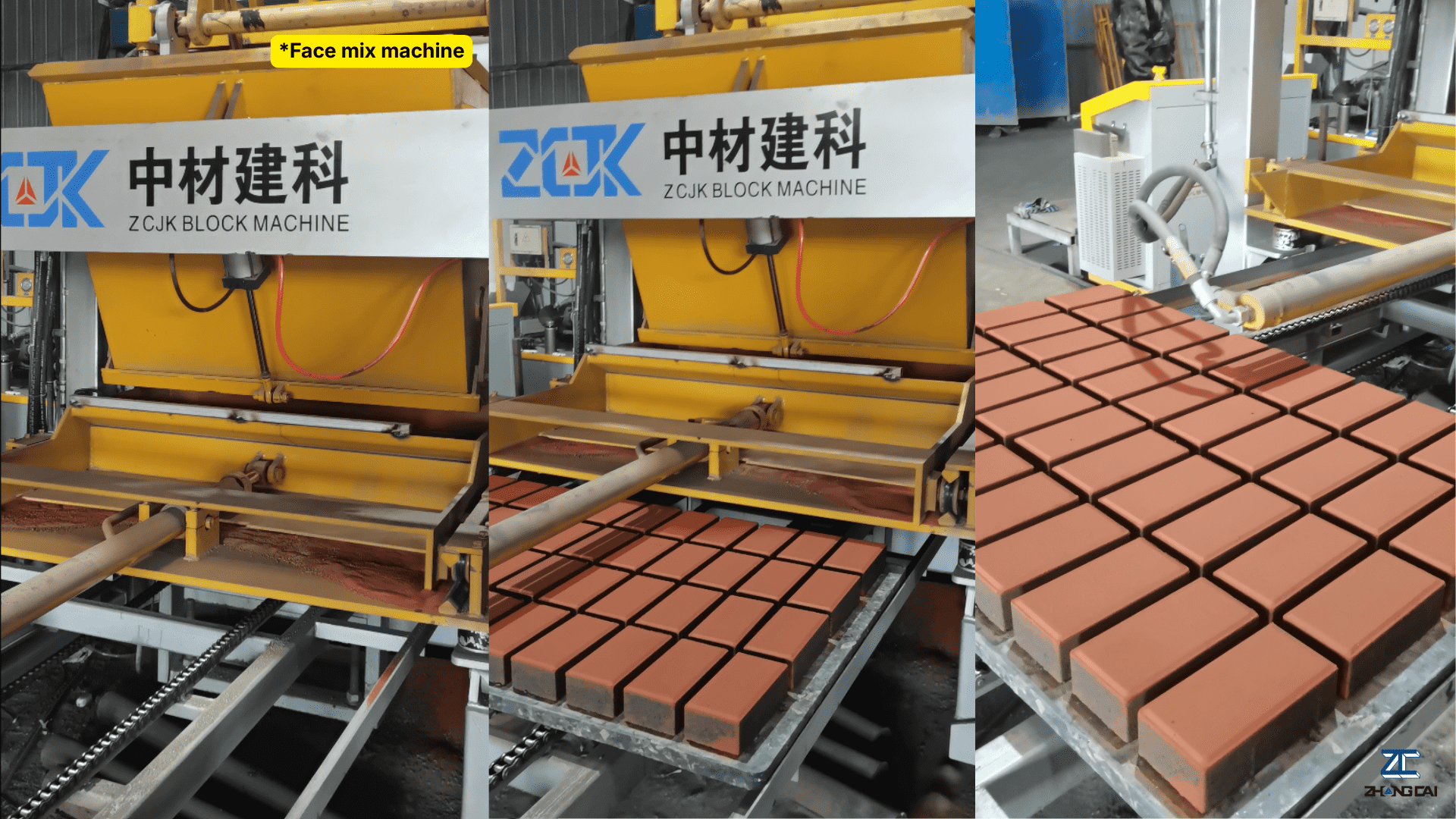

Machines such as the ZC900 and ZC1000 utilize dual-hopper systems specifically designed for face-mix production:

• the first hopper fills the mold with the coarse base mix

• the vibration table settles the material

• the second hopper applies the pigmented face mix

• the hydraulic tamper compresses both layers simultaneously

The servo hydraulic system allows highly responsive pressure adjustment during the molding cycle, helping ensure strong layer bonding and long-term structural integrity.

As a result, manufacturers can achieve more consistent structural performance requirements for premium interlocking pavers.

5. The Financial Return: Lower Costs, Higher Premium Value

By aligning production capabilities with modern hardscape design trends, manufacturers can significantly improve long-term ROI.

Modern automatic paver production lines can operate with relatively low labor requirements while maintaining stable high-volume production.

Depending on plant configuration and automation layout, manufacturers can maintain efficient operational costs through:

• reduced labor dependency

• optimized pigment consumption

• efficient raw material utilization

• stable automated production

At the same time, premium colored pavers can often achieve higher market pricing because of their visual quality and long-term durability.

This creates an important competitive advantage:

manufacturers can produce premium-value products while maintaining highly efficient production costs.

6. Conclusion: Capitalizing on the Hardscape Trend

As the CMHA continues to emphasize, interlocking concrete pavers are becoming increasingly popular because of their durability, lifecycle value, and aesthetic flexibility.

For block manufacturers, the opportunity is clear:

the future of profitable hardscape production depends not only on product appearance, but also on efficient material utilization and production precision.

Investing in a block making machine equipped with advanced dual-layer face mix technology allows manufacturers to produce premium colored pavers while maintaining better raw material efficiency and long-term profitability.

Ready to Expand into Premium Colored Paver Production?

Discover how dual-layer face mix technology can help your factory produce high-value interlocking pavers with greater material efficiency and long-term profitability.

Contact our specialists today to receive:

• customized production line recommendations

• face mix formulation guidance

• technical specifications and factory quotations

FAQ

1. What is face mix technology in paver production?

Face mix technology is a double-layer production method where the structural base layer and colored surface layer are produced together during one molding cycle.

2. Why are colored pavers more profitable than gray blocks?

Colored pavers generally have higher market value because they offer improved appearance, design flexibility, and premium landscaping applications.

3. How do block making machines produce double-layer pavers？

Modern block making machines use dual-hopper systems to separately distribute the base mix and the pigmented face mix before simultaneous compaction.

4. What helps prevent delamination in colored pavers?

High-frequency vibration, stable hydraulic pressure, and synchronized compaction help improve bonding between the base layer and the face mix layer.
