1. Introduction
Selecting the right concrete block making machine is one of the most important decisions for block manufacturers, construction contractors, and building material suppliers. Equipment selection directly affects production capacity, product consistency, labor requirements, maintenance, and the overall economics of a block plant.
Although different machines use different drive and transmission systems, the basic objective remains the same: to transform a low-slump or dry-cast concrete mixture into accurately shaped and sufficiently compacted masonry products. The two broad equipment configurations commonly discussed in the industry are mechanical block machines and hydraulic block machines.
The important distinction is not that one machine vibrates and the other does not. Both rely on vibration and compaction. The major difference is how mechanical movement and pressing force are generated and controlled.
Key Takeaway: Mechanical-transmission block machines use electric motors, gears, shafts, eccentric mechanisms, and linkages to generate machine movement and vibration. Hydraulic block machines use hydraulic power units and cylinders for controlled pressing and machine actuation, typically combined with a dedicated vibration system. For commercial plants, hydraulic and automated systems generally provide greater flexibility in automation and production control.
2. How Does a Concrete Block Making Machine Work?
Concrete masonry units are commonly manufactured from relatively dry, stiff concrete mixtures. The mixture is placed into molds and consolidated through vibration and compaction before rapid demolding and curing. Industry references from the American Cement Association and Concrete Masonry & Hardscapes Association describe vibration, compaction, demolding, and curing as key stages in CMU manufacturing.

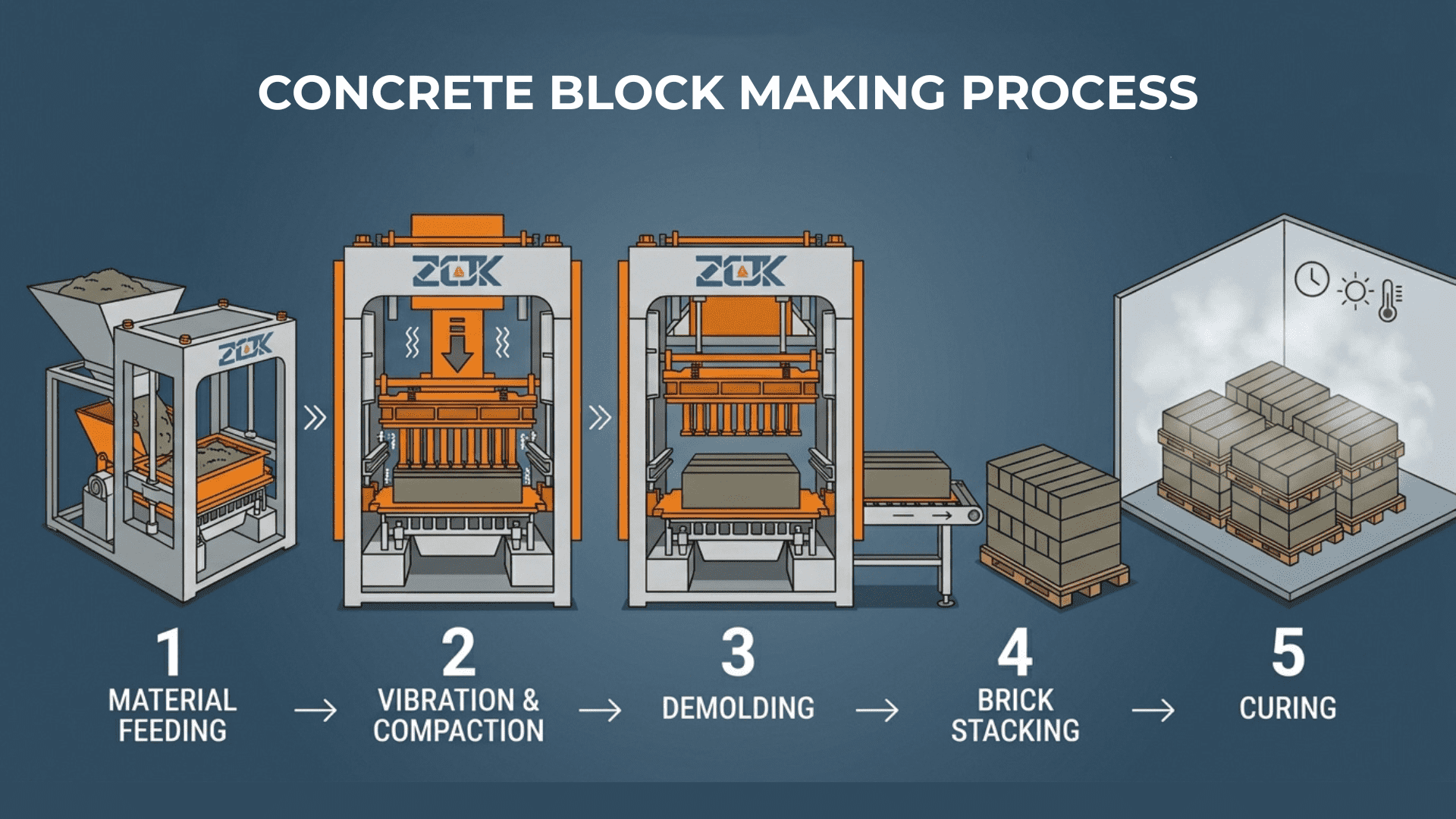

A typical concrete block production process includes four main stages:
Raw Material Feeding: Cement, sand, aggregate, fly ash, or other approved materials are proportioned and mixed according to the required product and mix design. The finished mixture is transferred to the block machine feed hopper.
Feeding, Vibration and Compaction: The concrete mixture enters the mold cavities. The machine uses controlled vibration together with pressing/compaction to consolidate the material and form the blocks or paving products.
Demolding: After the forming cycle, the mold and pressing system separate from the freshly formed products. The green blocks remain on the production pallet for transfer to the next stage.
Transfer, Stacking and Curing: Fresh blocks are conveyed and stacked before curing. The curing method depends on the plant configuration and product requirements. After sufficient curing, the finished products can be handled, stored, and delivered.
The quality of the final block depends on more than machine force alone. Mix proportion, aggregate grading, moisture content, mold condition, vibration parameters, compaction, demolding, and curing all influence product consistency and performance.
ASTM C90-24a, for example, specifies requirements for dry-cast loadbearing concrete masonry units rather than defining compliance according to a machine's hydraulic pressure.
3. Mechanical Concrete Block Machines: Working Principle and Features
Working Principle
A mechanical block machine uses an electric motor and mechanical transmission components such as gears, shafts, eccentric mechanisms, cams, or linkages to convert rotational power into the movement required for feeding, pressing, demolding, and vibration.
The exact configuration varies between machines. In general, mechanical transmission systems have a relatively straightforward structure and are suitable for applications where operators prioritize simple equipment, lower initial investment, and easy mechanical maintenance.
Key Advantages
Lower Initial Investment: Compact mechanical machines are often positioned as economical solutions for small-scale block production.
Straightforward Mechanical Structure: Conventional gears, shafts, bearings, and other mechanical components are familiar to many maintenance teams and can be serviced without a complex hydraulic system.
Suitable for Small-Scale Production: Compact machines can be practical for local block yards, small contractors, and startups where production requirements and product variety are relatively limited.
ZCJK Mechanical and Small-Machine Options
ZCJK's small-machine portfolio includes models such as QTJ4-40, QTJ4-40A, and QTJ4-20A. However, machine selection should be based on the specific model configuration rather than assuming that every small block machine uses the same transmission system.

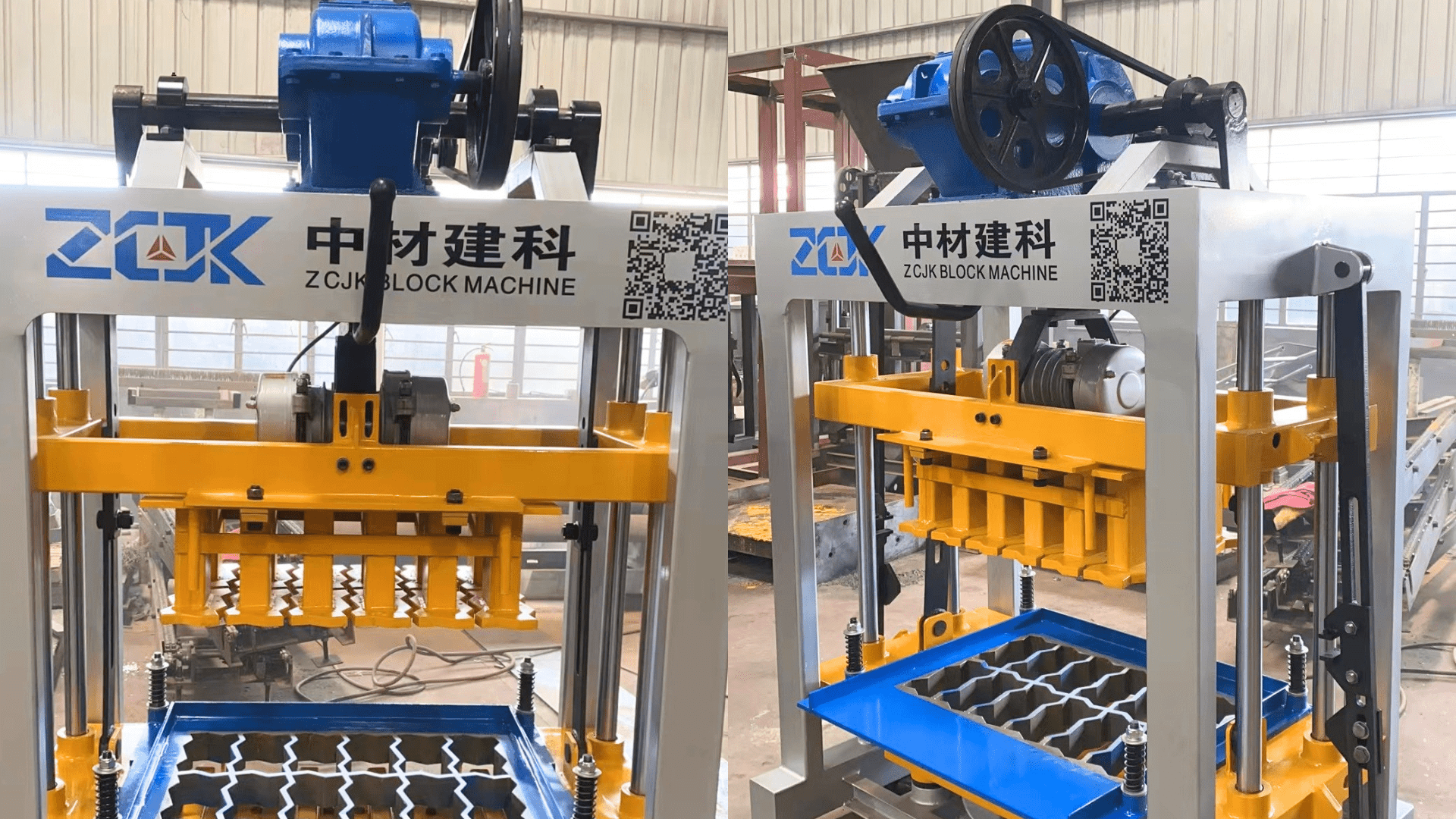

For example, the ZCJK QTJ4-40 is listed as a manual block making machine with a 60–70 second cycle time and 48 kN excitation force, making it substantially different from ZCJK's high-output automated hydraulic models.
4. Hydraulic Concrete Block Machines: Working Principle and Features
Working Principle
Hydraulic block machines use a hydraulic power unit, hydraulic cylinders, valves, and related control components to generate and regulate machine movement and pressing force. The hydraulic system works together with the machine's vibration system to consolidate the dry concrete mixture inside the mold.

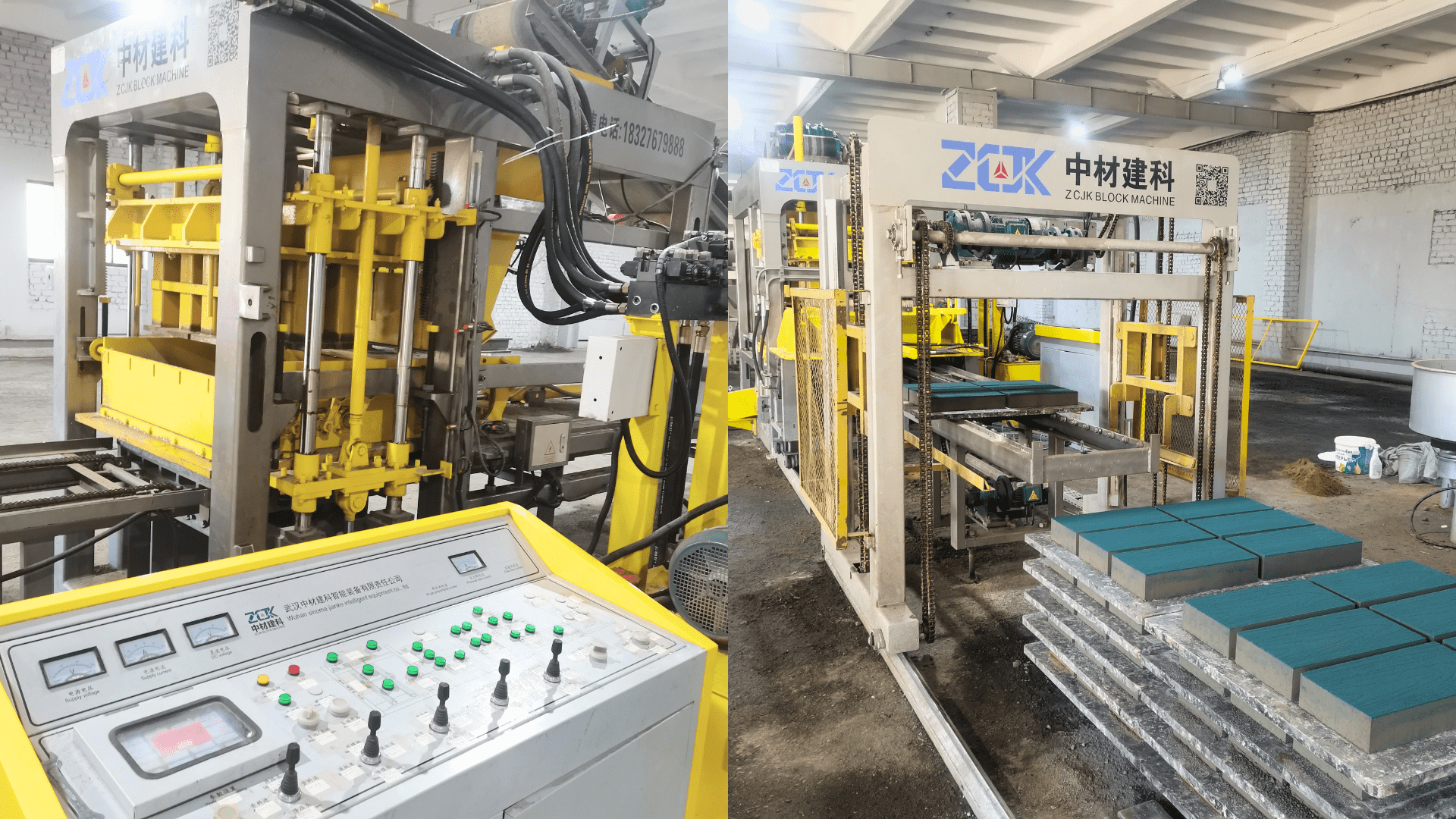

Modern hydraulic block machines are commonly integrated with PLC control systems, allowing operators to manage production sequences and adjust operating parameters according to the machine model, mold, product, and material characteristics.
The combination of controlled pressing and vibration is particularly useful for automated production because it provides repeatable forming conditions and can be integrated with automatic feeding, pallet handling, conveying, and stacking systems.
Key Advantages
Controlled Compaction and Consistency: Hydraulic systems can provide controlled pressing action that works together with the vibration system to form dense and consistent products.
Product Flexibility: By changing molds and adjusting production parameters, one machine can produce different types of hollow blocks, solid bricks, paving bricks, interlocking blocks, and other concrete products, subject to the machine's forming area and mold design.
Higher Automation Potential: Hydraulic machines can be integrated with PLC control, automatic pallet feeders, conveyors, stackers, batching systems, and mixers to create complete block production lines.
Typical ZCJK Hydraulic Models
ZCJK's hydraulic and automated range includes QTY4-18, QTY4-15, QTY6-15, QTY8-15, ZC900, ZC1000, and ZC1200.
For example, ZCJK lists the QTY4-15 with a 15–25 second cycle time and 68 kN excitation force, while the QTY6-15 uses a dynamic-static table and is listed with a 15–25 second cycle time and 70 kN excitation force.
For higher-output plants, the ZC series provides substantially larger forming areas and higher vibration forces. The ZC900, ZC1000, and ZC1200 are listed with 100 kN, 110 kN, and 130 kN excitation forces respectively, with molding cycles of approximately 12–22 seconds.

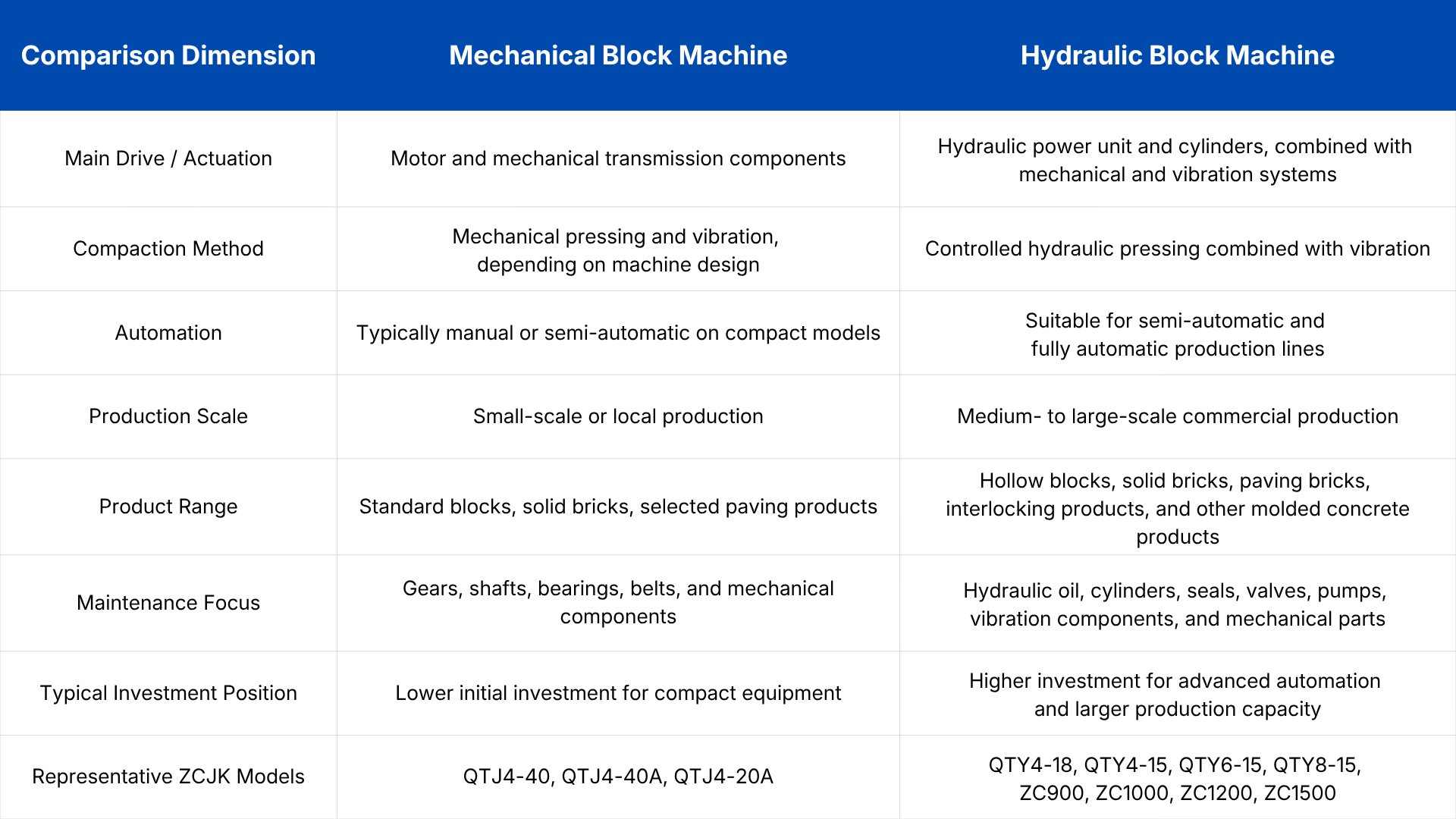

5. Mechanical vs. Hydraulic Block Machines: Technical Comparison
The table should be treated as a general equipment comparison rather than an absolute classification. Specific specifications vary by machine model and production configuration.
6. How to Choose the Right Concrete Block Making Machine
The correct machine should be selected according to required production capacity, target products, investment budget, automation level, available labor, raw materials, and local market requirements.
Scenario A: Small-Scale Production
A compact mechanical or semi-automatic machine may be suitable when you are starting a local block business, have limited initial capital, or primarily supply standard blocks and simple concrete products to a local market.
Scenario B: Medium Hydraulic Production
A hydraulic machine such as the QTY series is more suitable when you need stable production of hollow blocks, solid bricks, paving products, or interlocking blocks and want to reduce manual handling through automated feeding and stacking.
Scenario C: Large Automated Production
For commercial block factories and infrastructure-oriented production, larger machines such as the ZC900, ZC1000, and ZC1200 provide larger forming areas, high vibration force, short molding cycles, and integration with batching, mixing, pallet handling, conveying, and stacking systems.
The correct machine should ultimately be selected from the required block dimensions, production target, number of cavities per mold, available raw materials, local electricity supply, factory layout, and desired automation level rather than machine size alone.
7. Conclusion
Understanding the working principle of concrete block making machines helps manufacturers choose equipment according to their actual production requirements.
Mechanical-transmission machines can provide a practical solution for small-scale and cost-sensitive operations, while hydraulic and automated systems are generally better suited to manufacturers seeking higher production capacity, greater process control, and integration with automated production lines.
However, machine type alone does not determine final product quality. Mix design, material quality, moisture control, vibration and compaction, mold accuracy, demolding, and curing all contribute to the performance and consistency of concrete blocks.
ZCJK provides small, medium, and large block making solutions, from compact QTJ machines to QTY hydraulic systems and high-capacity ZC900, ZC1000, and ZC1200 production lines.
Planning a concrete block production plant?
Contact the ZCJK engineering team for a machine recommendation based on your target block type, production capacity, raw materials, factory conditions, and automation requirements.
Frequently Asked Questions
1.Can a mechanical block machine produce paving bricks?
Yes, if equipped with a suitable mold and forming system, while final quality depends on the mix, vibration, compaction, mold design, and curing process.
2.Does hydraulic technology automatically produce stronger blocks?
No, block strength depends on the overall production process, including materials, mix design, compaction, and curing.
3.What maintenance does a hydraulic block machine require?
Regular maintenance should cover hydraulic oil, filters, pumps, valves, cylinders, seals, vibration systems, molds, and other mechanical components.
4.How should a block factory estimate ROI?
ROI should consider machine investment, production capacity, utilization, materials, electricity, labor, maintenance, selling price, transportation, and local market demand.
