What is a Concrete Block Mold in Reinforced CMU Construction?
A concrete block mold is a precision steel component installed in a block making machine that determines the shape, cavity structure, and dimensional accuracy of concrete blocks used in CMU (Concrete Masonry Unit) construction.
1. Introduction: The Real Challenge in Reinforced CMU Construction
In previous discussions on Poured Concrete vs. Concrete Block Walls: Which is Best for Your 2026 Infrastructure Project?, we explained why reinforced Concrete Masonry Unit (CMU) systems are increasingly used in modern infrastructure projects.
When combined with steel reinforcement and vertical grouting, reinforced concrete block systems offer strong structural performance, efficient construction, and improved cost control.
However, real-world construction introduces strict dimensional requirements. Contractors often face issues such as:
Misaligned rebar channels
Inconsistent grout core alignment
Structural voids in wall systems
Difficulty inserting reinforcement steel
Although these problems appear on-site, their root cause is often upstream — at the block manufacturing stage.
The precision of the concrete block mold directly determines block geometry, cavity alignment, and final structural performance.
2. Why Mold Precision Directly Impacts CMU Wall Performance
For reinforced CMU systems to achieve structural design strength, grout cores and reinforcement channels must align consistently across the entire wall.
Even small dimensional deviations can accumulate and lead to major installation issues.
Core Alignment Issues
If a concrete block mold lacks precision, internal cavities may shift slightly. When stacked, this leads to:
Restricted grout flow
Hidden structural voids
Reduced load performance
Production Stress Factors
During high-output production on automatic block machines such as the ZCJK ZC series, molds are exposed to:
Continuous vibration
Hydraulic compression
Abrasive aggregate friction
Low-quality molds can deform over time, causing:
Edge wear
Dimensional instability
Reduced block consistency
3. Common Concrete Block Mold Problems & Production Efficiency Impact
In real production environments, concrete block molds often face long-term operational challenges that directly affect product quality and construction performance.
Common Mold Problems
Mold wear and surface deformation
Cavity misalignment
Thermal and mechanical fatigue cracking
Long-term dimensional drift
These issues can lead to:
Rebar misalignment
Material waste
Product rejection
Production delays
Higher maintenance costs
4. ZCJK Concrete Block Mold Engineering Technology
At ZCJK, mold manufacturing is treated as precision engineering.
We provide OEM/ODM concrete block molds compatible with automatic and semi-automatic block machines.
Key Technical Features
1. High-manganese steel material
Provides excellent wear resistance under continuous abrasive production.

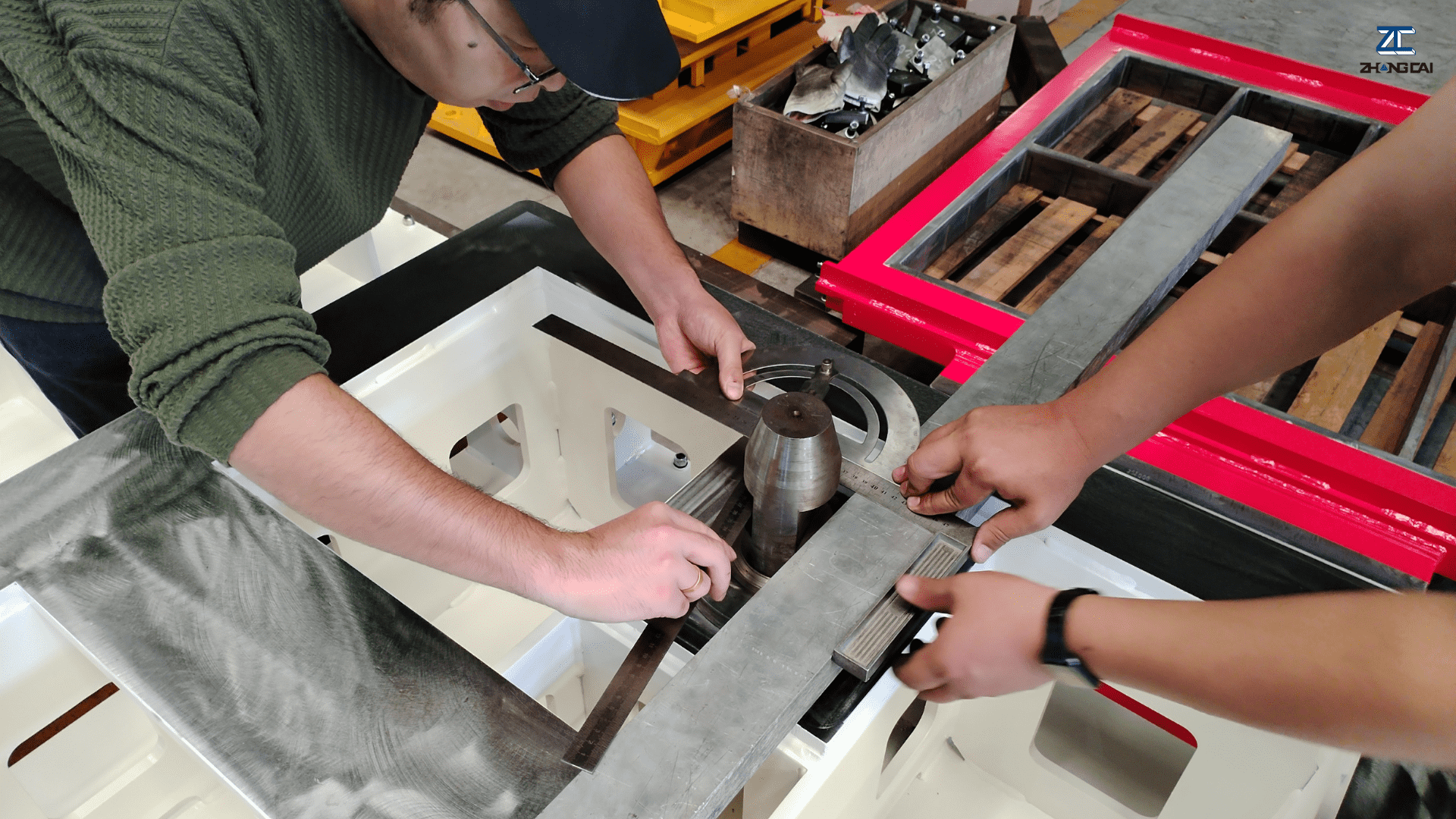

2. CNC precision manufacturing
Ensures stable geometry and tight dimensional tolerances.
3. Heat treatment process
Improves hardness while maintaining toughness for long-term durability.
ZCJK High-End Mold Solutions
ZCJK high-precision molds are specifically engineered to solve the issues mentioned above through:
High-manganese steel material improves wear resistance
CNC precision machining ensures structural stability
Heat treatment enhances fatigue resistance
Reinforced structural design extends service life
Final performance outcomes:
More stable product quality
Lower downtime rate
Longer service life
Higher structural consistency
5. Types of Custom Concrete Block Molds
Modern infrastructure projects require different block geometries. Custom concrete block molds enable flexible production for multiple applications.

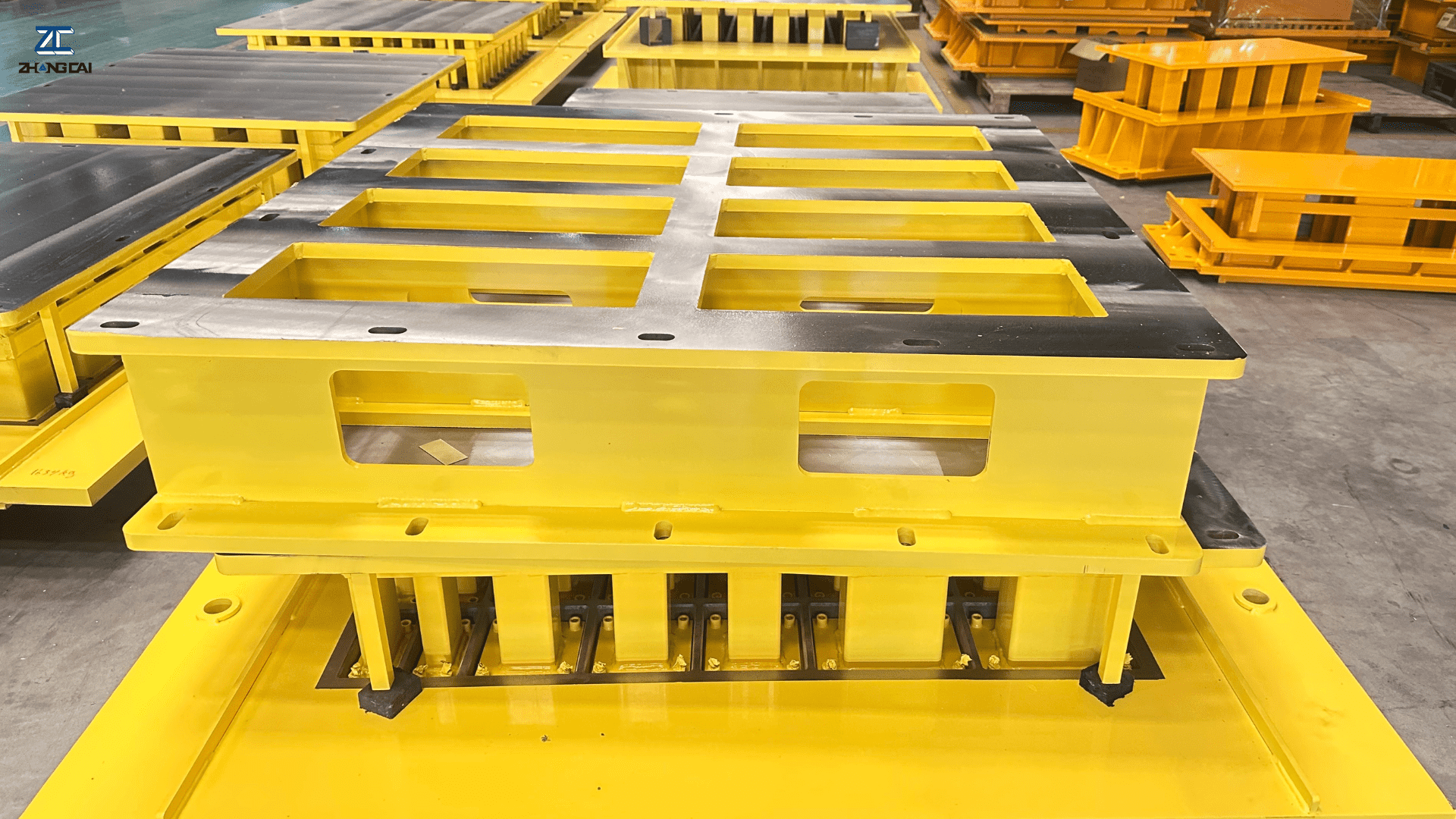

Hollow Block Molds
Used in structural CMU walls:
Open core
Semi-closed core
Blind core designs
Single or double grout slots
Interlocking Block Molds
Used in hydraulic and civil engineering:
Slope protection
River embankments
Erosion control
Paver & Curbstone Molds
Used in urban infrastructure:
Holland pavers
Wave pavers
Grass pavers
Curbstones
Solid Block Molds
Used for high-density structural blocks and foundations.

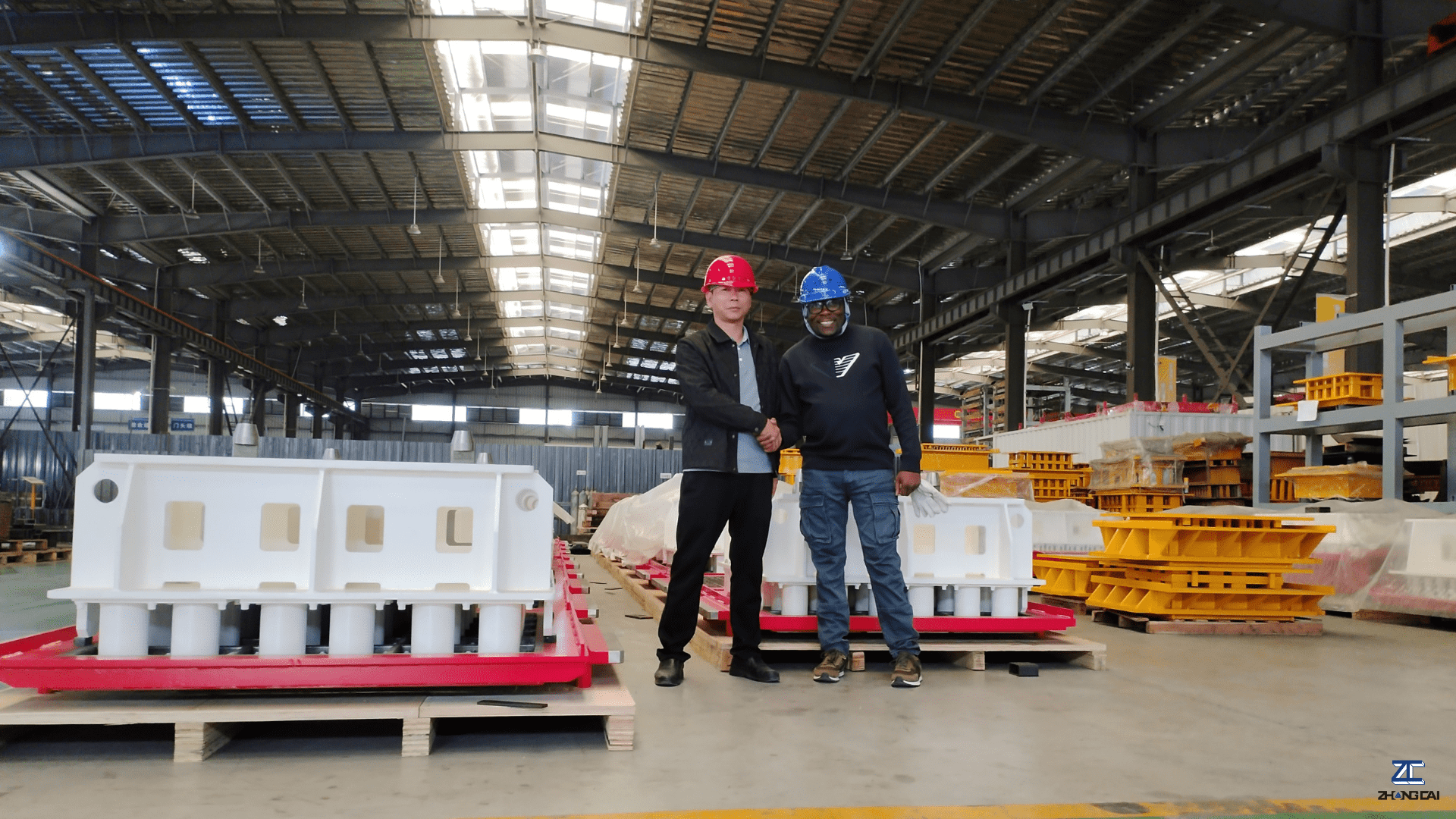

6. Case Study: Custom Mold Project in Saudi Arabia
ZCJK delivered a custom concrete block mold solution for a client in Saudi Arabia requiring compatibility with Masa block machines.
The project focused on high-strength hollow blocks used in infrastructure and retaining wall applications under extreme environmental conditions.
Key requirements included:
High wear resistance
Dimensional stability
Compatibility with European production systems
Long service life in harsh climates
The final solution integrated seamlessly into the client’s production line while maintaining consistent output quality.
For more details about the project case, please refer to our previous blog:
ZCJK Delivers High-End Custom Molds Compatible with Masa Block Machines
7. Conclusion: Precision Defines Construction Quality
In reinforced CMU infrastructure projects, production precision begins at the mold level.
Investing in high-quality concrete block molds ensures:
Better structural performance
Lower construction risk
Higher production efficiency
Improved market competitiveness
Optimize Your Concrete Block Production
Partner with ZCJK for custom concrete block mold solutions engineered for your production needs.
Contact us for:
CAD evaluation
OEM/ODM mold design
Machine compatibility support
Technical consultation
Factory quotation support
FAQ About Concrete Block Molds
1. What is a concrete block mold?
A steel tool used in block machines to shape concrete into specific block designs.
2. Why is mold precision important?
It ensures correct alignment of cavities, reinforcement steel, and grout flow.
3. What materials are used in ZCJK molds?
High-manganese steel with heat treatment for durability.
4. Can molds fit Masa machines?
Yes, custom molds can be designed for Masa and other systems.
5. How long do molds last?
Depends on production intensity and material quality; high-quality molds last significantly longer.
6. What products can molds make?
Hollow blocks, pavers, curbstones, interlocking blocks, and solid blocks.
