In 2026, growing infrastructure and urban construction projects continue to increase global demand for concrete blocks, paving stones, and interlocking bricks.
For investors entering or expanding a concrete block manufacturing business, choosing between a manual block making machine and an automatic block making machine is a key decision.
Manual machines offer lower investment costs and simple operation for small-scale production, while an automatic block production line provides higher capacity, more consistent quality, and better scalability.
The right choice depends on production goals, labor costs, power availability, product requirements, and future expansion plans.

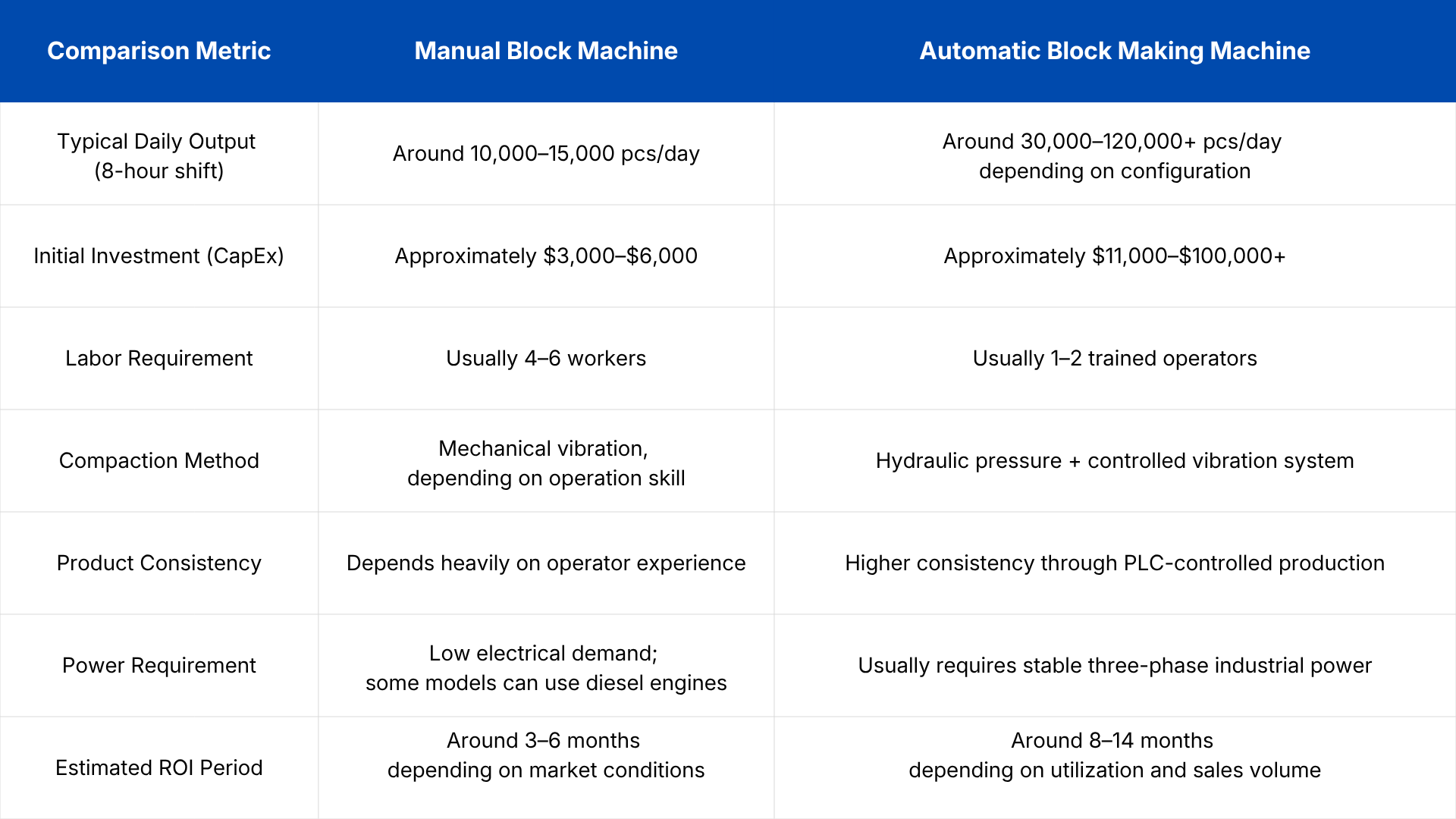

1. Manual vs Automatic Block Making Machine: Core Specification Comparison
To help investors understand the practical differences between these two equipment types, the following comparison is based on standard concrete bricks sized 240 × 115 × 53 mm and an 8-hour working shift.
The actual production capacity, investment return, and product quality depend on machine configuration, raw material conditions, working hours, and local market demand.
2. Production Speed and Mold Cycle Time
One of the biggest differences between manual and automatic systems is production efficiency.

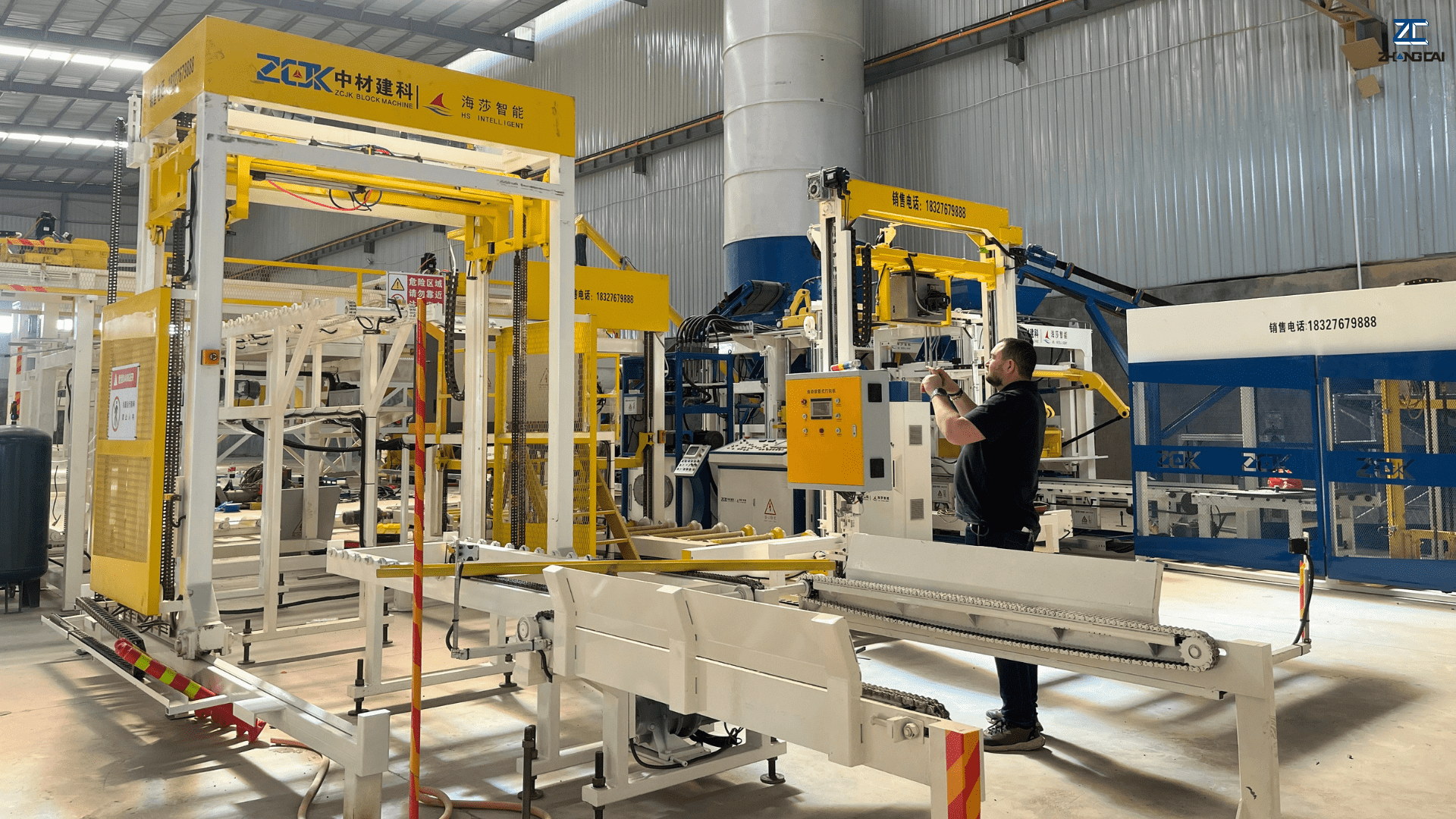

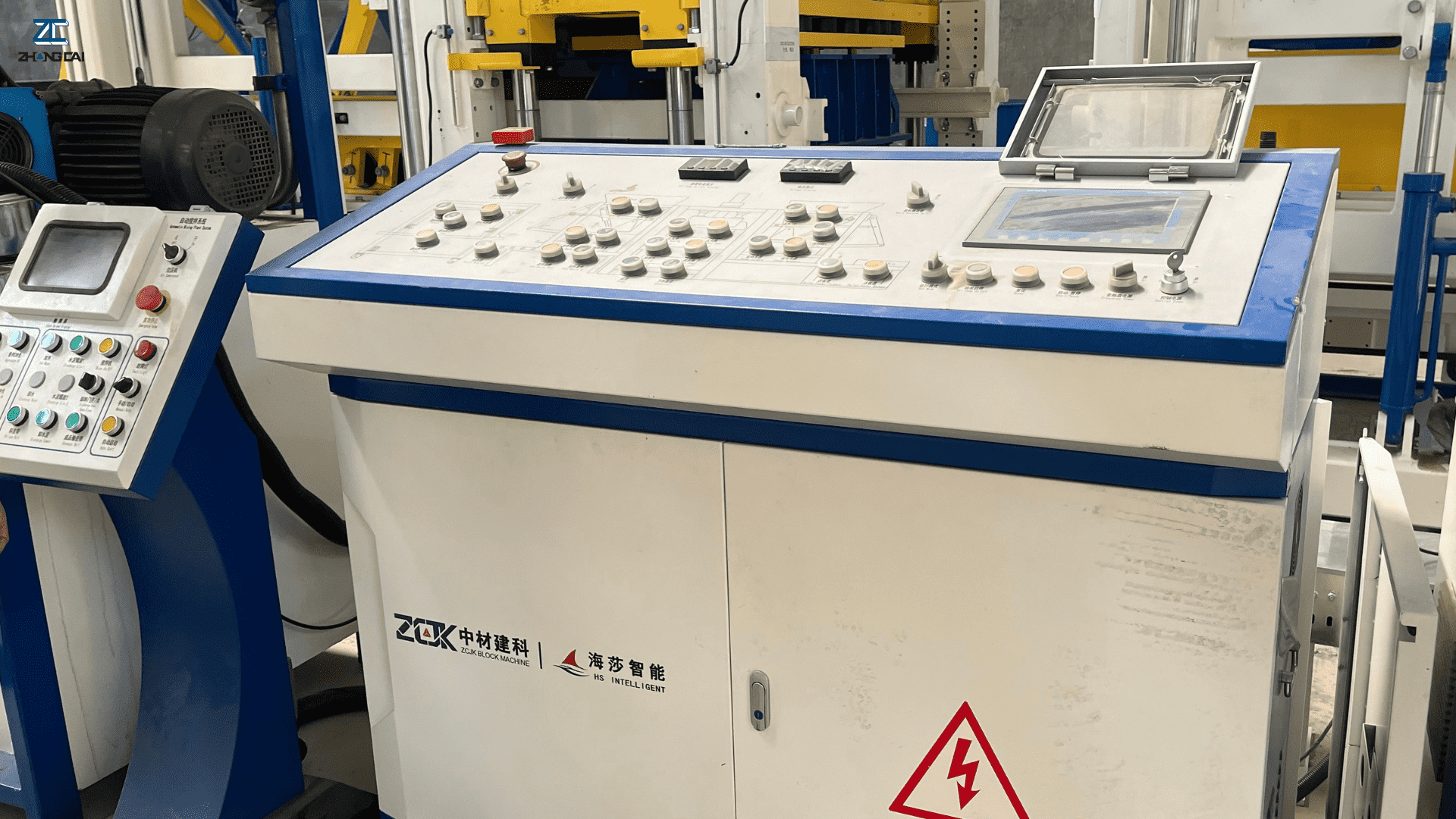

Modern automatic block making machines use PLC control systems, hydraulic technology, and industrial automation components to coordinate material feeding, vibration, pressing, and demolding processes.
Depending on the machine model and product size, many automatic systems can achieve molding cycles of approximately 15–20 seconds per mold.
By comparison, manual machines rely more heavily on operator experience for feeding, vibration control, and block removal.
Typical cycle times are usually longer, around 45–70 seconds per mold, and production consistency may decrease during long working shifts because of operator fatigue.
For businesses targeting large construction contracts or stable daily supply, the higher automation level of an automatic block production line provides better production planning and reduces dependence on manual operation speed.
3. Product Density, Strength Consistency, and Commercial Quality
Many buyers assume that the machine alone determines block strength. In reality, concrete block performance depends on multiple factors, including:
Cement ratio
Aggregate grading
Water content
Vibration efficiency
Compaction pressure
Curing conditions
A machine provides the production conditions needed to achieve consistent quality.
A hydraulic block machine combined with controlled vibration technology can provide stronger compaction performance by reducing internal air gaps and improving concrete density.
This allows manufacturers to produce blocks suitable for applications requiring higher strength and durability when using an optimized concrete mix and proper curing process.
Manual machines can successfully produce basic concrete blocks, garden blocks, and non-load-bearing products. However, maintaining consistent quality for large commercial projects can be more challenging because production depends more heavily on operator skills.
For customers supplying municipal projects, commercial buildings, or large-scale infrastructure applications, a PLC controlled block machine offers advantages in production stability and quality control.
4. Labor Cost and Operational Efficiency
With increasing labor costs in many regions, workforce management has become an important factor affecting manufacturing profitability.
A traditional manual production setup usually requires several workers responsible for:
Raw material preparation
Concrete feeding
Machine operation
Block removal
Pallet handling
An automatic block production line integrates multiple processes, including:
Automatic material feeding
Controlled molding
Product transportation
Automatic stacking (depending on configuration)
This allows factory owners to reduce direct labor requirements to approximately 1–2 trained operators for machine operation and production monitoring.
Reducing manual intervention can help manufacturers lower payroll pressure, improve workplace safety, and create a more stable production process.
5. ROI Analysis: Manual vs Automatic Block Machine Example
To evaluate the long-term economic impact, we can compare labor costs using a practical Central Asia market example.
Calculation Formula:
Labor Cost Per Brick = Number of Workers × Daily Wage ÷ Daily Brick Output
Monthly Labor Savings = (Manual Daily Labor Cost – Automatic Daily Labor Cost) × Working Days Per Month
Example Benchmark: Average unskilled labor wage: $20/day
Manual Production Setup:
6 workers × $20/day = $120/day labor cost
Daily output: 15,000 bricks
Labor cost per brick: $120 ÷ 15,000 = $0.008 per brick
Automatic Production Setup:
2 skilled operators × $25/day = $50/day labor cost
Daily output: 60,000 bricks
Labor cost per brick: $50 ÷ 60,000 = $0.00083 per brick
Based on labor cost only, upgrading from manual production to automatic production can reduce direct labor cost per brick by approximately 89%.
However, actual ROI depends on additional factors such as electricity cost, equipment maintenance, production utilization rate, raw material prices, and local market demand.
Under stable production conditions, an automatic system can generate significant long-term savings and help manufacturers recover the higher initial investment within approximately 8–14 months.
6. How to Choose the Right Block Making Machine for Your Project
Before purchasing equipment, investors should evaluate their current production goals and future business plans.
Choose a Manual Block Machine If:
Limited Startup Budget:
Your initial equipment investment is below approximately $6,000.
Limited Power Availability:
Your production site has unstable electricity supply or limited access to industrial three-phase power.
Small Production Target:
Your local market demand is below 15,000 pieces per day.
Low Labor Cost Environment:
Affordable labor is available and production volume does not require high automation.
Choose an Automatic Block Making Machine If:
Commercial Production Goals:
You plan to establish a scalable concrete block manufacturing business.
Higher Production Demand:
Your customers require stable output of 30,000–120,000+ pieces per day.
Quality Consistency Requirements:
You supply commercial construction projects, paving projects, or government-related infrastructure.
Future Expansion Plans:
You want equipment that can support production growth and reduce dependence on manual labor.
For many manufacturers, the ideal investment strategy is selecting equipment with future upgrade potential.
Some businesses begin with semi-automatic systems and gradually expand toward fully automatic production lines as market demand increases.
Looking for the right block making machine for your business?
Contact ZCJK to get a customized production solution, equipment recommendation, and professional support for your concrete block project.
Frequently Asked Questions
Q1: What is the average ROI period for an automatic block making machine?
A: Most automatic block production lines can achieve ROI within approximately 8–14 months, depending on production volume, sales channels, labor costs, electricity prices, and local market conditions.
Q2: Can manual block machines produce high-strength paving stones?
A: Manual machines can produce basic paving blocks and concrete products. However, producing high-strength paving stones usually requires optimized concrete mix design, effective vibration technology, proper compaction, and consistent production control, which are more commonly available in automatic systems.
Q3: What power supply is required for an automatic block machine?
A: Most automatic block machines require a stable three-phase industrial electricity supply, commonly 380V–440V, 50/60Hz. Complete production lines usually require approximately 25kW–75kW+, depending on machine model and auxiliary equipment. For areas with unstable power grids, an industrial generator can be considered.
Q4: How long does it take to train an operator for an automatic block machine?
A: With modern PLC touchscreen interfaces and automated safety systems, basic operator training usually takes approximately 3–5 days with technical guidance.
