Hydraulic Concrete Block Machine Maintenance Guide: Daily, Weekly & Monthly Checklists

1. Introduction: Why Preventive Maintenance Matters

Operating in harsh environments defined by heavy vibration, concrete dust, and continuous cycles, hydraulic concrete block machines require proactive preventive maintenance to prevent premature component wear, dimensional inaccuracy, and unexpected downtime.

Unplanned downtime carries severe financial risk—costing industrial operations an average of $169,889 per hour (ABB, 2026). Establishing a structured maintenance routine directly safeguards block quality, maximizes equipment availability, and controls long-term operating costs.

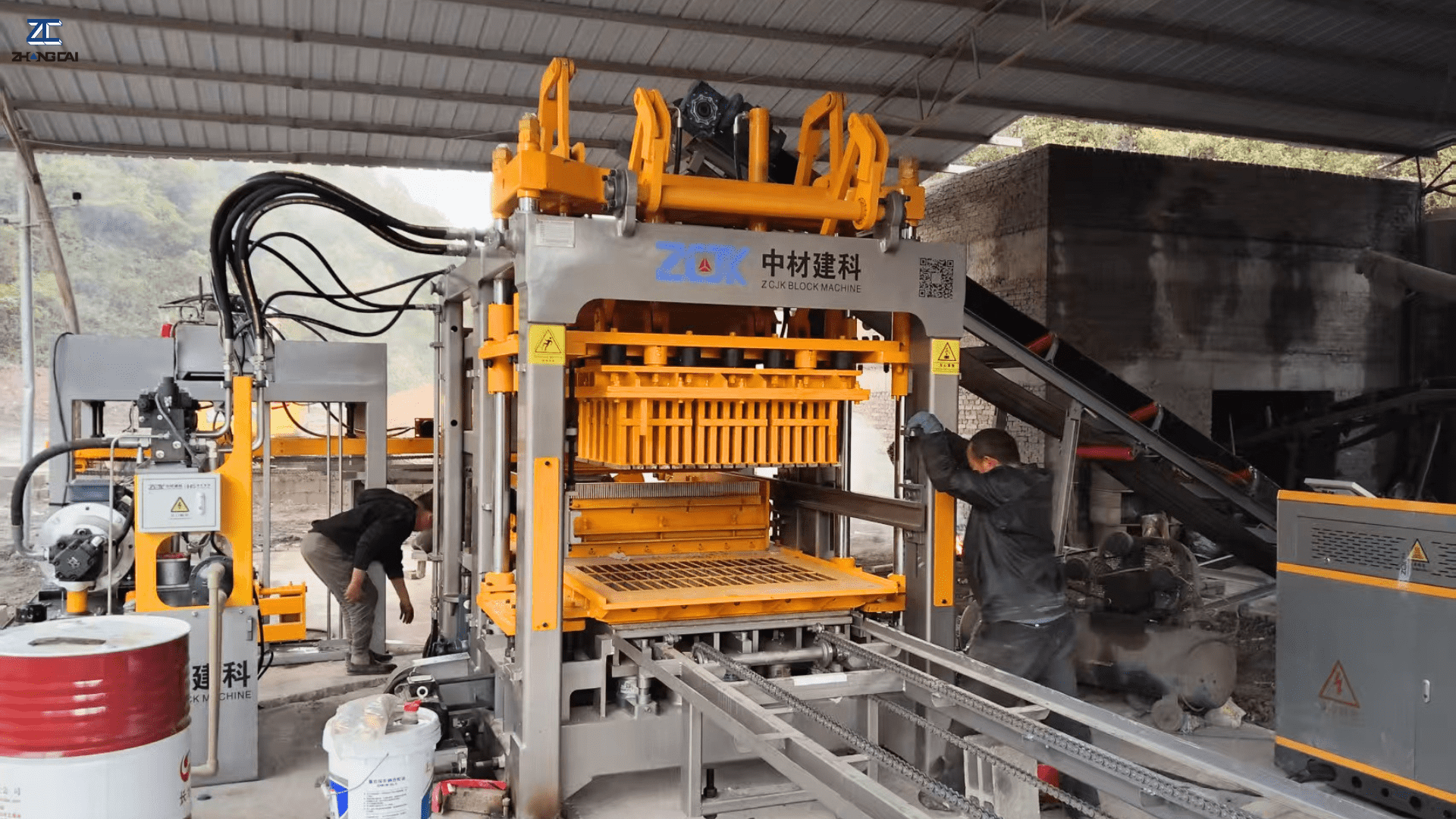

Core Focus Components: Hydraulic system, vibration assembly, molds, feeding system, electrical cabinet, sensors, lubrication points, and structural fasteners.

A structured daily, weekly, and monthly maintenance program helps operators identify small problems before they develop into major failures.

2. Daily Maintenance Checklist

Daily maintenance should focus on visual inspection, cleaning, lubrication where specified, and early detection of abnormal conditions.

2.1 Pre-Shift Hydraulic and Visual Checks

Before starting production:

• Hydraulic Oil Level: Check the reservoir level and keep it within the range specified by the machine manufacturer.

• Hoses and Fittings: Inspect hydraulic hoses, fittings, valve blocks, and cylinder areas for leakage, abrasion, cracking, or loose connections.

• Cylinder Rods and Seals: Check for oil leakage, scoring, corrosion, or abnormal wear.

• Sensors and Switches: Remove accumulated concrete dust from proximity sensors, limit switches, and other detection components.

• Machine Structure: Look for loose bolts, visible cracks, abnormal wear, or concrete buildup around the mold and vibration assembly.

Never check a high-pressure hydraulic leak with your hands. Stop the machine, isolate the hydraulic system, and follow the manufacturer's safety procedure before investigating a suspected leak.

2.2 Operational Monitoring During Production

Operators should monitor the machine while it is running rather than relying only on scheduled inspections.

Pay attention to:

• Hydraulic pressure stability

• Hydraulic oil temperature

• Unusual pump noise or vibration

• Irregular cylinder movement

• Abnormal vibration sounds

• Unexpected changes in molding cycle time

• Block height or surface consistency

Hydraulic oil temperature should be monitored according to the machine manufacturer's specification rather than applying one universal temperature range to every machine.

Persistent overheating may indicate low oil level, cooler problems, excessive relief-valve operation, contamination, or another hydraulic fault.

2.3 Post-Shift Cleaning

Remove concrete residue from:

• Mold surfaces

• Tamper or pressing components

• Feed box and feeding areas

• Pallet conveyor

• Production pallets

• Accessible areas around the vibration system

Use the cleaning method recommended for the specific machine. Protect electrical cabinets, sensors, connectors, and other sensitive components from direct water exposure.

Cleaning after each shift is particularly important because hardened concrete can interfere with feeding accuracy, mold seating, sensor operation, and product demolding.

3. Weekly Maintenance Checklist

Weekly maintenance should go beyond daily cleaning and focus on mechanical condition, electrical connections, hydraulic filtration, lubrication, and wear components.

3.1 Electrical Cabinet and Sensor Inspection

Before opening the electrical cabinet, isolate the power supply according to the plant's lockout/tagout procedure.

Check:

• Cooling fans and cabinet filters for excessive dust.

• Electrical terminals and connectors for looseness, overheating, or visible damage.

• Emergency-stop devices and safety interlocks for correct operation.

• Proximity sensors, limit switches, and cables for contamination or damage.

• PLC and control-panel fault records for recurring alarms.

Concrete plants generate significant dust, so maintaining clean control cabinets and reliable sensors is important for stable automated operation.

ZCJK's automatic block machines use PLC control systems, making electrical and sensor maintenance an important part of overall preventive maintenance.

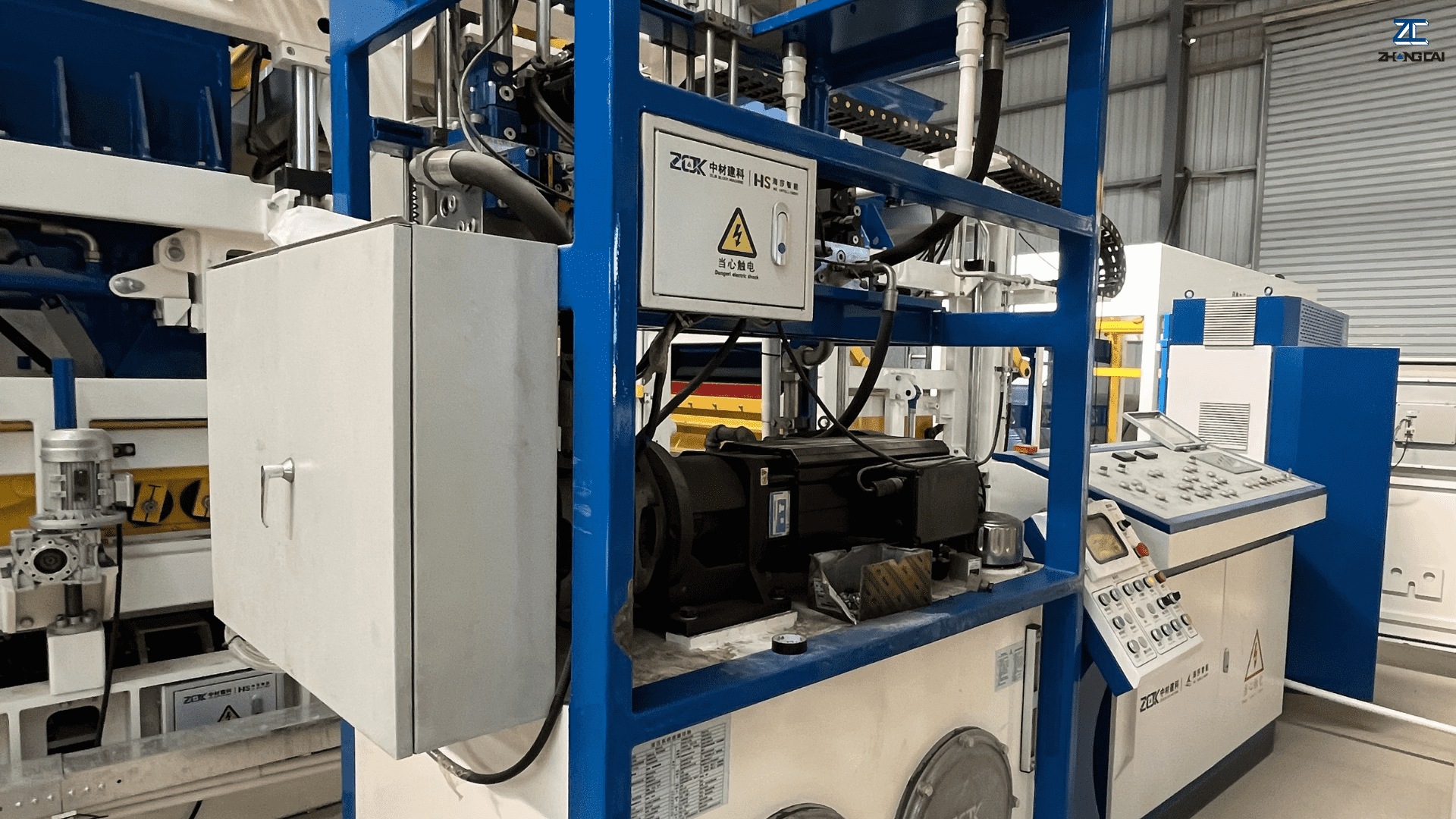

3.2 Hydraulic System Inspection

Inspect the hydraulic system for:

• Oil leakage around fittings and cylinders

• Damaged hoses

• Abnormal pressure fluctuations

• Filter indicator condition

• Cylinder rod condition

• Valve block leakage or contamination

Hydraulic filtration is especially important because contamination can accelerate wear in pumps, valves, cylinders, and other precision components.

Parker's hydraulic maintenance guidance notes that more than 75% of hydraulic system failures are associated with contamination. This should be understood as a general hydraulic-industry reference rather than a failure statistic specific to concrete block machines.

3.3 Lubrication and Mechanical Wear

Lubricate bearings, guide components, shafts, chains, or other designated points according to the machine manufacturer's lubrication chart.

Inspect:

• Guide columns and guide sleeves

• Vibration shaft bearings

• Conveyor chains and sprockets

• Drive belts

• Structural joints

• Mold support components

Do not select grease solely by habit. Use the lubricant grade specified for the particular component and operating conditions.

4. Monthly and Periodic Maintenance

Monthly maintenance should provide a more detailed inspection of the hydraulic, mechanical, electrical, and structural systems.

4.1 Hydraulic Oil Condition

Hydraulic oil should be inspected for visible contamination, abnormal color, water contamination, foaming, or unusual odor.

Possible warning signs include:

• Cloudy or milky oil: May indicate water contamination.

• Dark or burnt-smelling oil: May indicate overheating or oil degradation.

• Foaming: May indicate air entering the system or unsuitable operating conditions.

• Visible particles: May indicate contamination or internal wear.

However, visual inspection alone cannot determine hydraulic oil cleanliness. For critical equipment, oil analysis can provide more useful information about particle contamination, water, viscosity, oxidation, and wear metals.

The correct hydraulic oil viscosity grade should always follow the machine manufacturer's specification. ISO VG 46 and ISO VG 68 are common hydraulic-oil grades, but the appropriate grade depends on system design, pump type, ambient conditions, and operating temperature.

4.2 Structural and Fastener Inspection

Continuous vibration can gradually loosen or wear structural connections.

Inspect:

• Mold frame bolts

• Vibration assembly fasteners

• Guide-column connections

• Conveyor mounting bolts

• Hydraulic unit mounting points

• Safety guards

Use a calibrated torque wrench where torque verification is required, but always follow the torque values specified in the machine drawings or manufacturer's service manual rather than applying a universal torque table.

4.3 Filters, Hoses and Wear Components

Replace hydraulic filters, air breathers, hoses, seals, or other wear components according to the manufacturer's maintenance schedule and inspection results.

There is no universal replacement interval that applies to every hydraulic block machine. Operating hours, environmental dust, hydraulic oil condition, pressure cycles, hose routing, and component condition all influence service life.

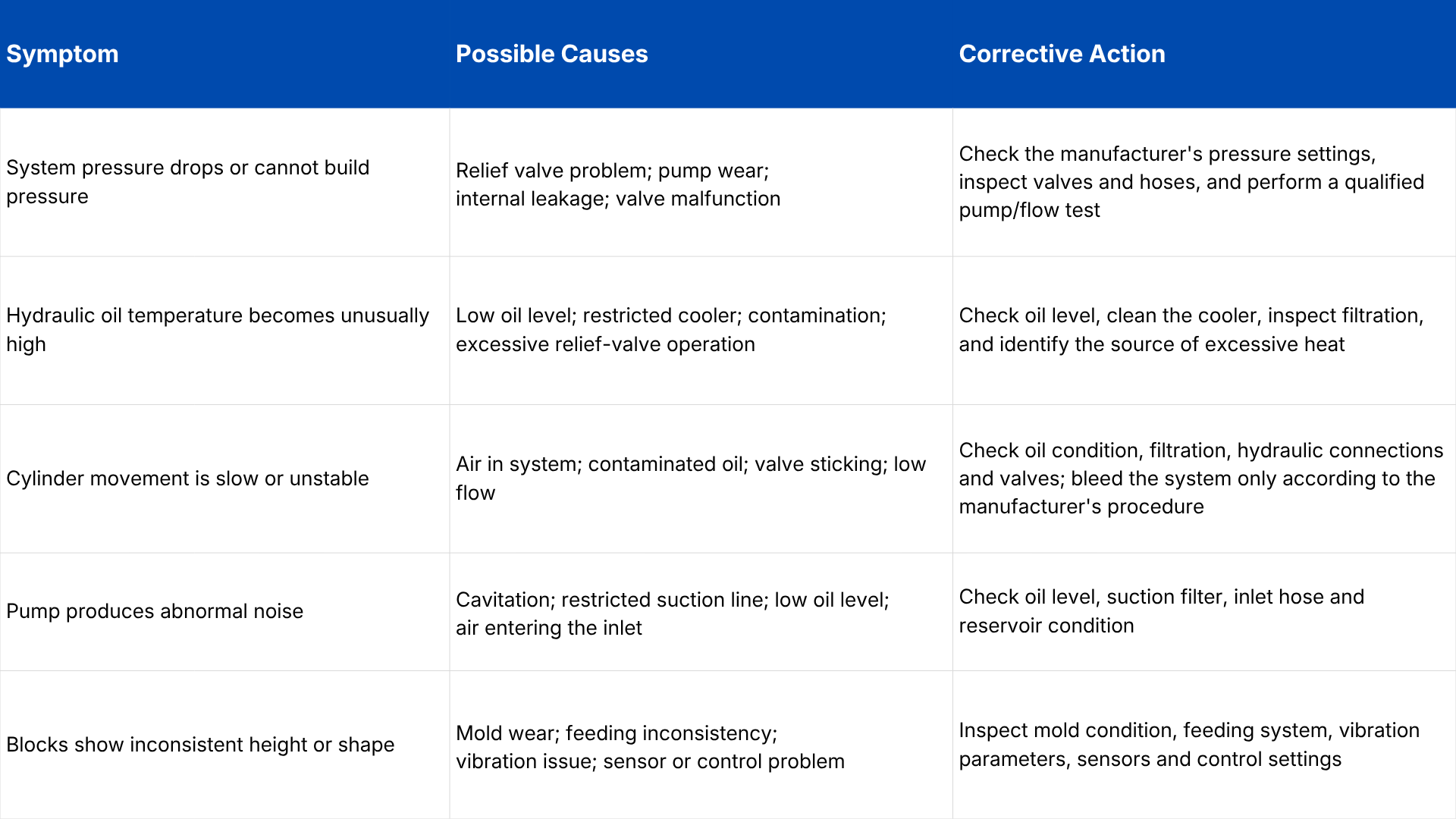

5. Hydraulic Concrete Block Machine Troubleshooting

Troubleshooting should begin with safe isolation and basic inspections. Hydraulic pressure settings should not be changed arbitrarily, because incorrect adjustments can damage components or create unsafe operating conditions.

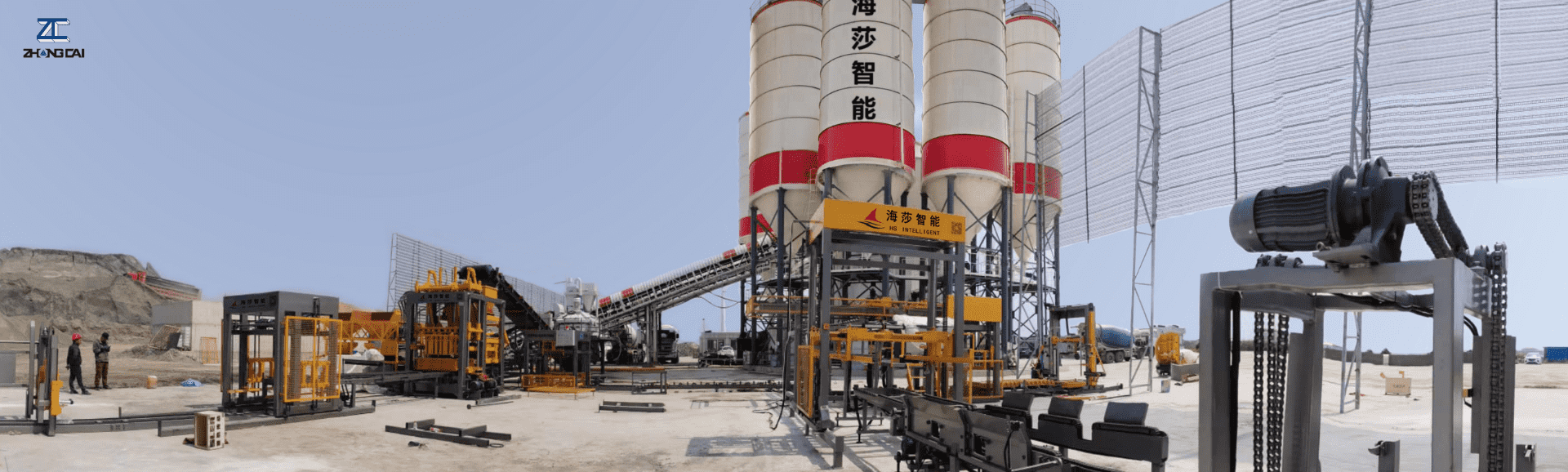

6. ZCJK Maintenance Considerations and Machine Capacity

ZCJK supplies concrete block machines ranging from compact equipment to fully automatic hydraulic production systems. Except for models QTJ4-4, QTJ4-40A, and QTJ4-20A, all other models are hydraulic block machines.

For example, the ZCJK QTY6-15 is currently listed with a 15–25 second cycle time, 70 kN excitation force, 40 kW total power, and an output of up to 57,600 standard bricks per 8-hour shift under the specified production configuration.

These specifications illustrate an important maintenance principle: maintenance requirements should be linked to the actual machine model, production configuration, operating hours, and environment.

For a high-output production line, operators should pay particular attention to:

• Hydraulic oil and filtration

• Vibration components

• Mold wear and alignment

• Pallet handling systems

• PLC and sensor condition

• Conveyor chains and bearings

• Structural fasteners

• Automatic feeding and stacking equipment

We recommends routine inspection of hydraulic stations, hoses, oil levels, and related components as part of concrete block machine maintenance.

7. Conclusion

Always keep in mind that the machine manufacturer's service manual, actual operating hours, environmental conditions, and inspection results should determine the final maintenance schedule.

A structured preventive maintenance program helps block manufacturers detect issues early, minimize downtime, and ensure reliable production throughout the equipment's lifespan.

Need professional support for your concrete block machine?

Contact us for model-specific maintenance guidance, spare parts support, and technical service.

FAQ

1. How often should a hydraulic concrete block machine be serviced?

Perform daily checks, weekly inspections, and periodic professional servicing according to the manufacturer's manual.

2. How do I know when hydraulic oil needs to be replaced?

Replace hydraulic oil when contamination, abnormal odor, water, foaming, viscosity changes, or other problems are detected.

3. What causes hydraulic oil to overheat in a block machine?

Common causes include low oil levels, poor cooling, clogged filters, excessive relief-valve operation, or unsuitable oil viscosity.

4. How can I prevent mold-related block defects?

Keep the mold clean, check for wear and alignment, and maintain proper feeding, vibration, and forming parameters.

5. Should hydraulic hoses be replaced after a fixed number of years?

Not necessarily; replace hoses based on the manufacturer's recommendations and their actual condition.
