How Automatic Pallet Feeders Improve Block Production Line Efficiency

1. Introduction: From Material Genetics to Plant Circulation

In our previous structural guide, we examined how automated concrete batching systems serve as the quality control core, injecting the perfect “internal genetics” into high-strength concrete masonry units (CMUs).

While many buyers focus on a block machine's compaction force or cycle speed, experienced operators know that its overall efficiency can be influenced by the pallet handling system. The automatic pallet feeder, pallet flipper, and cleaning components form the "circulatory system" of a concrete block production line.

Industry studies show that faults in pallet handling and conveying systems are a major source of unplanned downtime in block manufacturing plants. Optimizing this process is essential for maintaining stable, high-volume production.

2. Core Equipment Breakdown: The Pallet's Engineered Journey

To sustain automated production, concrete pallets must travel through an uninterrupted, closed-loop mechanical circuit. Each accessory within this system executes a specific technical function:

Automatic Pallet Feeder:

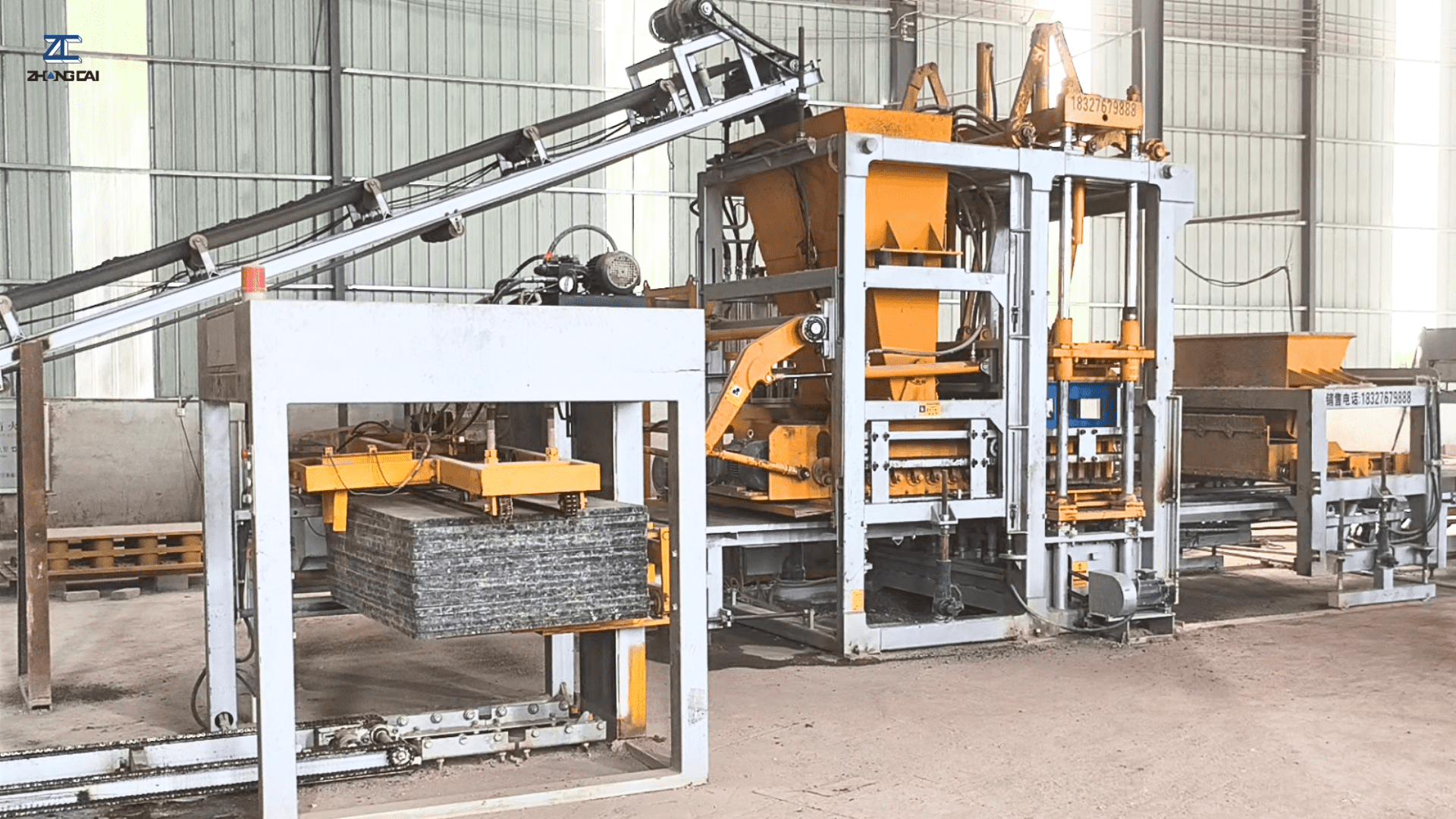

Positioned at the rear or base of the main block machine, this system utilizes heavy-duty conveyor chains or hydraulic pushers to feed empty pallets directly beneath the mold box. Its movement is synchronized via PLC control logic down to the millisecond with the machine's filling and vibration sequences.

Pallet Flipper / Turner:

During production, pallets are subjected to thousands of cycles of intense vertical vibration and hydraulic compaction forces, which create uneven stress distribution over time and may lead to subtle physical bowing or material fatigue.

The pallet flipper rotates the board 180 degrees during the return loop, ensuring equal stress distribution on both faces and preventing permanent warping.

Pallet Cleaner & Oiler:

Residual concrete film or aggregate dust left on a pallet creates an uneven plane for subsequent production cycles. Heavy-duty rotating steel wire brushes remove hardened buildup, while an automated atomized oiler applies a thin layer of release agent to protect the board surface.

3. Operational Value: Why Pallet Accessories Influence Plant Margins

I. Optimizing Total Cycle Time

High-performance automatic block machines, such as the ZCJK ZC1500, operate at rapid cycle times of just 15 to 20 seconds per drop, depending on machine model and block type.

If an automatic pallet feeder experiences a 2-second positioning delay or micro-stoppage due to mechanical misalignment, the main press is forced to idle. Over an 8-hour shift, even minor delays in pallet delivery can significantly reduce total plant throughput, directly impacting daily revenue.

II. Preserving Block Integrity and Sharp Edges

High-performance block machines leverage advanced double-shaft synchronous vibration and hydraulic pressure to produce green products (freshly formed, uncured units) with excellent initial density and structural stability.

However, even with superior green strength, the material has not yet undergone full cement hydration.

Abrupt mechanical jolts, harsh deceleration curves, or uneven pallet surfaces can cause internal micro-cracks due to uneven stress distribution during vibration and compaction, as well as damage to block edges.

Smooth, automated pallet handling systems preserve the geometric precision of high-value structural blocks and pavers.

III. Extending Pallet Operational Lifespan (ROI)

Production pallets—whether made of high-grade PVC, solid timber, or composite bamboo—represent a substantial portion of a plant's fixed asset investment.

If pallets are continuously vibrated on only one side and never cleaned, they deform rapidly, leading to inconsistent block heights and premature replacement costs.

Technical documentation from the industrial companies highlights that systematic mechanical cleaning combined with 180-degree turning can extend pallet service life by 1.5 to 2 times, delivering a direct return on investment.

4. ZCJK Automated Pallet Solutions: The Technical Advantage

ZCJK Intelligent Machinery integrates specialized control engineering into downstream pallet processing lines to ensure long-term mechanical synchronization and asset protection.

Smooth Motion Control:

ZCJK automatic pallet feeders are driven by Variable Frequency Drives (VFD). The system utilizes a specialized “slow-fast-slow” acceleration and deceleration curve. This ensures that empty pallets are positioned rapidly, while formed blocks are transferred smoothly without sudden inertial shocks.

Proximity-Guided Heavy Flipper Assemblies:

Our heavy-duty pallet turners feature robust alloy wear-frames and precise proximity sensors. The PLC tracks the exact entry position of each board, delivering a smooth 180-degree inversion without mechanical slamming or board jamming.

Industrial Dual-Stage Cleaning:

ZCJK pallet cleaners combine adjustable-pressure steel wire brushes with automated scrapers to effectively remove concrete residue and surface buildup. This helps maintain clean pallet surfaces, ensuring consistent block quality and reducing unnecessary wear throughout the production cycle.

Optimized for GMT Pallets:

To maximize pallet longevity and production efficiency, ZCJK supplies high-performance GMT (Glass Mat Reinforced Thermoplastic) block pallets.

Engineered for demanding block production environments, GMT pallets offer excellent impact resistance, moisture resistance, and dimensional stability. Their high strength and resistance to warping help maintain accurate block dimensions while reducing pallet replacement frequency.

Combined with ZCJK's automated pallet handling, flipping, and cleaning systems, GMT pallets contribute to smoother production flow, lower maintenance requirements, and improved long-term operating efficiency.

5. Conclusion: Protecting the Core of Your Production Line

A high-capacity block press provides the necessary raw power for your plant, but its efficiency is influenced by its pallet handling loop. Without an optimized mechanical handling system to sustain its rhythm, the machine cannot reach its engineered capacity.

Investing in robust automatic pallet feeders, flippers, and cleaning stations eliminates a primary operational bottleneck, ensuring your plant operates at peak material and time efficiency.

What happens after the pallets exit the wet side? In the next installment of our production sequence series, we will explore the thermodynamics and mechanical requirements of Automated Curing Kilns and Cubing (Palletizing) Systems, detailing how to efficiently transition cured blocks into high-density commercial inventory.

Enhance Your Plant Efficiency Today

Don’t allow mechanical handling bottlenecks or warped pallets to limit your primary machine’s output. Partner with ZCJK to implement a durable automated pallet circulation system tailored to your production line.

Contact us today to receive:

• Customized pallet conveyor, flipper, and cleaner integration drawings

• Upgrades for existing ZC, QTY, and QTJ production systems

• Factory quotations and 2026 system documentation

FAQ

1. How often should the pallet flipper rotate production boards?

For optimal asset protection, the pallet flipper should operate continuously, rotating every pallet 180 degrees during each return loop.

This ensures equal exposure of both sides to vibration and hydraulic compression forces, preventing unidirectional stress accumulation and reducing warping risk.

2. Which type of pallet benefits most from automated cleaning and flipping systems?

All pallet materials benefit, but failure modes differ:

Bamboo and timber: prone to moisture absorption and warping

PVC: resistant to warping but sensitive to concrete scaling buildup

Systematic cleaning is critical to maintaining flatness and dimensional accuracy across all types.

3. Can these automated pallet handling systems be retrofitted onto older block production lines?

Yes. ZCJK designs automatic pallet feeders, flippers, and cleaners as modular systems using standardized PLC communication protocols.

They can be integrated into existing automatic (ZC/QTY) or semi-automatic (QTJ) production lines to eliminate manual handling bottlenecks.

4. Can a malfunctioning pallet cleaner indirectly affect block quality?

Yes. If concrete scaling is not removed, subsequent production cycles occur on uneven surfaces. This leads to uneven force distribution during vibration and compaction, causing density variation and reducing final compressive strength consistency.
