Concrete Block Palletizing Automation: How Industrial Cubers and Closed-Loop Systems Improve Dry-Side Efficiency and ROI

1. Introduction: The Final Mile of Dry-Side Logistics

In our previous deep dive into wet-side optimization, we explored how controlled handling preserves the structural integrity of uncured concrete blocks.

Once those green blocks complete their precise chemical hydration cycle inside the curing kilns, they emerge at their full design compressive strength, structurally resilient and ready for commercial distribution.

However, while the molding and curing phases determine product quality, the dry-side phase entirely dictates factory throughput and profitability.

Many block plants run high-speed forming machines only to suffer a significant logistical bottleneck at the backend. Relying on manual labor to sort, stack, and load heavy concrete products under harsh conditions is inherently inefficient.

It limits delivery speeds, increases labor costs, and introduces a risk of secondary edge chipping during manual cubing, which may reduce final product yield.

Industry reports (including CPI Worldwide) indicate that fully automated dry-side cubing and packaging systems can reduce labor and handling costs in medium-to-large operations while improving pallet turnover efficiency.

2. Technical Breakdown: ZCJK Dual Dry-Side Automation Solutions

To help global manufacturers match different layout constraints and investment strategies, ZCJK Intelligent Machinery Wuhan Co.,LTD has developed two dry-side automation configurations.

Scheme A: Fully Automatic Open-Style Production Line (High-ROI Commercial Choice)

This layout is designed for high-capacity plants that utilize forklift transit between the curing yard and packaging zone.

Operational Flow:

Heavy-duty forklifts retrieve cured block stacks along with production pallets from the curing area and place them onto the dry-side intake line.

Longitudinal Pitch Conveyor:

The system advances loaded pallets step-by-step, precisely regulating spacing and velocity between pallet layers.

Pre-clamping Device:

Before the cuber engages, this mechanism applies synchronized lateral force to realign blocks and stabilize the layer, ensuring consistent gripping during lifting.

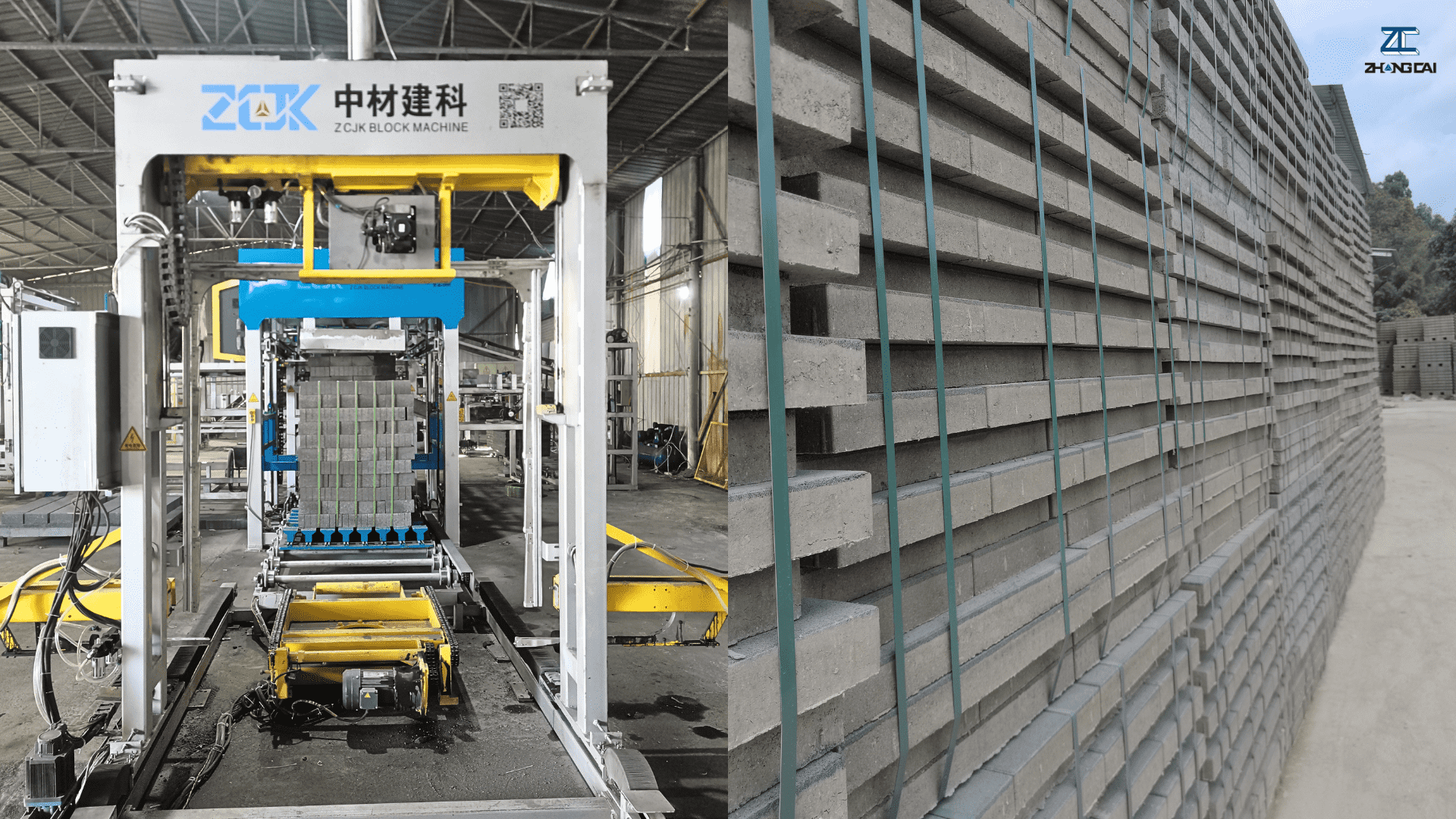

Cuber / Palletizer:

A heavy-duty robotic clamping head lifts an entire layer of concrete products at once, rotating and stacking them into tight multi-layer cubes directly onto transport pallets or shipping runners.

Heavy-duty Chain Conveyor & Packaging:

Completed cubes are transported via chain conveyors to automatic strapping (steel or PET band) and stretch-wrapping stations, making them ready for shipment.

Closed-Loop Pallet Recovery System

Once blocks are removed, empty pallets do not touch the ground. They enter a closed-loop recovery system:

Pallet Flipper → Pallet Brush/Cleaner → Pallet Magazine → Conveyor Feed System

The pallet brush uses high-torque steel wire bristles to remove concrete residue and surface scaling. Because pallets remain within controlled guided tracks and conveyors, they are significantly protected from impact damage compared to manual or forklift handling.

Scheme B: Fully Automatic Closed-Loop Dry-Side Production Line

This configuration represents a high-level automation standard for modern block factories. Forklift usage is minimized within the core production flow.

Operational Flow:

The automated Finger Car (Transfer Car) system retrieves multi-tier block stacks from curing kilns and transfers them directly into the dry-side unloading stage.

Continuous Inline Logistics:

The unloading system (Lowerator) separates stacked pallets layer by layer and feeds them onto the longitudinal pitch conveyor. From there, the cuber processes blocks and transfers them into automated packaging lines.

Advanced Pallet Protection & Conditioning:

The empty pallets circulate through a closed-loop system designed for controlled handling:

Pallet Flipper → Pallet Brush/Cleaner → Pallet Magazine → Conveyor Feed System

The pallet brush removes hardened concrete residue to maintain flat, stable pallet surfaces. Because the entire cycle is handled through automated tracks and conveyors, pallets are significantly protected from impact stress compared to manual operations.

3. Commercial & ROI Value: The Profit Amplifier of Your Factory

Investing in dry-side automation transforms a block plant from a batch-based operation into a continuous production system.

I. Faster Shipping Turnaround & Reduced Yard Footprint

Manual cubing requires large staging areas where products remain loosely arranged before shipment. ZCJK automated cubers consolidate loose blocks into stable, standardized cubes.

When integrated with automated strapping and wrapping systems, forklift loading efficiency is significantly improved, reducing turnaround time and improving yard utilization.

II. Asset Longevity via Closed-Loop Pallet Protection

Production pallets (composite, PVC, or steel-reinforced wood) represent a significant portion of factory capital assets.

In manual handling environments, pallets are prone to cracking, deformation, or surface damage due to rough contact and forklift handling.

By routing pallets through a controlled cleaning and flipping cycle, physical stress is distributed more evenly and residue buildup is prevented. This can extend pallet service life and reduce replacement frequency, lowering long-term operating costs.

III. Eliminating Bottlenecks to Maintain Production Stability

A block plant’s output is constrained by its slowest process.

If dry-side cubing cannot match production speed, cured pallets accumulate in the yard, forcing upstream processes to slow down or stop.

ZCJK cubing systems use millisecond-level PLC coordination with conveyor systems to ensure dry-side throughput aligns with high-speed forming and curing cycles.

Conclusion

From raw material batching and high-pressure molding to controlled wet-side stacking and high-speed dry-side cubing, ZCJK provides a unified, closed-loop manufacturing ecosystem.

True production efficiency is achieved when all stages operate as a continuous mechanical and material flow.

Contact us for tailored cubing and palletizing solutions for your concrete block production line.

FAQ

Q1: What determines whether a factory should choose an Open-Style Cuber or a Closed-Loop System?

The choice depends on production scale, budget, and factory layout. Open-style systems offer flexibility and lower initial investment, while closed-loop systems provide higher automation, lower long-term operating costs, and reduced forklift dependency.

Q2: How does the Pre-clamping Device improve cube stability?

The pre-clamping system applies controlled lateral force to align block layers before lifting. This helps ensure stable gripping and reduces the risk of displacement during cubing and transport.

Q3: Why is a Pallet Brush/Cleaner critical for production efficiency?

During molding, fine cement slurry may adhere to pallet surfaces and harden over time. If not removed, this can cause uneven pallet surfaces, leading to inconsistent block height and increased mold wear. Regular automated cleaning helps maintain flat, stable pallet conditions and protects equipment lifespan.
