Concrete Block Plant Automation: How Automatic Discharging and Stacking Systems Minimize Wet-Side Block Damage

1. Introduction: From Demolding to Curing—The Critical Transit

Once freshly formed green blocks leave the main block machine on production pallets after compaction, the next challenge becomes transporting them safely to the curing stage. Although the blocks have achieved their initial shape and density, the cement hydration process has not yet occurred, making them relatively fragile.

A common bottleneck in any concrete block production line is the wet-side handling system. Inefficient discharge equipment or jerky mechanical movements can create handling shocks that induce invisible internal micro-cracks or edge damage, potentially reducing the block's final compressive strength.

Industry best practices in concrete products manufacturing emphasize the importance of shock-free wet-side handling to preserve block quality, dimensional accuracy, and structural integrity. Optimizing the wet-side handling system is therefore essential for protecting product quality before curing begins.

2. ZCJK Wet-Side Solutions: Tiered Automation for Global Plants

To accommodate varying investment budgets and production scales, ZCJK has engineered a tiered range of wet-side handling system configurations. These solutions minimize human intervention and optimize the transition from block production to curing.

Simple Production Line (Centralized Control / Face-Mix Option)

For small-to-medium-sized operations, ZCJK provides a robust and cost-effective automation layout for the concrete block production line.

Core Components: Automatic Block Conveyor + Automatic Stacker

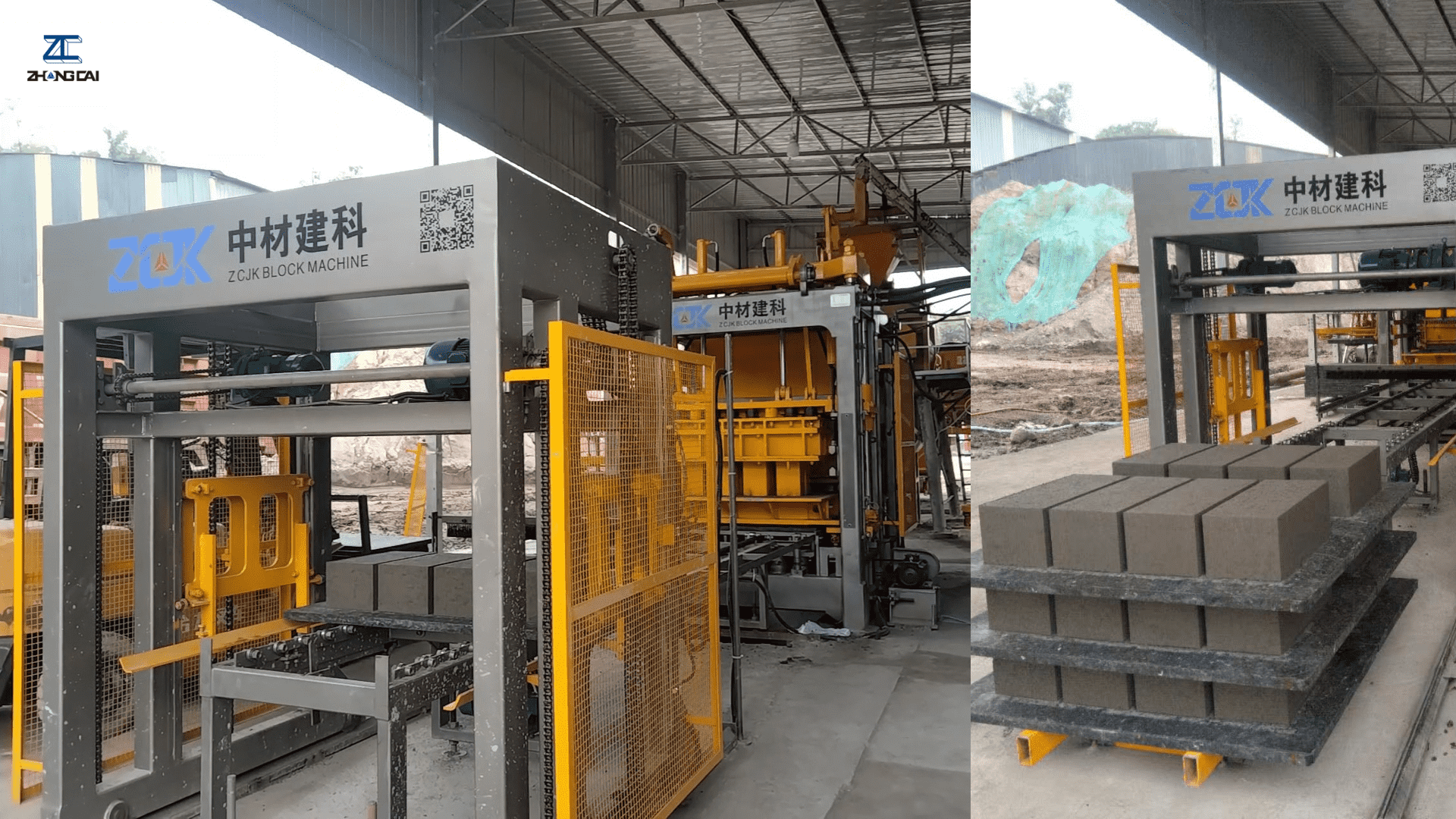

Operational Logic: Freshly demolded blocks advance smoothly along a variable-frequency-controlled output conveyor. The Automatic Stacker then systematically stacks multiple loaded pallets vertically (typically 3 to 5 layers high) onto a heavy-duty steel lifting frame.

Instead of workers moving individual pallets, a single forklift operator can transport an entire cluster of stacked blocks to the curing yard in one trip. This significantly reduces forklift travel cycles while minimizing the risk of product damage caused by rough handling or uneven factory floor surfaces.

Fully Automatic Closed-Loop Line

For large-scale, high-capacity commercial block plants, ZCJK offers a completely forklift-free wet-side handling system.

Core Components: Elevator + Finger Car (Transfer Car) System + Automated Curing Kilns

Operational Logic: This configuration completely removes conventional forklift and manual interventions from the wet side of the concrete block production line.

Individual pallets exit the main machine and enter a multi-tier Elevator that indexes them vertically up to 10–20 layers high. Once a full tier is assembled, an intelligent Finger Car (Transfer Car) System retrieves the entire stack. Moving smoothly along dedicated ground tracks through computerized positioning control, the transfer car transports green blocks into designated curing kilns at high speeds with extremely low vibration and minimal handling shock.

Inside the curing kilns, the blocks remain undisturbed throughout the curing cycle, allowing cement hydration to develop the required compressive strength before the products are transferred to the dry-side handling system for further processing.

3. Why Must Buyers Invest in VFD Stacking and Elevating Systems?

The defining technical factor behind reliable wet block transport is motion control.

Standard single-speed mechanical drives or abrupt hydraulic movements create harsh acceleration and deceleration profiles, transferring inertial forces directly into uncured concrete products.

ZCJK minimizes this issue by integrating multi-stage Variable Frequency Drive (VFD) control curves into the master PLC automation system. The software applies a calibrated electronic velocity profile consisting of:

• Soft acceleration
• High-speed travel
• Precision deceleration before positioning

This allows pallets and green blocks to move smoothly throughout the wet-side handling system while minimizing mechanical stress. Leading global block machinery manufacturers, including Germany's Topwerk / Hess Group and other advanced automation suppliers, recognize shock-minimized transport as a fundamental requirement of modern wet-end automation. Minimizing inertial shock helps prevent thin web walls in hollow blocks from deforming or developing stress fractures before curing.

As a result, the density and structural quality achieved during compaction can remain fully preserved throughout the transportation process.

4. Conclusion: Securing the First Half of Your Production Cycle

Optimizing the wet-side discharging and stacking phase serves as a protective barrier for the output of your main machine. By matching the rapid cycle times of a modern block machine with an equally efficient automated wet-side handling system, manufacturers can ensure that blocks arrive at the curing stage with their structural integrity and dimensional accuracy fully preserved.

A well-designed wet-side handling system not only reduces product damage but also improves production efficiency, minimizes labor requirements, and supports long-term plant profitability.

Improve Your Block Production Efficiency

Whether you are building a new plant or upgrading an existing production line, ZCJK can provide tailored wet-side automation solutions to match your capacity and budget requirements.

Contact us today for technical advice, layout recommendations, and a factory quotation.

FAQ

1. If ZCJK machines already produce high-density green blocks with excellent firmness, why is a VFD-controlled conveyor or stacker still necessary?

Although ZCJK compaction technology produces excellent initial density and green strength, the concrete has not yet developed its final crystalline structure through hydration.

Sudden stops, impacts, or excessive vibration can create internal micro-cracks that may not be visible but can affect long-term product performance.

VFD control significantly reduces these inertial forces, helping preserve block quality during transportation.

2. What are the main infrastructural differences between installing a Simple Line Stacker and a Closed-Loop Finger Car System?

The Simple Line Stacker requires minimal foundation modifications and operates with conventional forklift transportation on standard industrial flooring.

The Closed-Loop Finger Car System requires dedicated track infrastructure integrated into the plant layout and curing area. It functions as a fully automated, forklift-free logistics system designed for high-volume industrial production.

3. How does the vertical Elevator and Lowerator configuration optimize factory floor space?

Rather than spreading individual pallets across large floor areas while waiting for curing, the Elevator stores pallets vertically in stacks up to 10–12 layers high.

This approach utilizes vertical building space more efficiently and can significantly reduce the wet-side storage footprint compared with conventional layouts.

4. Can the automatic stacking profile be recalibrated when switching from thin pavers to heavier hollow blocks?

Yes.

Through the centralized HMI touchscreen interface, operators can select predefined production profiles for different products.

The PLC automatically adjusts stacking parameters, vertical indexing positions, lifting speeds, and deceleration settings to match the dimensions and weight characteristics of the selected product type.
