The Plant Manager’s Dilemma: Modernize or Replace?
Operating a concrete block plant requires balancing capacity, quality, maintenance, labor, and downtime.
When an older machine underperforms, its age is not the only factor. What matters is whether its mechanical system, controls, and supporting equipment still meet current production needs.
According to CPi Worldwide, retrofit and modernization projects can upgrade existing concrete block equipment, restore productivity, and extend its service life.ed to restore productivity and extend its economic service life.
For plant managers, the right decision therefore depends on the machine’s condition, the required production capacity, and the specific bottleneck—not simply its age.
5 Warning Signs Your Concrete Block Machine Needs Action
1. Unplanned Downtime and Obsolete Spare Parts
Frequent component failures can quickly reduce available production hours.
The problem becomes more serious when legacy PLC cards, control components, hydraulic valves, or proprietary parts are difficult to source or no longer supported.
At that point, even a relatively small failure can create a disproportionate maintenance delay.
2. Material Waste and Quality Inconsistency
Worn molds, unstable pallets, inaccurate batching, or inconsistent vibration can contribute to dimensional variation, poor surface finish, edge damage, and inconsistent density.
For plants producing pavers or load-bearing blocks, process stability is essential to maintaining repeatable product quality.
3. Rising Energy and Operating Costs
Older hydraulic and electrical systems may operate less efficiently than modern equipment.
For example, aging hydraulic systems can experience higher heat generation and unnecessary energy consumption when pumps, motors, or control components are no longer operating efficiently.
However, the actual energy-saving opportunity should be measured from the existing machine rather than assumed solely from its age.
4. Handling Bottlenecks
The forming machine may be capable of producing blocks faster than the downstream handling system can move, stack, or transfer them. Green-product handling, curing transfer, and dry-product cubing can all become bottlenecks.
5. Inability to Adapt to New Product Requirements
An old mold system may restrict a plant to a narrow product range.
If the market is shifting toward interlocking pavers, curbstones, hollow blocks, or other specialty products, the limiting factor may be the mold and forming configuration rather than the main machine itself.

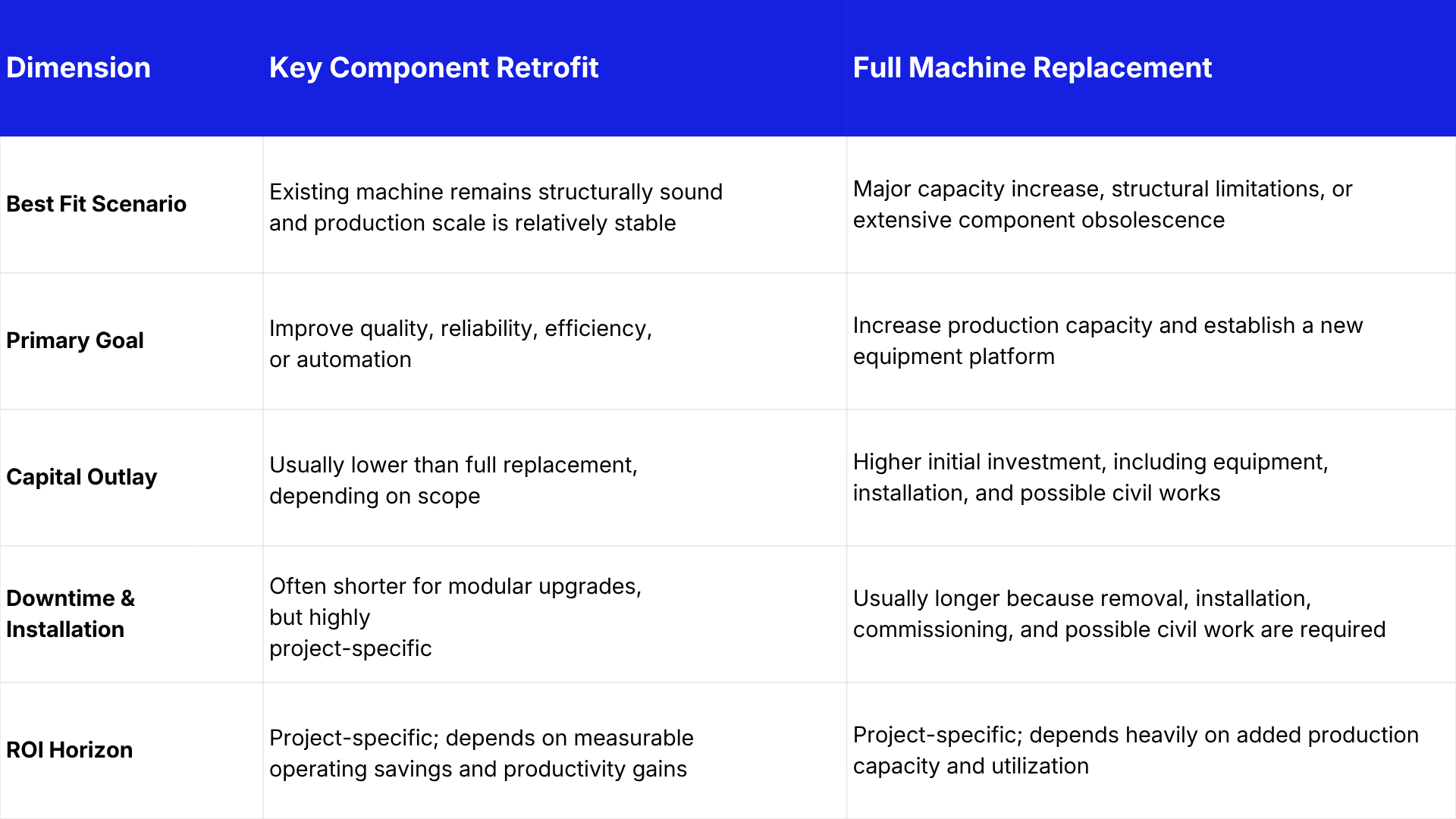

Retrofit vs. Replacement: A Strategic Decision Matrix
The choice between retrofitting an existing concrete block machine and purchasing a new one should be based on two fundamental questions:
Can the existing machine still provide a sound mechanical platform?
Can it economically meet the plant’s future production and product requirements?
A retrofit is generally more attractive when the main frame, vibration system, mold box, hydraulic system, and other core elements remain suitable for continued operation.
Replacement becomes more attractive when the machine has structural fatigue, widespread obsolescence, inadequate capacity, or fundamental design limitations that cannot be resolved economically.
The Strategic Anatomy of High-ROI Upgrade Modules
When an existing line has a stable production target, targeted upgrades can often address the actual production bottleneck without replacing every component.
1. Precision Mold Upgrade
Replacing worn molds with precision-manufactured molds can restore product geometry, improve dimensional consistency, and reduce defects caused by excessive cavity wear.
Modern concrete block molds may use high-manganese or alloy steels combined with CNC machining and appropriate heat-treatment processes to improve wear resistance and dimensional stability.
ZCJK’s current mold engineering emphasizes CNC precision machining, high-manganese steel, heat treatment, and reinforced structural design for concrete block applications.
2. Pallet System Optimization
Production pallets support the fresh blocks during forming, handling, and curing, while also providing the surface through which vibration is transmitted during compaction.
Deformed or excessively worn pallets can affect block height, stability, and production consistency.
The appropriate pallet depends on the machine and product. GMT pallets, for example, are available for ZCJK machines in model-specific dimensions, including 1150 × 900 × 25 mm for the ZC1000 and other sizes for different machines.
3. Automated Material Batching System
Replacing manual or less precise dosing with an automated weighing and batching system can improve recipe repeatability and reduce material variation.
Modern batching systems can also use aggregate moisture measurements to adjust water dosing, helping maintain more consistent mix conditions, particularly in semi-dry concrete production.
The financial benefit comes not simply from “automation,” but from better control of material consumption, batch consistency, and operator intervention.
4. Automatic Stacking and Handling Integration
Handling equipment should be selected according to where the production line is actually constrained.
A green-product stacking or handling system can improve movement from the block machine toward curing, while a dry-product cubing system can automate the stacking and palletizing of cured products.
The right upgrade is therefore the one that removes the plant’s specific downstream bottleneck.
Financial ROI: How to Calculate Retrofit Payback
A retrofit investment should be evaluated using measurable financial benefits rather than a fixed industry-wide payback period.
A practical calculation is:
Payback Period (Months) = Upgrade Investment ÷ Monthly Net Benefit
Where:
Monthly Net Benefit = Power Savings + Material Savings + Labor Savings + Avoided Maintenance Cost + Incremental Gross Profit
For example, if a new batching system reduces material variance, a new pallet system reduces damaged products, and an automated handling system reduces labor requirements, each benefit can be calculated separately from actual plant data.
This approach is more reliable than assuming that every retrofit will recover its investment within a predetermined number of months.

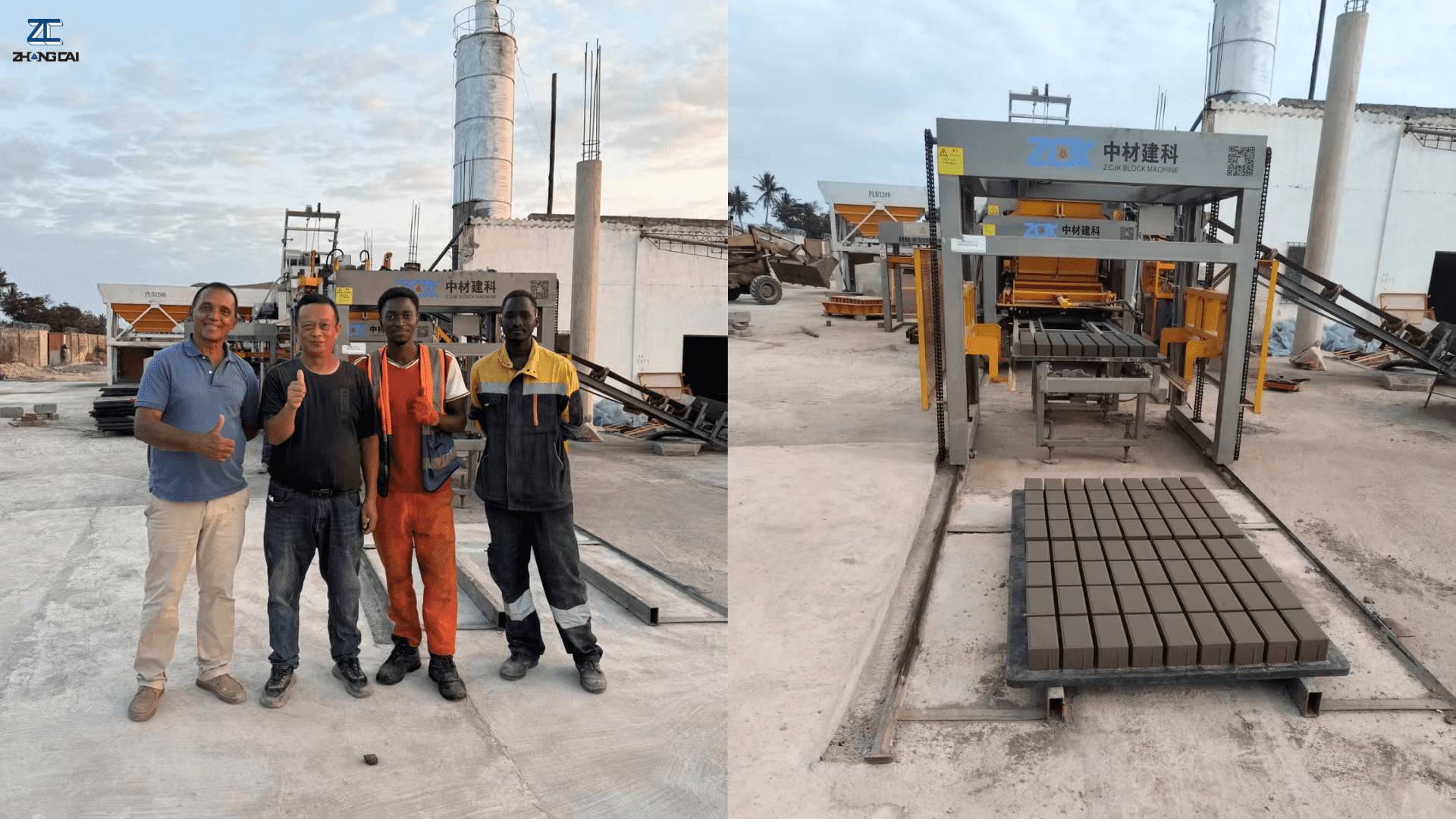

Real-World Case Study: ZCJK ZC1000 Project in Mozambique
A concrete product manufacturer in Mozambique needed to improve production efficiency and upgrade its existing facility to better meet market demand.
The project involved replacing outdated, labor-intensive equipment with a higher-capacity automated production solution.
The ZCJK Solution & On-Site Support
Equipment Selection: The customer selected the ZCJK ZC1000 concrete block machine together with integrated supporting equipment for a high-output automated production line.
On-Site Engineering: ZCJK dispatched technical engineers to the customer’s site in Mozambique to support installation, mechanical and hydraulic commissioning, system debugging, and operator training.
Key Outcomes
Higher Production Efficiency: The facility moved from a more labor-intensive production process toward a continuous automated workflow.
Seamless Deployment: On-site commissioning helped the customer complete installation and debugging with direct technical support.
More Consistent Product Quality: The automated production system provided more stable forming and handling for the customer’s required concrete block applications.
Strategic Action Plan: How ZCJK Evaluates Your Equipment
1. Capacity and Business Goal Assessment
We first evaluate market demand, current output, product types, and future capacity requirements to determine whether the plant needs a larger machine such as the ZC1000 or whether targeted upgrades can solve the existing bottleneck.
2. Machine Health and Parts Availability
The assessment should cover the machine frame, vibration system, hydraulic components, electrical controls, mold condition, pallets, and supporting equipment, as well as the availability of critical replacement parts.
3. Retrofit Package or Replacement Proposal
The final recommendation should be based on the actual machine condition and business objective, and may involve a mold upgrade, pallet replacement, batching improvement, handling automation, control-system modernization, or a complete machine replacement.
Need to upgrade or replace your old concrete block machine?
Contact us for a tailored solution and ROI assessment.
FAQ
Can an old concrete block machine be retrofitted?
Yes, if its main structure and key systems remain suitable for continued operation.
Is it cheaper to retrofit or replace a concrete block machine?
Retrofitting often costs less initially, but the final cost depends on machine condition and upgrade scope.
What components can be upgraded on an old block machine?
Common upgrades include molds, pallets, batching systems, hydraulic and electrical controls, vibration components, and handling equipment.
When should I replace the entire machine instead of retrofitting it?
Replacement is better when structural limitations, obsolete components, low capacity, or outdated design cannot be upgraded economically.
