    ZCY4-10 Hydraulic Interlock Clay Brick Making Machine

    loading

    Share to:
    sharethis sharing button

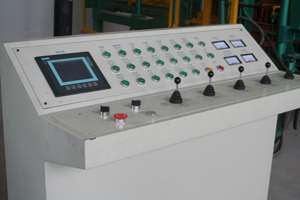

    Automatic and PLC controlled, with PLC control system,it can work automatically.
    Plunger pump,double oil cylinder on top,makes the brick much stronger

    High efficiency, the cycle time is up to 10 seconds. It can make 12000 pieces of interlocking clay bricks per 8 hours.

    By adjusting the screws,brick height can be changed.

    Multi-purpose. Mould can be changed according to customer’s requirements, It can make the bricks with different shapes by replacing different moulds.

    • ZCY4-10 clay brick making machine

    • ZCJK clay brick making machine

    • 8474802000

    Quantity:
    Inquire Add to Basket

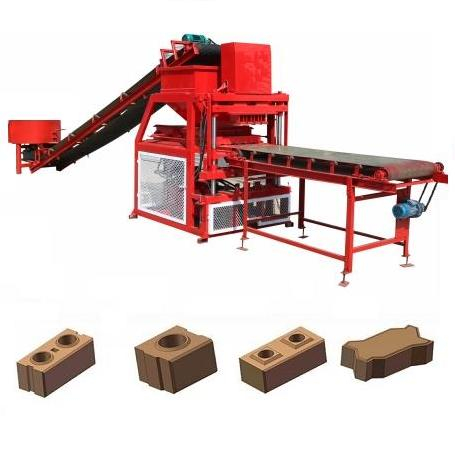

    ZCY4-10 Automatic Hydraulic Interlock Clay Brick Making Machine

    Features:
    This ZCY4-10 clay brick making machine, it a small sized clay brick production line, it is complete line.



    ZCY4-10 interlocking clay brick making machine

    Product Advantage

    A utomatic and PLC controlled ,with PLC control system ,it can work automatically.
    Plunger pump,double oil cylinder on top,makes the brick much stronger.
    High efficiency,the cycle time is up to 10 seconds.It can make 12000 pieces of interlocking clay bricks per 8 hours.
    By adjusting the screws ,brick height can be changed.
    Multi-purpose .Mould can be changed according to customer's requirements .It can make the bricks with different shapes by replacing different molds.

    Main technical data

    Cycle time  10-15s
    Power  11kw
    Weight of brick forming machine  1.6T
    Overall Dimension  2260*1500*2380mm
    Forming method  hydraulic pressure
    Hydraulic pressure  32mpa
    Container required 1*20GP

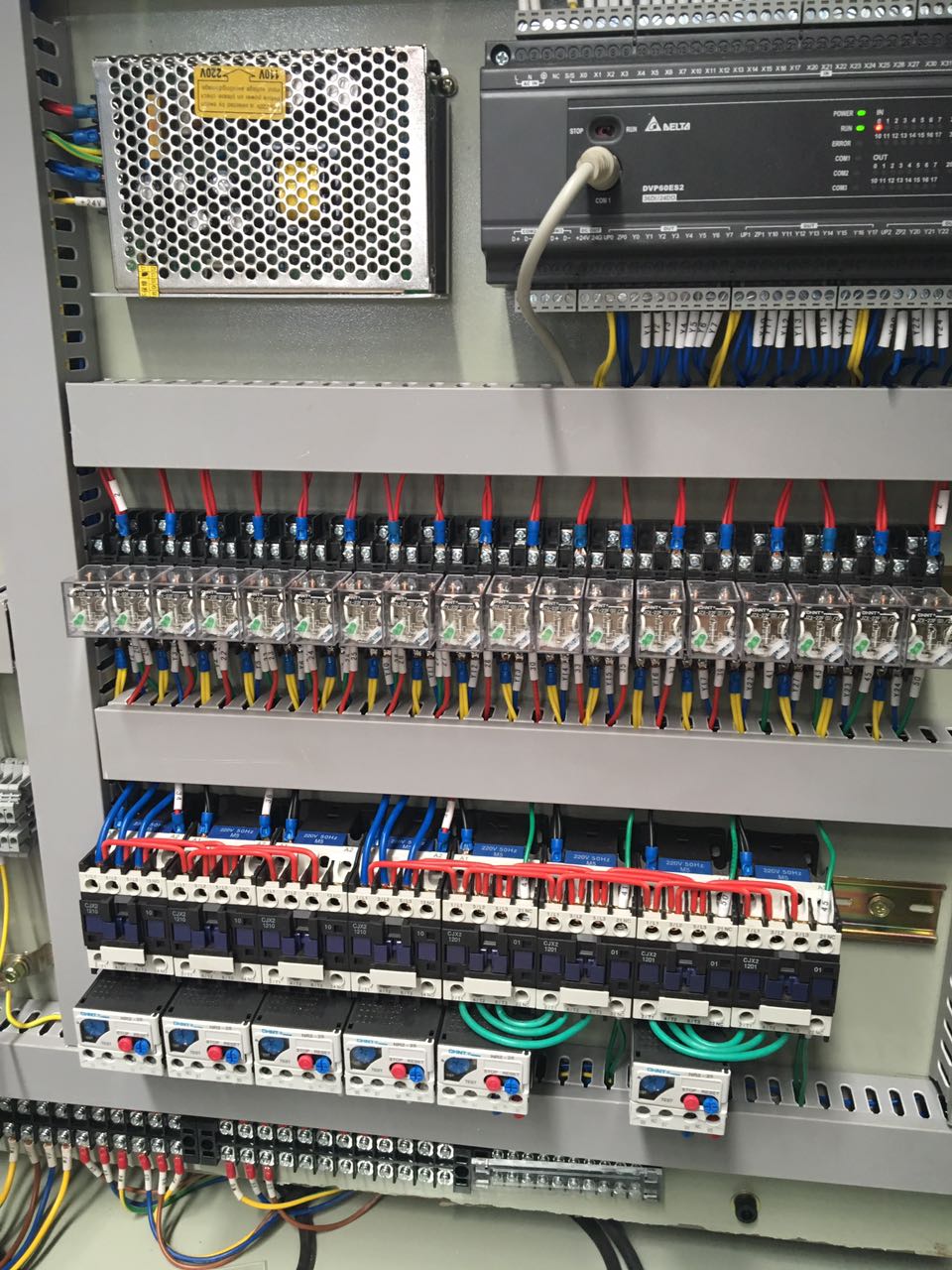

    Automatic and PLC controlled, with PLC control system,it can work automatically.





    ZCY4-10 interlocking clay brick making machine (6)          IMG_0444.JPG

    Plunger pump,double oil cylinder on top,makes the brick much stronger

    High efficiency, the cycle time is up to 10 seconds. It can make 12000 pieces of interlocking clay bricks per 8 hours.

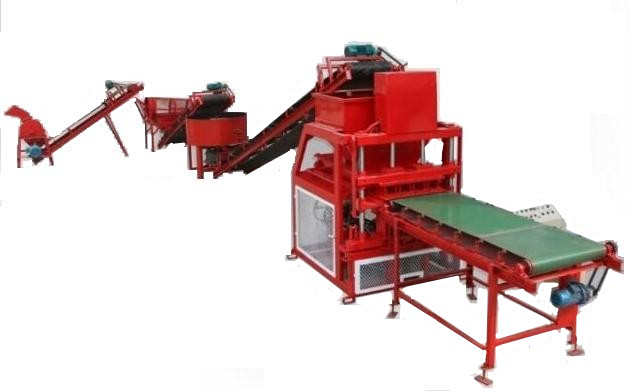

    Items of investment

    Component of production line  Quantity
    ZCY4-10 interlock clay brick machine  1
    Brick conveyor machine  1
    Control system  1

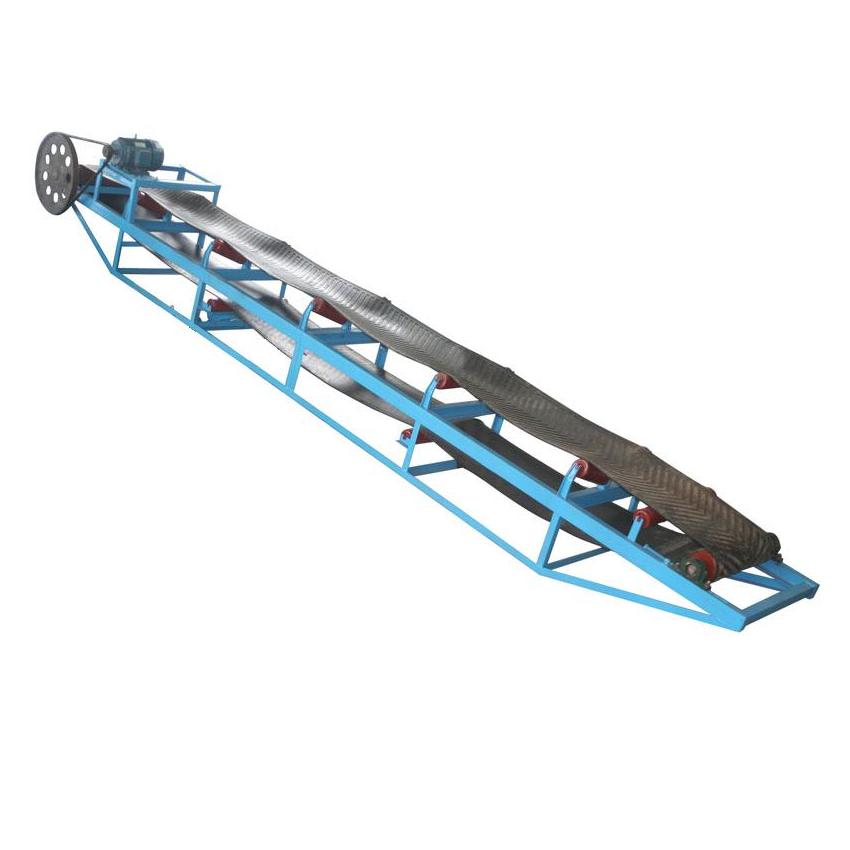

    Belt conveyor  1
    JW500 mixer 1
    Free mould  1




    Production Capacity
    Items pcs/mould Cycle Time  Production capacity
    Interlocking Clay Brick  4 10-12s 12000pcs/day

    4-10



    By adjusting the screws,brick height can be changed.

    Multi-purpose.  Mould can be changed according to customer’s requirements, It can make the bricks with different shapes by replacing different moulds.

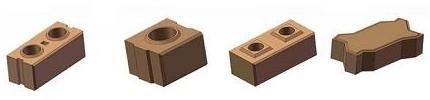

    CLAY
