The Complete Technical Guide To Concrete Block Types, Mix Designs, And Concrete Block Making Machine Selection

Introduction: Why Block Type Should Determine Machine Selection

In the concrete masonry industry, many new investors and expanding block manufacturers focus mainly on machine output capacity or initial equipment cost. However, successful production depends on a more fundamental factor: the relationship between the target concrete block type, mix design, and machine capability.

Different products require different raw material ratios, compaction methods, vibration systems, and feeding technologies. Standard hollow blocks may be produced with basic forming equipment, while high-strength solid bricks, colored interlocking pavers, and precision ecological blocks require more advanced concrete block making machines with better vibration control, hydraulic pressure, and mold accuracy.

According to international standards including ASTM C90, ASTM C55, and ASTM C936, concrete masonry product quality depends on multiple factors, including compressive strength, density, water absorption, dimensional accuracy, and production consistency.

This guide explains the major concrete block types, their basic mix design principles, applicable standards, and how to select the right ZCJK machine solution according to product requirements and production scale.

Part 1: Concrete Block Manufacturing Fundamentals

1.1 Understanding Zero-Slump Concrete

Unlike ready-mix concrete used for pouring structures, concrete block manufacturing uses zero-slump or low-slump concrete. This dry-hard mixture contains limited water, allowing the material to maintain its shape immediately after demolding.

The typical water-cement ratio for zero-slump concrete is approximately 0.30–0.45, depending on:

• Cement type

• Aggregate properties

• Required strength

• Surface quality requirements

• Production equipment

The goal is to achieve sufficient hydration while maintaining enough stiffness for immediate handling after vibration and compression.

In modern block making machines, vibration and hydraulic pressure work together to remove trapped air, improve density, and create stable green blocks before curing.

1.2 Key Factors Affecting Concrete Block Quality

Aggregate Gradation

Aggregate selection directly affects block strength, density, and surface quality.

Coarse aggregates (commonly around 5–10 mm) create the internal structural skeleton, while fine aggregates such as sand and stone dust fill the gaps between particles to reduce voids.

However, the ideal aggregate size depends on:

• Block geometry

• Wall thickness

• Product strength requirements

• Local material availability

For example, hollow blocks with thin webs require more carefully controlled aggregate grading compared with solid masonry units.

Vibration and Compaction

Effective vibration is essential for producing high-quality concrete blocks.

High-frequency vibration helps:

• Remove trapped air

• Improve material distribution

• Increase density

• Reduce water absorption

Modern industrial machines combine vibration technology with hydraulic forming systems to achieve consistent product quality.

Feeding Systems

Standard products usually use a single-layer feeding system.

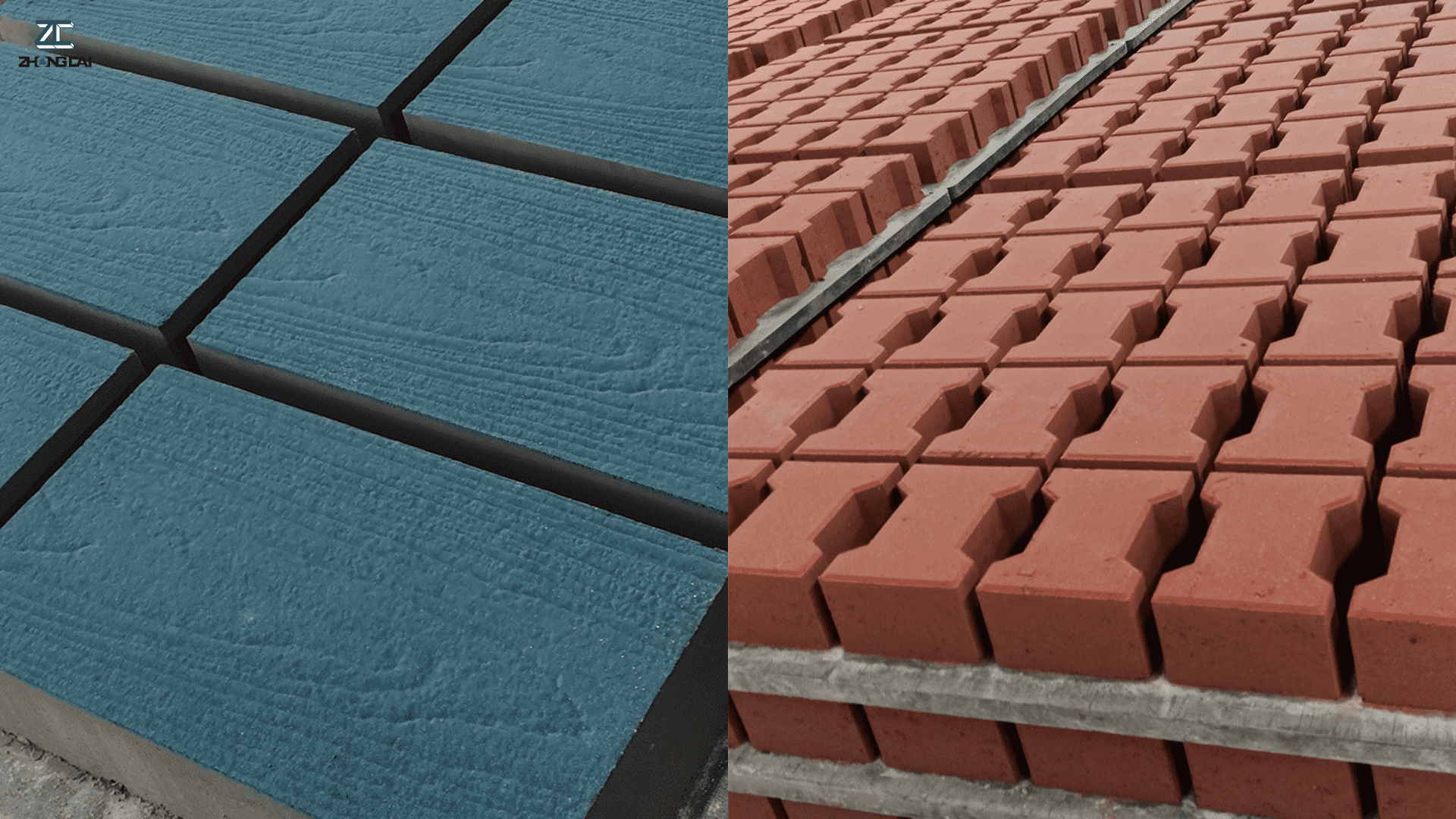

For premium products such as colored pavers, a dual-layer feeding system is required:

• Base layer: structural concrete mixture

• Face layer: fine materials with pigments and improved surface quality

This process allows manufacturers to produce decorative and durable interlocking pavers.

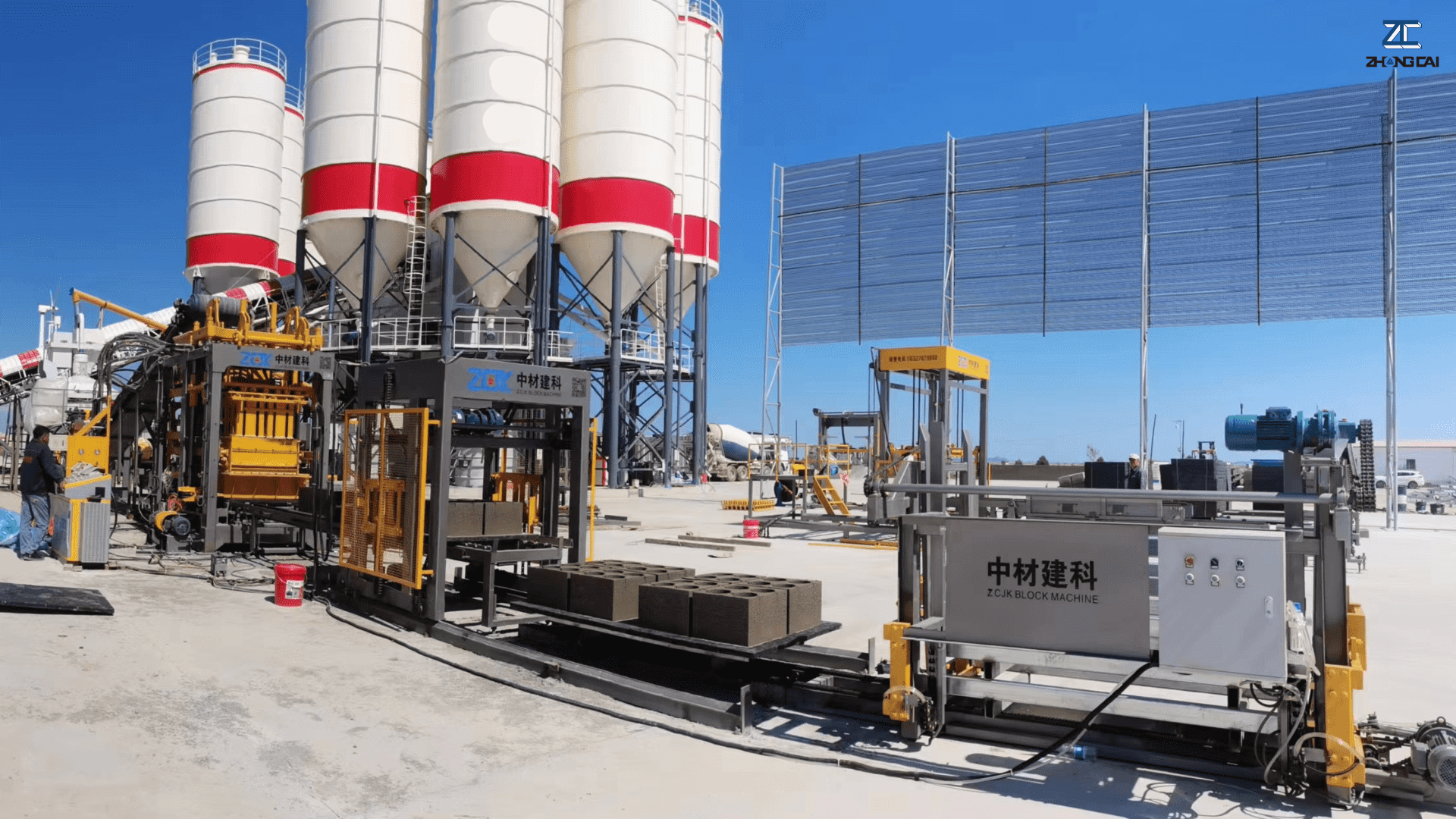

Concrete Block Production Line: From Raw Material Batching to Closed-Loop Palletizing Automation

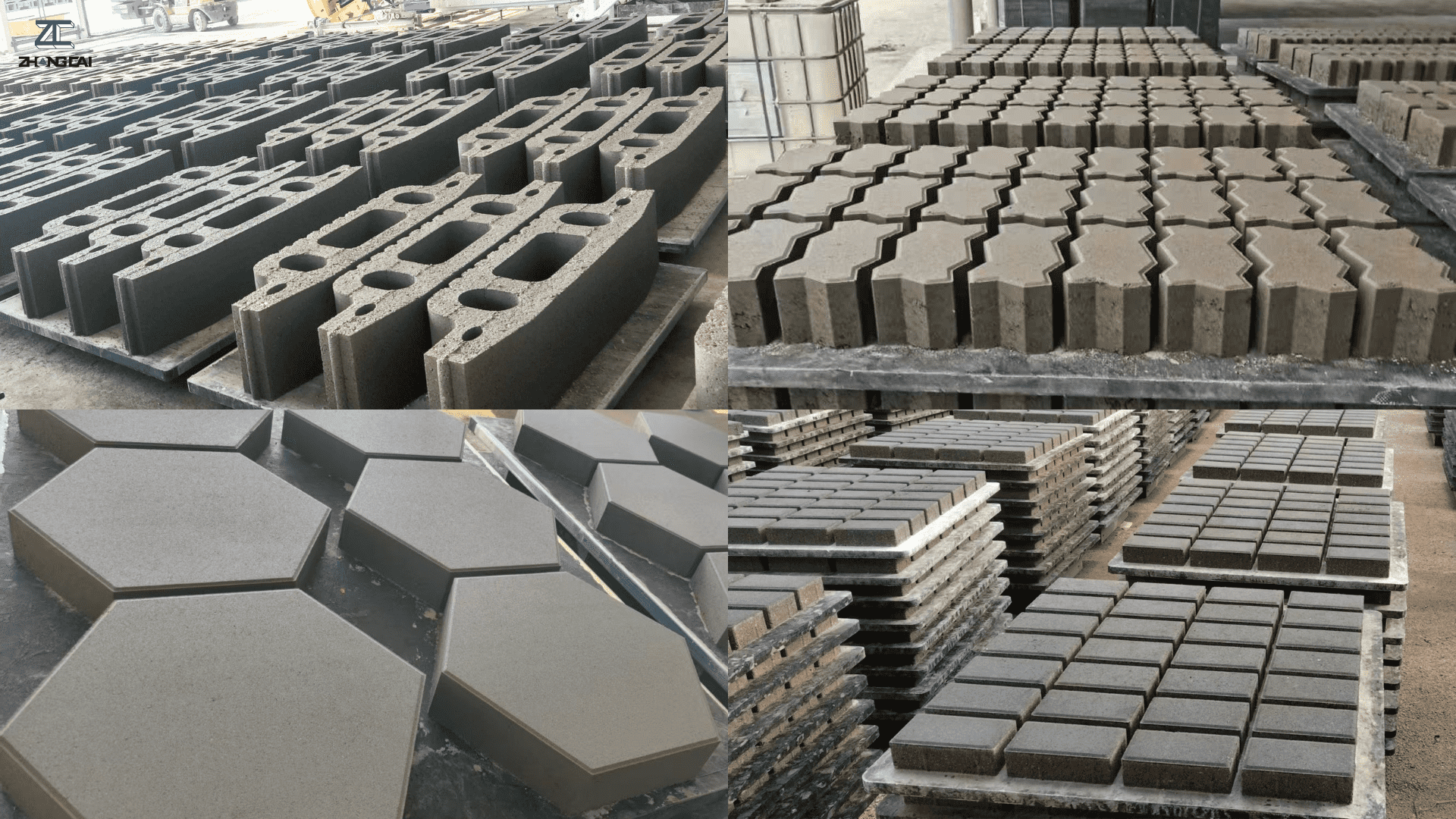

Part 2: Four Major Concrete Block Types and Production Requirements

2.1 Hollow Concrete Blocks

Hollow blocks are among the most widely used masonry products in residential, commercial, and infrastructure construction.

Their hollow structure reduces building weight while improving:

• Thermal insulation

• Acoustic performance

• Material efficiency

Applicable Standard

ASTM C90 – Standard Specification for Loadbearing Concrete Masonry Units

ASTM C90 defines requirements related to:

• Compressive strength

• Absorption

• Dimensions

• Quality consistency

Mix Design Strategy

The main objective is to achieve strong outer shells and internal webs while controlling material consumption.

A reference mix may include:

Cement : Sand : Crushed Stone : Stone Dust ≈ 1 : 2.5 : 3.5 : 1.5

However, actual concrete block mix design should always be adjusted according to local raw materials, cement performance, moisture conditions, and required product strength.

Manufacturing Requirements

Producing quality hollow blocks requires:

• Stable vibration

• Uniform feeding

• Accurate molds

• Controlled demolding

Insufficient compaction may create internal voids that reduce strength and cause cracking during transportation.

2.2 Solid Concrete Bricks and High-Density Units

Solid concrete bricks are designed for applications requiring higher density and load-bearing performance, including:

• Foundations

• Industrial buildings

• Heavy-duty construction projects

Applicable Standard

ASTM C55 – Standard Specification for Concrete Building Brick

Solid units can utilize various mineral materials, including:

• Fly ash

• Slag

• Recycled concrete aggregates

The production process depends on effective material grading, vibration compaction, hydraulic forming, and mold precision to minimize internal voids.

2.3 Interlocking Concrete Pavers

Interlocking pavers are commonly used for:

• Roads

• Parking areas

• Pedestrian walkways

• Landscape projects

They must withstand abrasion, weather exposure, and repeated loading.

Applicable Standard

ASTM C936 – Standard Specification for Solid Concrete Interlocking Paving Units

High-quality pavers often use a dual-layer production process.

Base Layer

The base layer provides structural strength through:

• Coarse aggregates

• Cement mixture

• Load-bearing materials

Face Layer

The decorative surface layer is typically around 3–8 mm and contains:

• Fine quartz sand

• High-grade cement

• Mineral pigments

A secondary feeding system is required to accurately place the face mix before final compression.

2.4 Eco-Slope Protection and Mortarless Interlocking Blocks

Specialized products such as ecological slope protection blocks require higher dimensional accuracy because they rely on mechanical interlocking.

These products require:

• Precision-engineered molds

• Wear-resistant materials

• Stable hydraulic stripping

• Accurate vibration control

For certain applications, dimensional tolerance may need to approach ±1 mm to ensure proper installation and long-term stability.

Part 3: How to Select the Right ZCJK Concrete Block Making Machine

Selecting the correct concrete block making machine depends on product requirements, production capacity, and future expansion plans.

Scheme A: Startup and Small-Scale Production

Recommended Machines:

• QTJ4-40

• QTJ4-40A

• QTJ4-20A

• QTY4-18

Suitable for:

• Hollow blocks

• Solid bricks

• Basic masonry products

These machines provide a practical solution for customers seeking reliable production with lower initial investment.

For customers planning future expansion into colored pavers, QTY series machines provide better customization flexibility.

Scheme B: Medium-Scale Commercial Production

Recommended Machines:

• QTY4-15

• QTY6-15

• QTY8-15

These models are suitable for commercial manufacturers producing multiple concrete products.

Advantages include:

• Hydraulic forming technology

• Efficient vibration systems

• Flexible mold replacement

• Customized production options

Scheme C: Large Industrial Production Plants

Recommended Machines:

• ZC900

• ZC1000

• ZC1200

• ZC1500

• HMS1500

• HMS1800

ZCJK’s industrial block production line solutions integrate:

• Servo hydraulic control

• Dynamic-static vibration technology

• Automated pallet handling

• Intelligent production systems

They are designed for high-volume production of:

• Hollow blocks

• Solid bricks

• Municipal pavers

• Specialized concrete units

Conclusion

Choosing the right concrete block making machine requires matching product requirements, mix design, and production goals.

From compact QTJ machines to advanced ZC and HMS automated production systems, ZCJK provides customized solutions for manufacturers producing hollow blocks, solid bricks, interlocking pavers, and specialized concrete products.

Get a Custom Engineering Proposal

Contact ZCJK’s engineering team for:

• Production line recommendations

• Machine selection guidance

• Plant layout solutions

• Concrete mix design consultation based on local materials

FAQ

Q1: What is zero-slump concrete?

Zero-slump concrete is a low-water mixture used for concrete block manufacturing. It provides enough moisture for cement hydration while maintaining enough stiffness for immediate demolding.

Q2: Which ASTM standard applies to hollow concrete blocks?

Load-bearing hollow concrete masonry units follow ASTM C90, which covers strength, absorption, dimensions, and quality requirements.

Q3: Can one machine produce different types of concrete blocks?

Yes. Many modern block making machines can produce different products by changing molds and adjusting mix designs. However, specialized products may require additional feeding systems.

Q4: Can QTJ machines produce colored interlocking pavers?

QTJ models are mainly designed for standard single-layer products. Dual-layer colored pavers generally require suitable QTY configurations or customized face-mix systems.

Q5: How should I choose a concrete block making machine?

Selection should consider:

1. Block type

2. Production capacity

3. Automation level

4. Raw materials

5. Mold flexibility

6. Future expansion requirements
