ZC1500
ZCJK
20set / Month
20Days
172800pcs/8hours
25T
12-22sec
1 set
| Quantity: | |
|---|---|

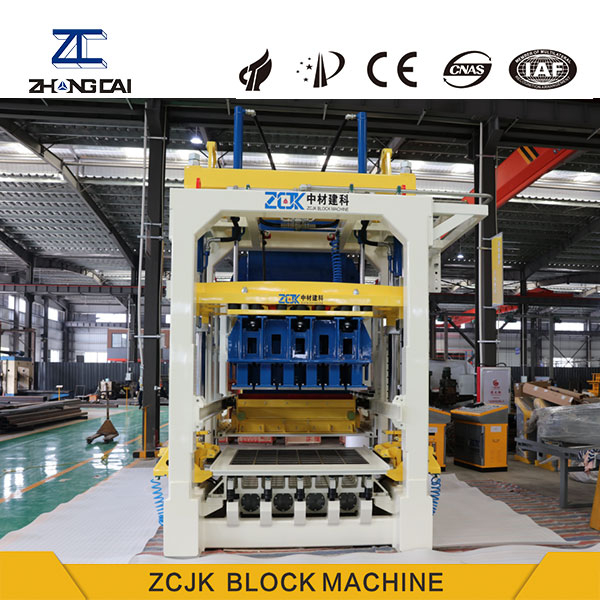

The ZC1500 fully automatic block-making machine, developed by ZCJK Group, can be integrated with a high-efficiency closed-loop automatic production line. This setup ensures seamless, non-stop brick production with optimized workflow and minimum manual intervention. A key highlight of the ZC1500 is its Quick Mold Change (QMC) system. Traditional mold replacement could take hours or even days, but with QMC technology, changeover time is shortened to just minutes or a few hours. This improvement boosts equipment uptime, enhances overall production flexibility, and significantly cuts per-unit costs.
Main Parameter:
Pallet size | 1350x1150mmm | Pallet maximum forming area | 1350x1100mm |
Forming height | 50-200(350/500)mm | Cycle time | 12-22sec |
Type of vibration table | Dynamic-static table | Excitation force | 160KN |
Total power | 130kw | Total weight | 25T |
Detail Items:
Item | Quantity | Item | Quantity |
ZC1500 brick making machine | 1 | Automatic Brick conveyor | 1 |
Automatic pallet feeder | 1 | Hydraulic unit | 1 |
PLC Control system | 1 | Belt Conveyor | 1 |
JS1500 Mixer | 1 | PL1200 batching machine | 1 |
Automatic stacker | 1 | Centralized control system | 1 |
Manual hydraulic forklift | 2 | Air compressor | 1 |
Free Mold | 1 |
Next-Generation Machine for Maximum Output:The ZC1500 automatic block-making machine is a smart solution tailored for modern brick factories aiming to scale their operations. Designed with a mold size of 1350×1150 mm and a cycle time of 12–22 seconds, this machine delivers impressive productivity. It can produce 55 standard-sized bricks (240x115x53 mm) per pallet, reaching 118,800 pieces in an 8-hour shift. For larger bricks (390x190x190 mm or 400x200x200 mm), it achieves 15 per pallet, totaling up to 28,800 units in the same time frame.
Closed-Loop Automation Line: Reliable and Consistent:Paired with a closed-loop automatic production line, the ZC1500 enables continuous material feeding, precise brick forming, automatic stacking, and minimal manual intervention. This fully synchronized system ensures steady output while maintaining product uniformity and reducing labor intensity. From raw material batching to final curing, every step is automated for efficiency and reliability.
Rich Manufacturing Heritage:With over two decades of manufacturing experience, ZCJK Group has built a strong presence across international markets. Operating three dedicated production facilities in China, the company continues to lead innovation in block-making technology. Their commitment to engineering excellence and quality control sets them apart in the global machinery industry.
Dedicated Support and Global Reach:ZCJK machines have been delivered to more than 110 countries, supported by localized after-sales teams, multilingual service personnel, and in-depth technical training. Whether you're based in Africa, Southeast Asia, or Eastern Europe, the company ensures rapid deployment and operational guidance.

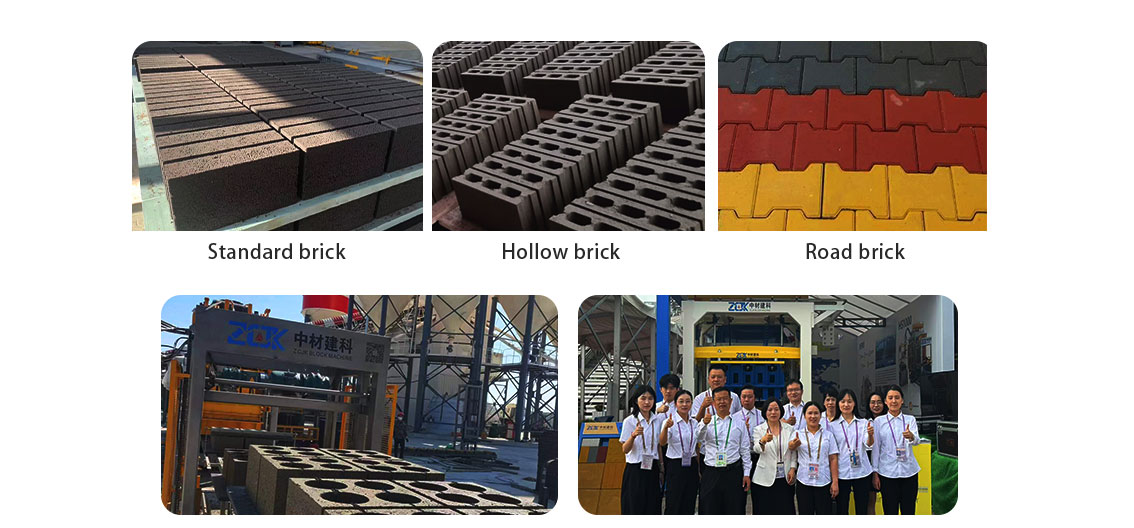

Capacity list:
Block/Brick Type | Brick Dimensions | pcs/pallet | Capacity(8-hour shift) |
Standard brick size | 240x115x53mm | 80 | 172800pcs |
Paving Brick size | 200x100x60mm | 54 | 77760pcs |
Paving brick size | 240x115x90mm | 40 | 76800pcs |
Hollow block size | 400x200x200mm | 15 | 28800pcs |
Integrating a ZC1500 machine with a fully automatic closed-loop system is a strategic choice for businesses seeking superior efficiency, lower production costs, and high-volume brick output. With quick mold changes and proven global support, ZCJK Group remains a top-tier partner for modern brick production needs.Additionally, the precision alignment system ensures that molds are accurately positioned every time, leading to consistent product quality and reduced trial time.ZCJK Group, with over 22 years in the brick machine industry and exports to 110+ countries, offers three manufacturing bases and reliable post-sale support for global customers.
