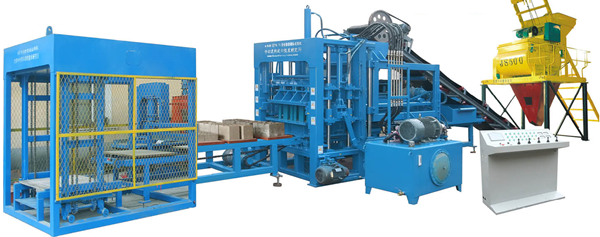

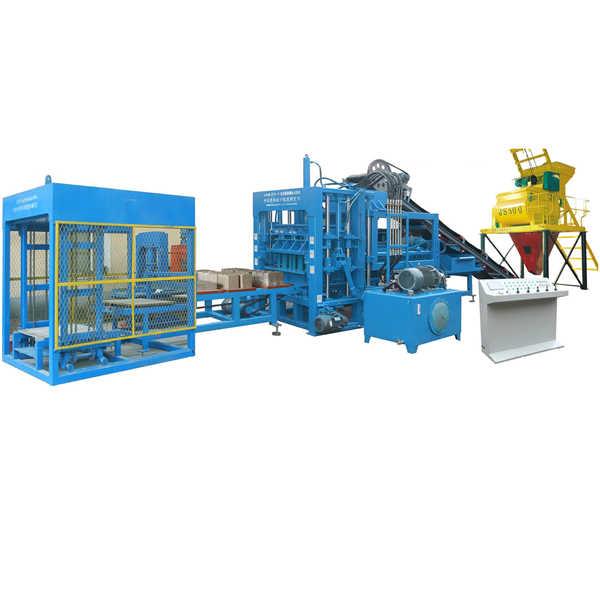

QTY6-15 Hydraulic Fully Automatic Block making Machine

Share to:

  • QTY6-15
  • ZCJK
Quantity:

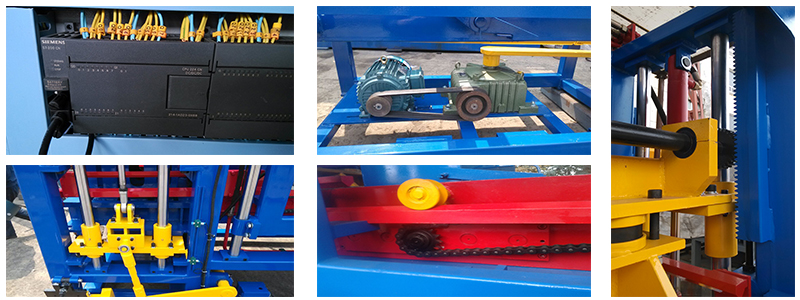

1.Crank-link mechanism is employed. It transmits the circular motion of crank into the straight reciprocating motion of the mobile frame, this ensures the pallet moving smoothly

QTY6-15 block making machine.jpg

2.The upper and lower slider are made of thick plates. The column sleeve and slider are connected by screw, which makes it convenient to change the copper bushing.

QTY6-15 block making machine price.jpg

3.Steel alloy components are firm and durable. 360 degree rotation feeding mechanism, which makes materials fa fast and distribute evenly.

QTY6-15 block making machine video.jpg

4.As for the movement parts of the pallet feeder, we use swing link. This transmits the circular motion of the swing stem into the straight reciprocating motion of the mobile frame. The pallet will uniformly accelerate and move smoothly, which makes it easy to operate.

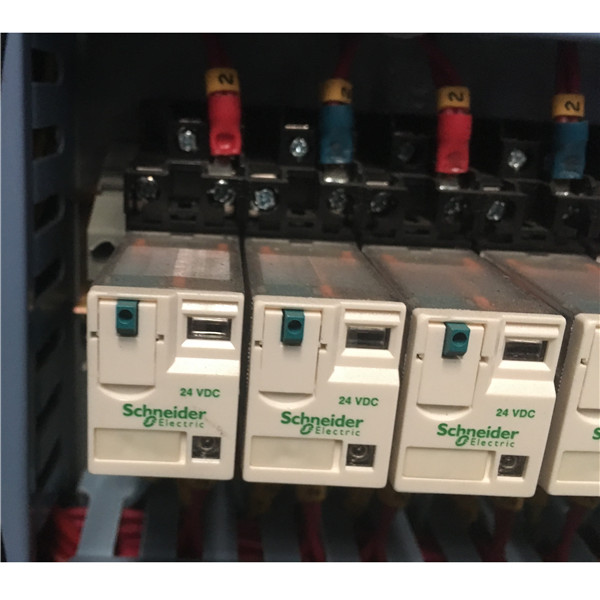

5.PLC and touching screen are from Siemens, German. One electronic cabin controls both the block making machine and the stacker, which makes it easy to operate and perform failure diagnosis.

QTY6-15 block making machine quotation.jpg

6.The hydraulic units are from Youshun, Taiwan, which ensures the good performance of the machine.

ZCJK block making machine.jpg

7.The machine frame is welded by using special thick-walled rectangle welding method. The transmission shaft and gears are made of alloy steel, which makes them much stronger and more durable.

8.The lifting motor of the stacker employs cone-form motors and the lifting chain uses 16A chains, which can bear weight up to 6T. The machine plate is welded by using special thick-walled rectangle welding method, which makes the machine plate more stable.

hollowblock making machine.jpg


Technology specification
Product capacity    Standard brick  240*115*53mm  36pcs/mould
Hollow brick   400*200*200mm  6pcs/mould
Paving brick    200*100*60mm   21pcs/mould
Cycle time 15-20s
Shift output
Standard brick  240*115*53mm   69120pcs/8h
Hollow brick   400*200*200mm  11520pcs/8h
Paving brick     200*100*60mm   40320pcs/8h
Vibrating force 70KN
power 39.9KW
Pallet dimension 940*830*25mm
weight 11.5T
Container required 1*40HQ+1*20GP
Items of investment
Items Quantity
QTY6-15 block making machine 1
Automatic brick conveyor 1
Automatic pallet feeder 1
Hydraulic unit 1
Control system (German Siemens) 1
Belt conveyer 1
JS500 mixer 1
Elevator/lowerator 1
Free mould 1
Manual hydraulic forklift 2
